8 Using the Data Record Interface
8.2.2.5

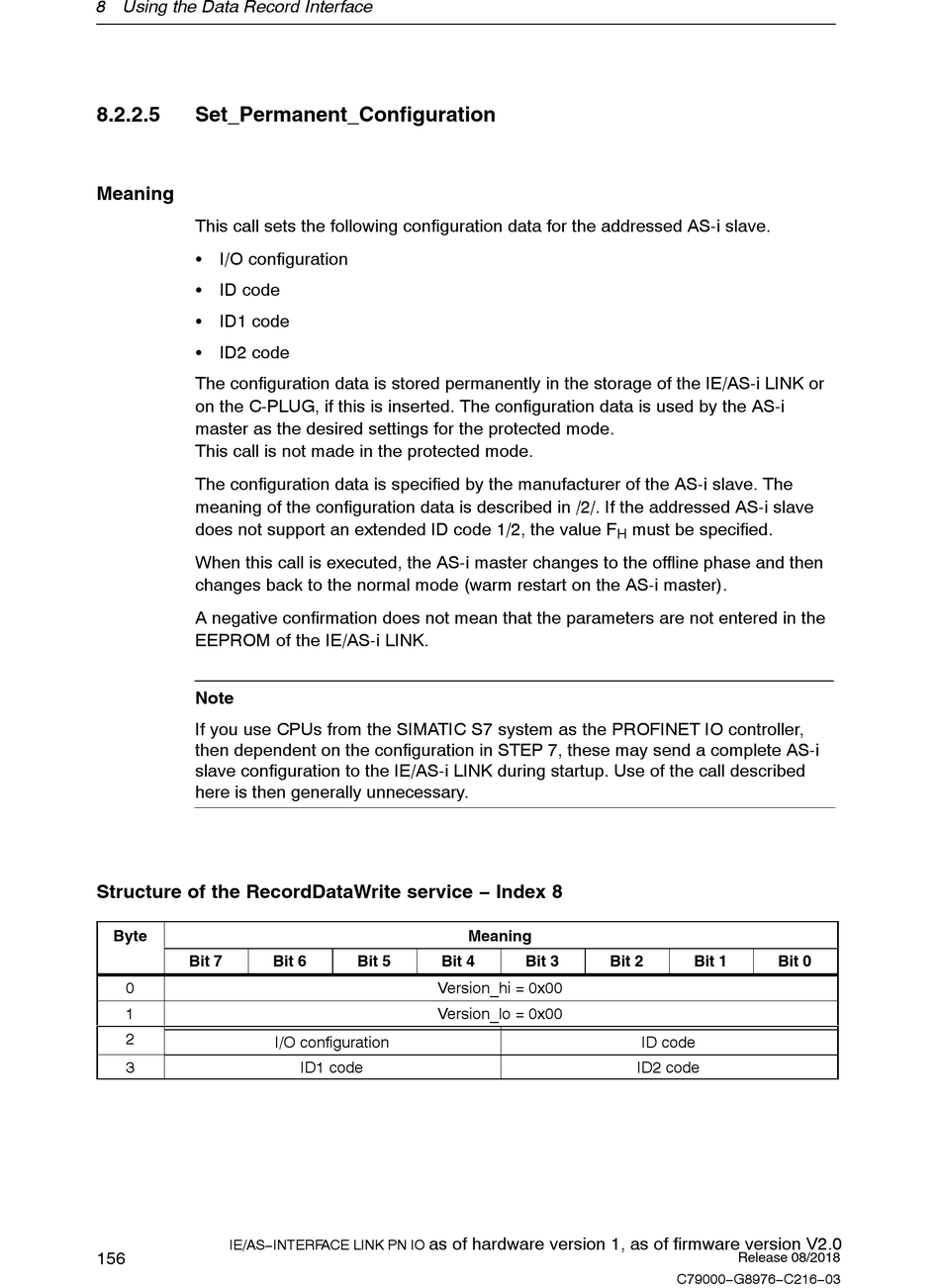

Set_Permanent_Configuration

Meaning
This call sets the following configuration data for the addressed AS-i slave.
S I/O configuration
S ID code
S ID1 code
S ID2 code
The configuration data is stored permanently in the storage of the IE/AS-i LINK or
on the C-PLUG, if this is inserted. The configuration data is used by the AS-i
master as the desired settings for the protected mode.
This call is not made in the protected mode.
The configuration data is specified by the manufacturer of the AS-i slave. The
meaning of the configuration data is described in /2/. If the addressed AS-i slave
does not support an extended ID code 1/2, the value F
When this call is executed, the AS-i master changes to the offline phase and then
changes back to the normal mode (warm restart on the AS-i master).
A negative confirmation does not mean that the parameters are not entered in the
EEPROM of the IE/AS-i LINK.
Note
If you use CPUs from the SIMATIC S7 system as the PROFINET IO controller,
then dependent on the configuration in STEP 7, these may send a complete AS-i
slave configuration to the IE/AS-i LINK during startup. Use of the call described
here is then generally unnecessary.
Structure of the RecordDataWrite service − Index 8
Byte
Bit 7
0
1
2
3
IE/AS−INTERFACE LINK PN IO
156
Bit 6 Bit 5 Bit 4
Version_hi = 0x00
Version_lo = 0x00
I/O configuration
ID1 code
as of hardware version 1, as of firmware version V2.0
must be specified.
H
Meaning
Bit 3 Bit 2
ID code
ID2 code
Bit 1 Bit 0
