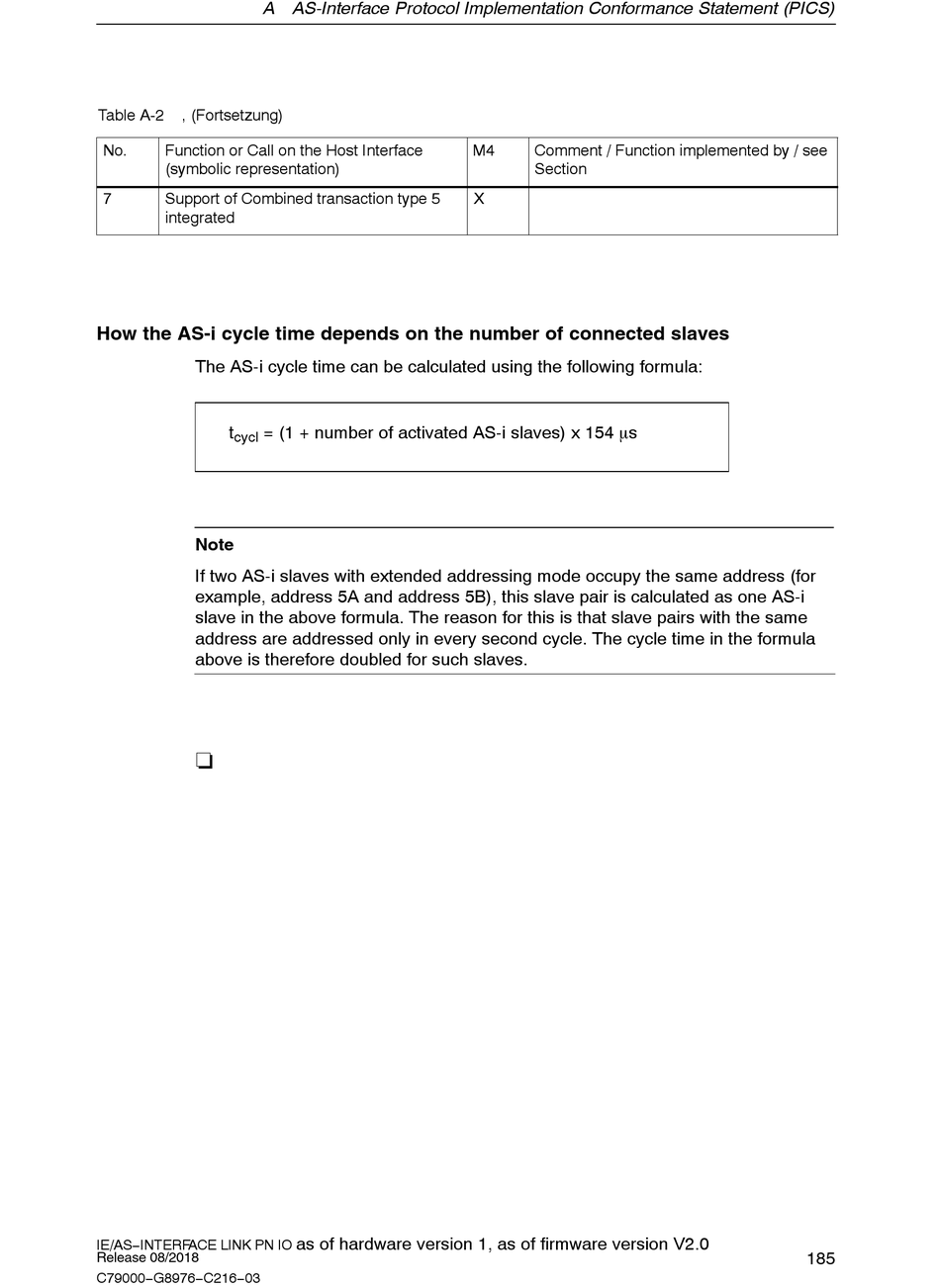

Siemens SIMATIC NET IE/AS-INTERFACE LINK PN IO Manual page 185

A AS-Interface Protocol Implementation Conformance Statement (PICS)
Table A-2 , (Fortsetzung)
No. Function or Call on the Host Interface
(symbolic representation)
7 Support of Combined transaction type 5
integrated
How the AS-i cycle time depends on the number of connected slaves
The AS-i cycle time can be calculated using the following formula:
t = (1 + number of activated AS-i slaves) x 154 ms
cycl
Note
If two AS-i slaves with extended addressing mode occupy the same address (for
example, address 5A and address 5B), this slave pair is calculated as one AS-i
slave in the above formula. The reason for this is that slave pairs with the same
address are addressed only in every second cycle. The cycle time in the formula
above is therefore doubled for such slaves.
-
IE/AS−INTERFACE LINK PN IO
Release 08/2018
C79000−G8976−C216−03
as of hardware version 1, as of firmware version V2.0
M4 Comment / Function implemented by / see
Section
X
