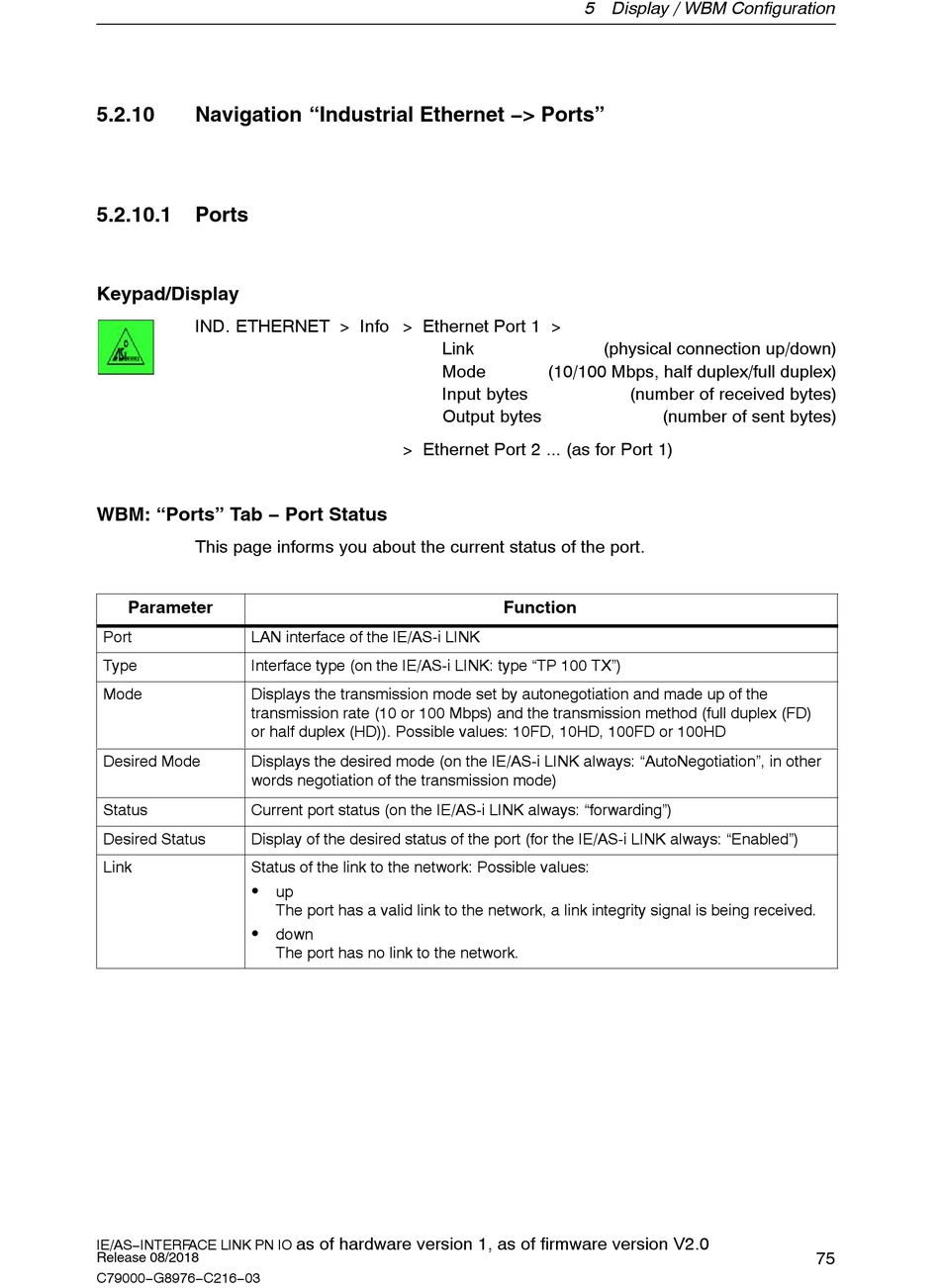

5.2.10 Navigation "Industrial Ethernet −> Ports"
5.2.10.1

Ports

Keypad/Display
IND. ETHERNET > Info > Ethernet Port 1 >
WBM: "Ports" Tab − Port Status
This page informs you about the current status of the port.
Parameter
Port LAN interface of the IE/AS-i LINK
Type Interface type (on the IE/AS-i LINK: type "TP 100 TX")
Mode Displays the transmission mode set by autonegotiation and made up of the
transmission rate (10 or 100 Mbps) and the transmission method (full duplex (FD)
or half duplex (HD)). Possible values: 10FD, 10HD, 100FD or 100HD
Desired Mode Displays the desired mode (on the IE/AS-i LINK always: "AutoNegotiation", in other
words negotiation of the transmission mode)
Status Current port status (on the IE/AS-i LINK always: "forwarding")
Desired Status Display of the desired status of the port (for the IE/AS-i LINK always: "Enabled")
Link Status of the link to the network: Possible values:
S
S
IE/AS−INTERFACE LINK PN IO
Release 08/2018
C79000−G8976−C216−03
Link
Mode
Input bytes
Output bytes
> Ethernet Port 2 ... (as for Port 1)
up
The port has a valid link to the network, a link integrity signal is being received.
down
The port has no link to the network.
as of hardware version 1, as of firmware version V2.0
5 Display / WBM Configuration
(physical connection up/down)
(10/100 Mbps, half duplex/full duplex)
(number of received bytes)
(number of sent bytes)
Function
75
