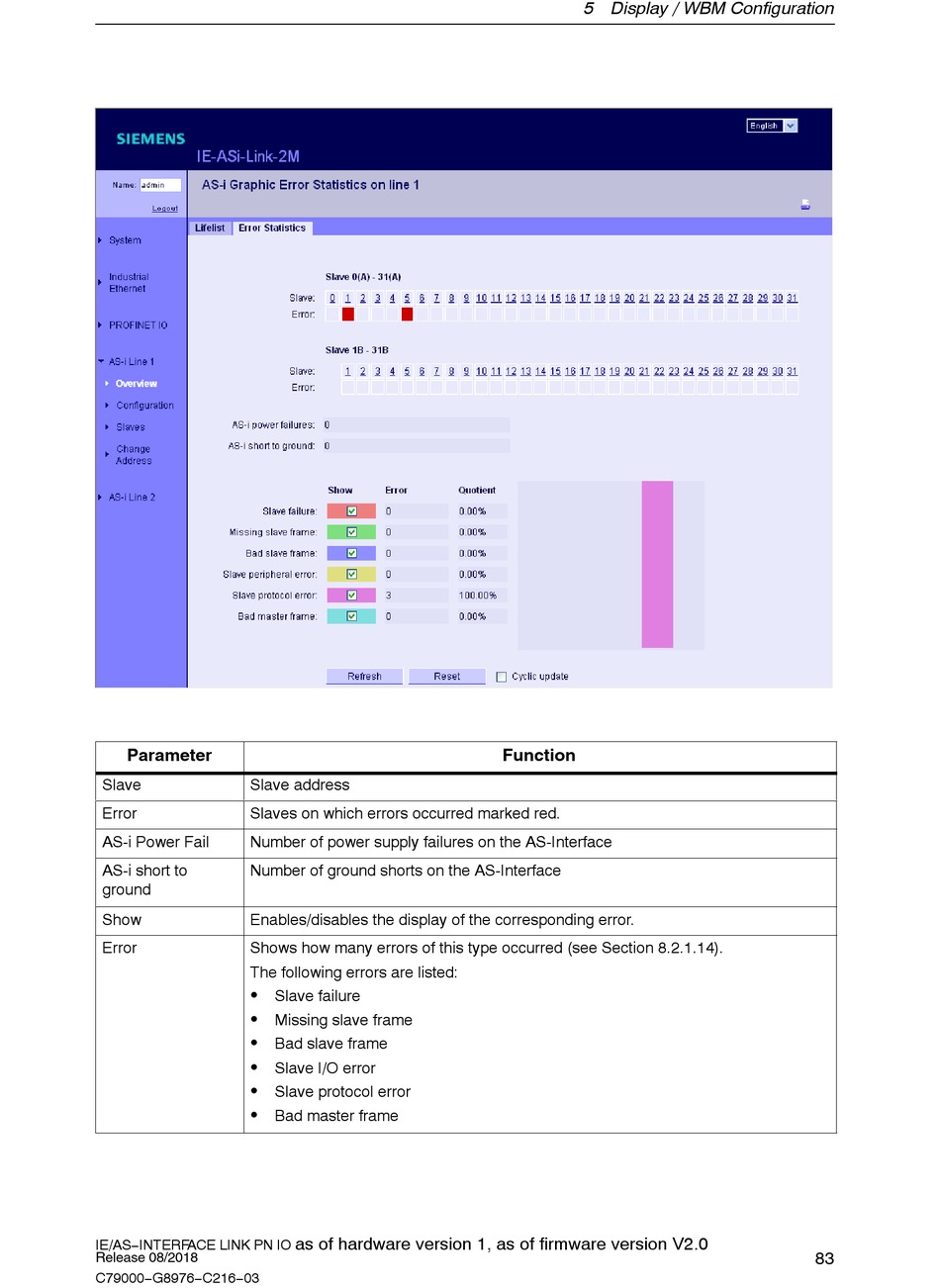

Siemens SIMATIC NET IE/AS-INTERFACE LINK PN IO Manual page 83

Parameter
Slave Slave address
Error Slaves on which errors occurred marked red.
AS-i Power Fail Number of power supply failures on the AS-Interface
AS-i short to Number of ground shorts on the AS-Interface
ground
Show Enables/disables the display of the corresponding error.
Error Shows how many errors of this type occurred (see Section 8.2.1.14).
The following errors are listed:
S
S
S
S
S
S
IE/AS−INTERFACE LINK PN IO
Release 08/2018
C79000−G8976−C216−03
Slave failure
Missing slave frame
Bad slave frame
Slave I/O error
Slave protocol error
Bad master frame
as of hardware version 1, as of firmware version V2.0
5 Display / WBM Configuration
Function
83
