6 Configuring with STEP 7 or a GSDML File
S "Configuration" tab
You set the configuration of the I/O module in this tab.

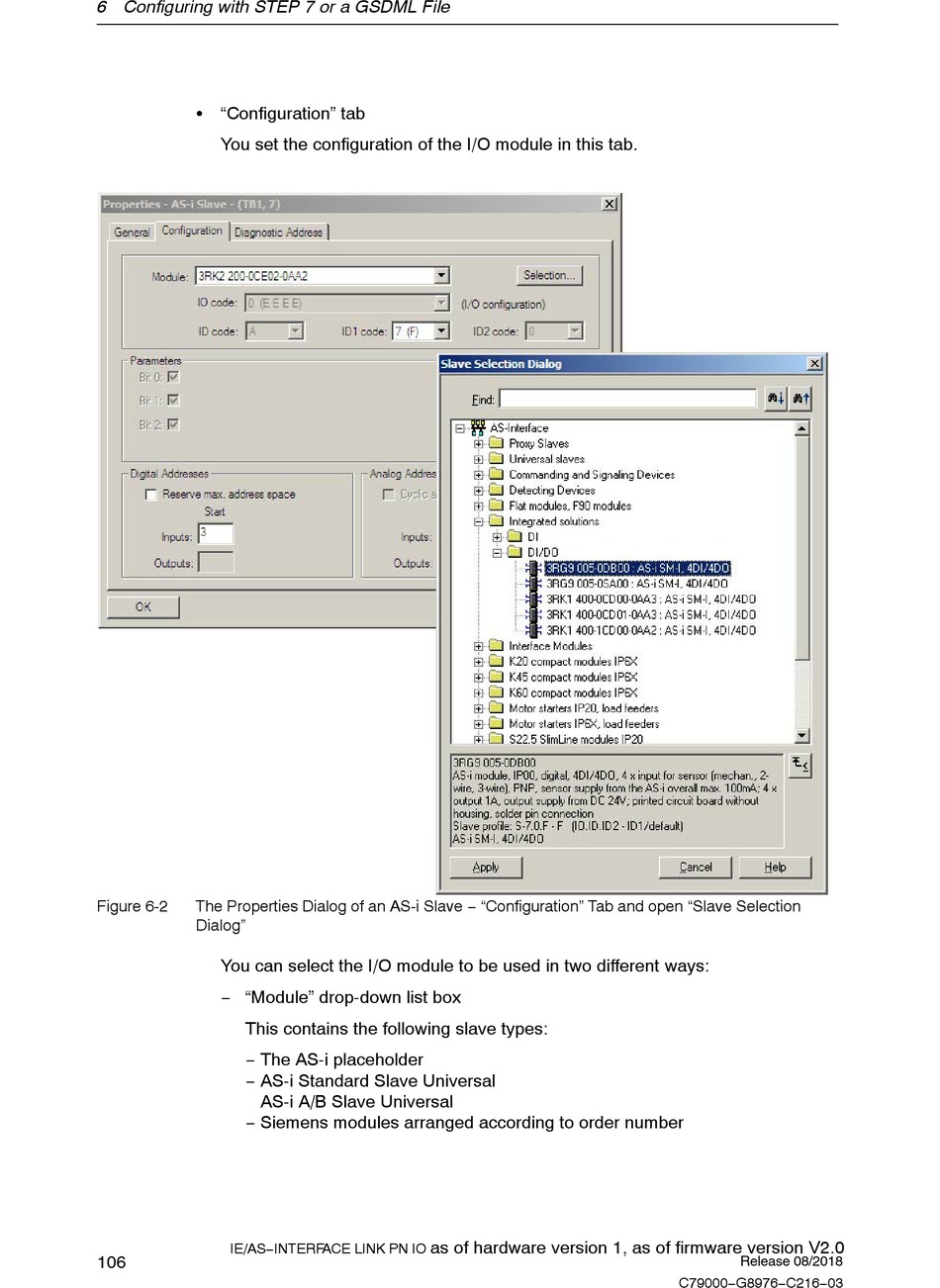

Figure 6-2 The Properties Dialog of an AS-i Slave − "Configuration" Tab and open "Slave Selection
Dialog"
You can select the I/O module to be used in two different ways:
− "Module" drop-down list box
This contains the following slave types:
− The AS-i placeholder
− AS-i Standard Slave Universal
AS-i A/B Slave Universal
− Siemens modules arranged according to order number
IE/AS−INTERFACE LINK PN IO
106
as of hardware version 1, as of firmware version V2.0
Release 08/2018
C79000−G8976−C216−03
