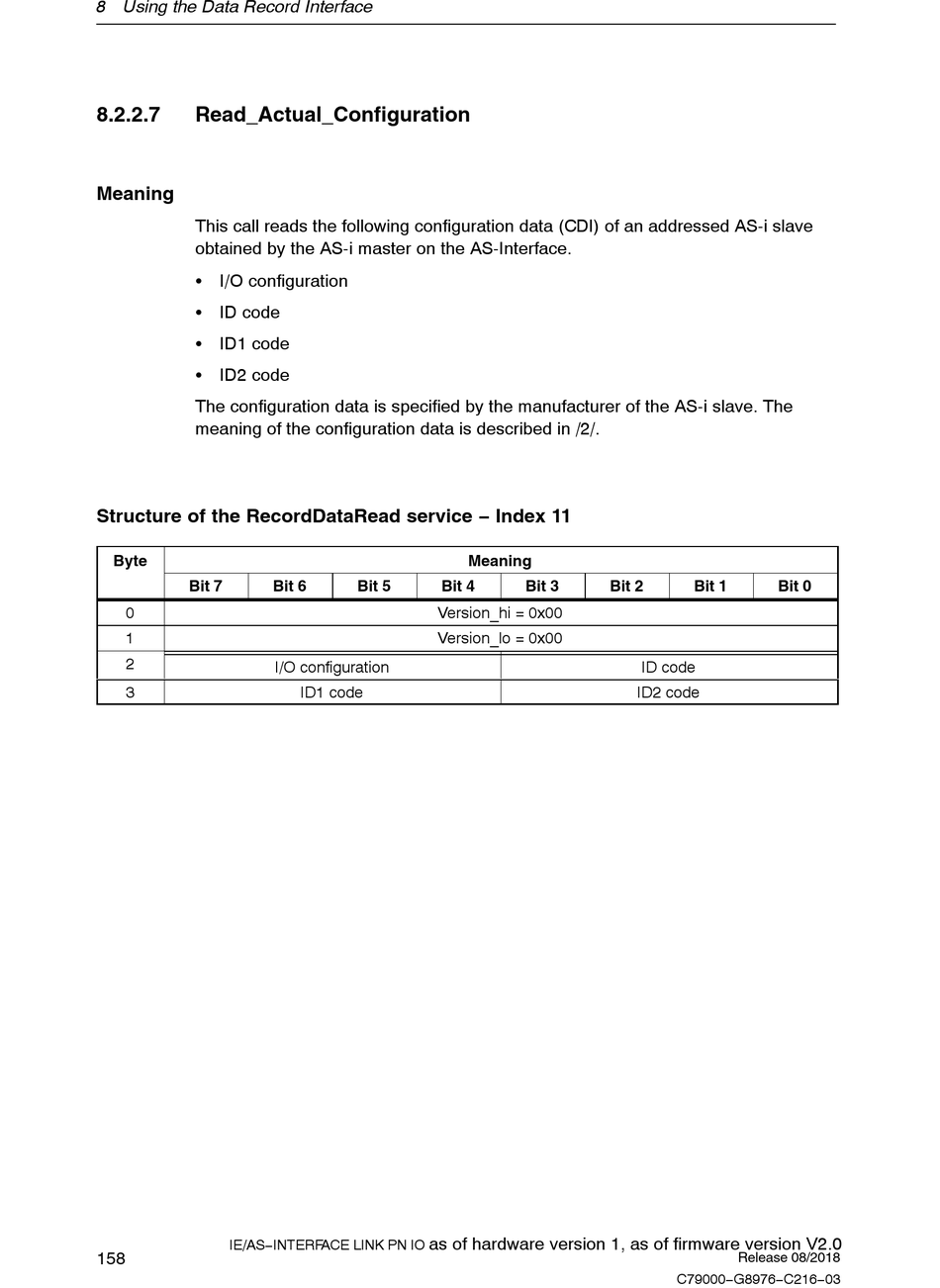

8 Using the Data Record Interface
8.2.2.7
Read_Actual_Configuration
Meaning
This call reads the following configuration data (CDI) of an addressed AS-i slave
obtained by the AS-i master on the AS-Interface.
S I/O configuration
S ID code
S ID1 code
S ID2 code
The configuration data is specified by the manufacturer of the AS-i slave. The
meaning of the configuration data is described in /2/.
Structure of the RecordDataRead service − Index 11
Byte
Bit 7
0
1
2
3
IE/AS−INTERFACE LINK PN IO
158
Bit 6
Bit 5
Bit 4
Version_hi = 0x00
Version_lo = 0x00
I/O configuration
ID1 code
as of hardware version 1, as of firmware version V2.0
Meaning
Bit 3
Bit 2
ID code
ID2 code
Bit 1
Bit 0
Release 08/2018
C79000−G8976−C216−03
