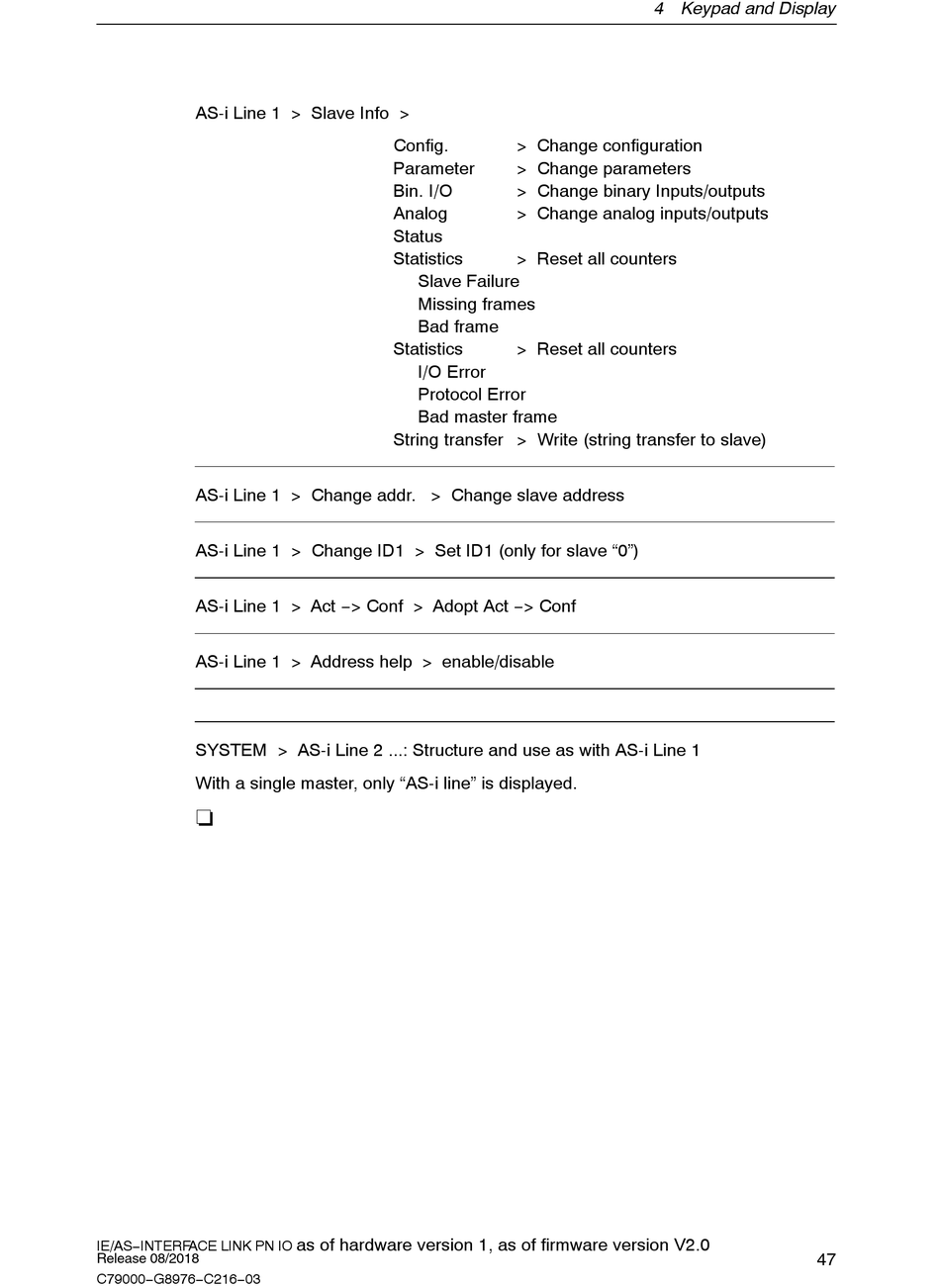

Siemens SIMATIC NET IE/AS-INTERFACE LINK PN IO Manual page 47

AS-i Line 1 > Slave Info >
AS-i Line 1 > Change addr. > Change slave address
AS-i Line 1 > Change ID1 > Set ID1 (only for slave "0")
AS-i Line 1 > Act −> Conf > Adopt Act −> Conf
AS-i Line 1 > Address help > enable/disable
SYSTEM > AS-i Line 2 ...: Structure and use as with AS-i Line 1
With a single master, only "AS-i line" is displayed.
-
IE/AS−INTERFACE LINK PN IO
Release 08/2018
C79000−G8976−C216−03
Config.
Parameter
Bin. I/O
Analog
Status
Statistics
Slave Failure
Missing frames
Bad frame
Statistics
I/O Error
Protocol Error
Bad master frame
String transfer > Write (string transfer to slave)
as of hardware version 1, as of firmware version V2.0
4 Keypad and Display
> Change configuration
> Change parameters
> Change binary Inputs/outputs
> Change analog inputs/outputs
> Reset all counters
> Reset all counters
