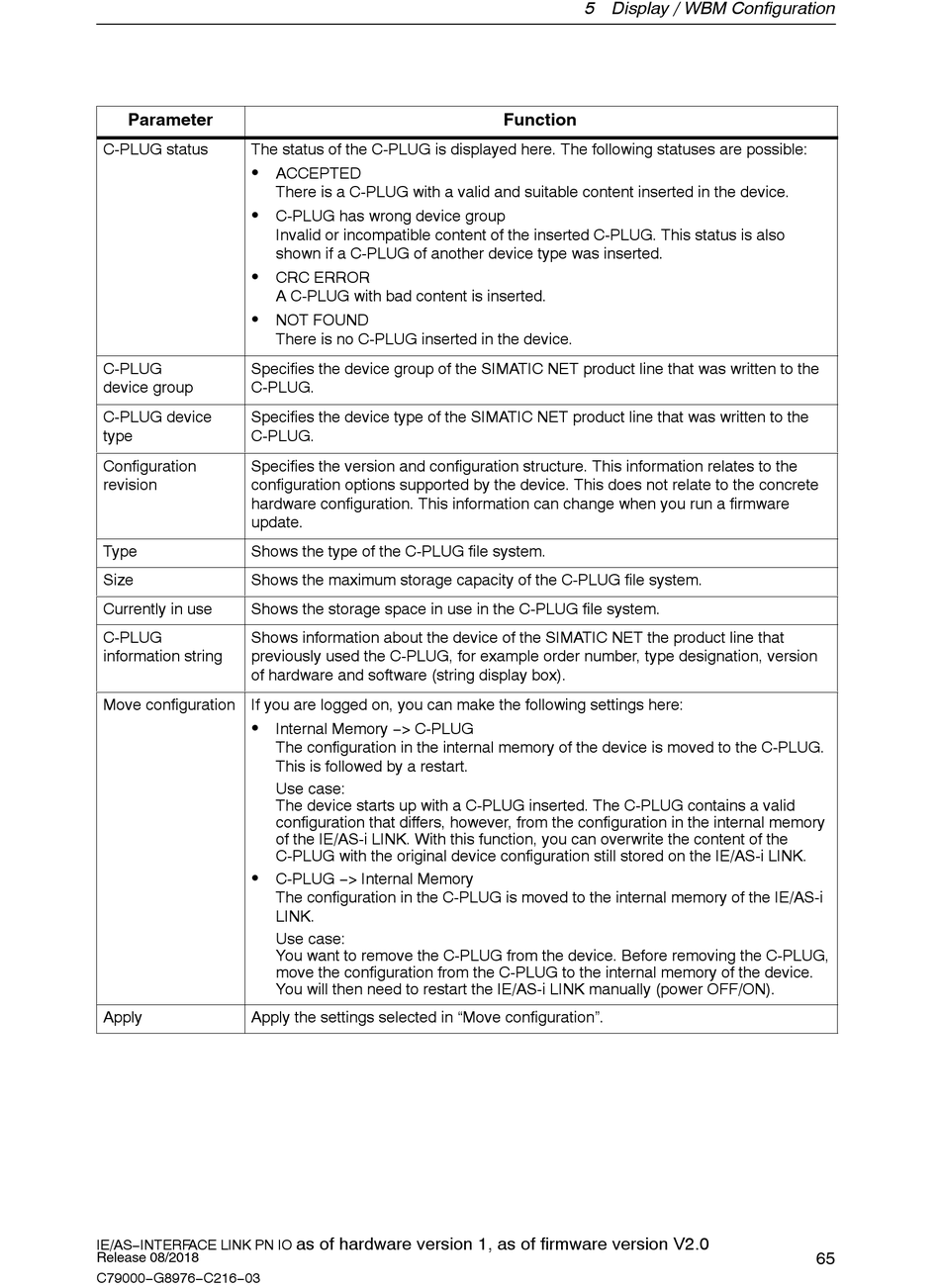

Siemens SIMATIC NET IE/AS-INTERFACE LINK PN IO Manual page 65

Parameter
C-PLUG status The status of the C-PLUG is displayed here. The following statuses are possible:
S
S
S
S
C-PLUG Specifies the device group of the SIMATIC NET product line that was written to the
device group C-PLUG.
C-PLUG device Specifies the device type of the SIMATIC NET product line that was written to the
type C-PLUG.
Configuration Specifies the version and configuration structure. This information relates to the
revision configuration options supported by the device. This does not relate to the concrete
hardware configuration. This information can change when you run a firmware
update.
Type Shows the type of the C-PLUG file system.
Size Shows the maximum storage capacity of the C-PLUG file system.
Currently in use Shows the storage space in use in the C-PLUG file system.
C-PLUG Shows information about the device of the SIMATIC NET the product line that
information string previously used the C-PLUG, for example order number, type designation, version
of hardware and software (string display box).
Move configuration If you are logged on, you can make the following settings here:
S
S
Apply Apply the settings selected in "Move configuration".
IE/AS−INTERFACE LINK PN IO
Release 08/2018
C79000−G8976−C216−03
ACCEPTED
There is a C-PLUG with a valid and suitable content inserted in the device.
C-PLUG has wrong device group
Invalid or incompatible content of the inserted C-PLUG. This status is also
shown if a C-PLUG of another device type was inserted.
CRC ERROR
A C-PLUG with bad content is inserted.
NOT FOUND
There is no C-PLUG inserted in the device.
Internal Memory −> C-PLUG
The configuration in the internal memory of the device is moved to the C-PLUG.
This is followed by a restart.
Use case:
The device starts up with a C-PLUG inserted. The C-PLUG contains a valid
configuration that differs, however, from the configuration in the internal memory
of the IE/AS-i LINK. With this function, you can overwrite the content of the
C-PLUG with the original device configuration still stored on the IE/AS-i LINK.
C-PLUG −> Internal Memory
The configuration in the C-PLUG is moved to the internal memory of the IE/AS-i
LINK.
Use case:
You want to remove the C-PLUG from the device. Before removing the C-PLUG,
move the configuration from the C-PLUG to the internal memory of the device.
You will then need to restart the IE/AS-i LINK manually (power OFF/ON).
as of hardware version 1, as of firmware version V2.0
