C-Plug (Configuration Plug) - Siemens SIMATIC NET IE/AS-INTERFACE LINK PN IO Manual

1 Technical Description, Installation Guidelines, Operation
1.8

C-PLUG (Configuration Plug)

Area of Application
The C-PLUG (order number: 6GK1 900-0AB00) is an optional exchangeable
medium for saving the configuration and project engineering data of the basic
device (IE/AS-i LINK) and the AS-i slaves.
When powered down, the C-PLUG retains all data permanently. This means that
configuration data remains available when a basic device is replaced (module
replacement without PG is therefore possible).
The C-PLUG is accessible from the top of the housing.
The IE/AS-i LINK has internal memory for permanent storage of the configuration
data of the basic device and the AS-i slaves. Replacing a module without a PG is,
however, possible only with the C-PLUG.
Inserting in the C-PLUG Slot
The slot for the C-PLUG is on the top panel of the device.
To insert the C-PLUG, the cover of the receptacle must be removed. The C-PLUG
is inserted in the receptacle. The cover must then be replaced over the receptacle
and closed correctly.
Notice
The C-PLUG may only be inserted or removed when the power is off!

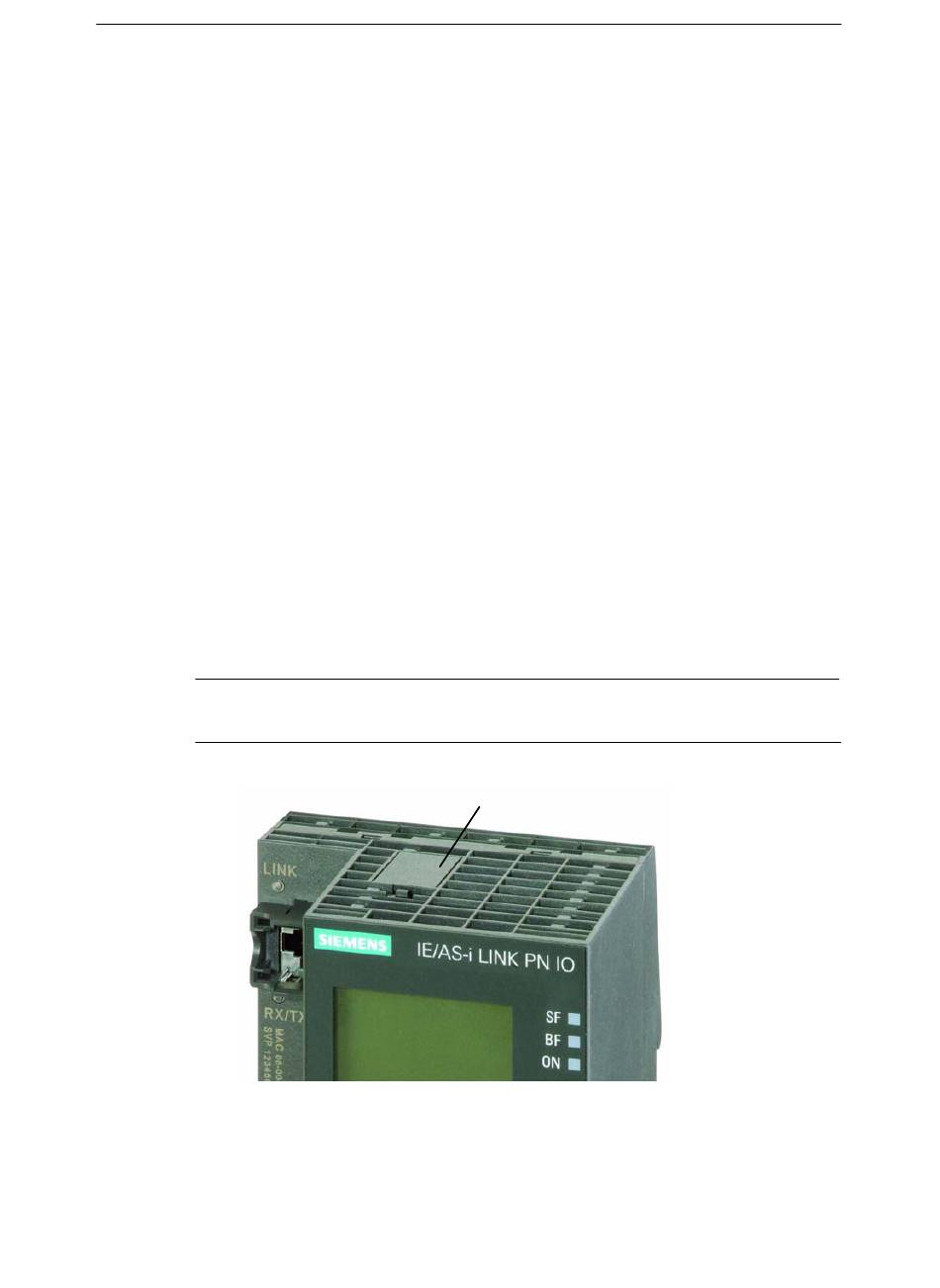

Figure 1-4 Position of the C-PLUG (removing the C-PLUG from the device with a screwdriver)
IE/AS−INTERFACE LINK PN IO
24
Cover of the receptacle
for the C-PLUG
