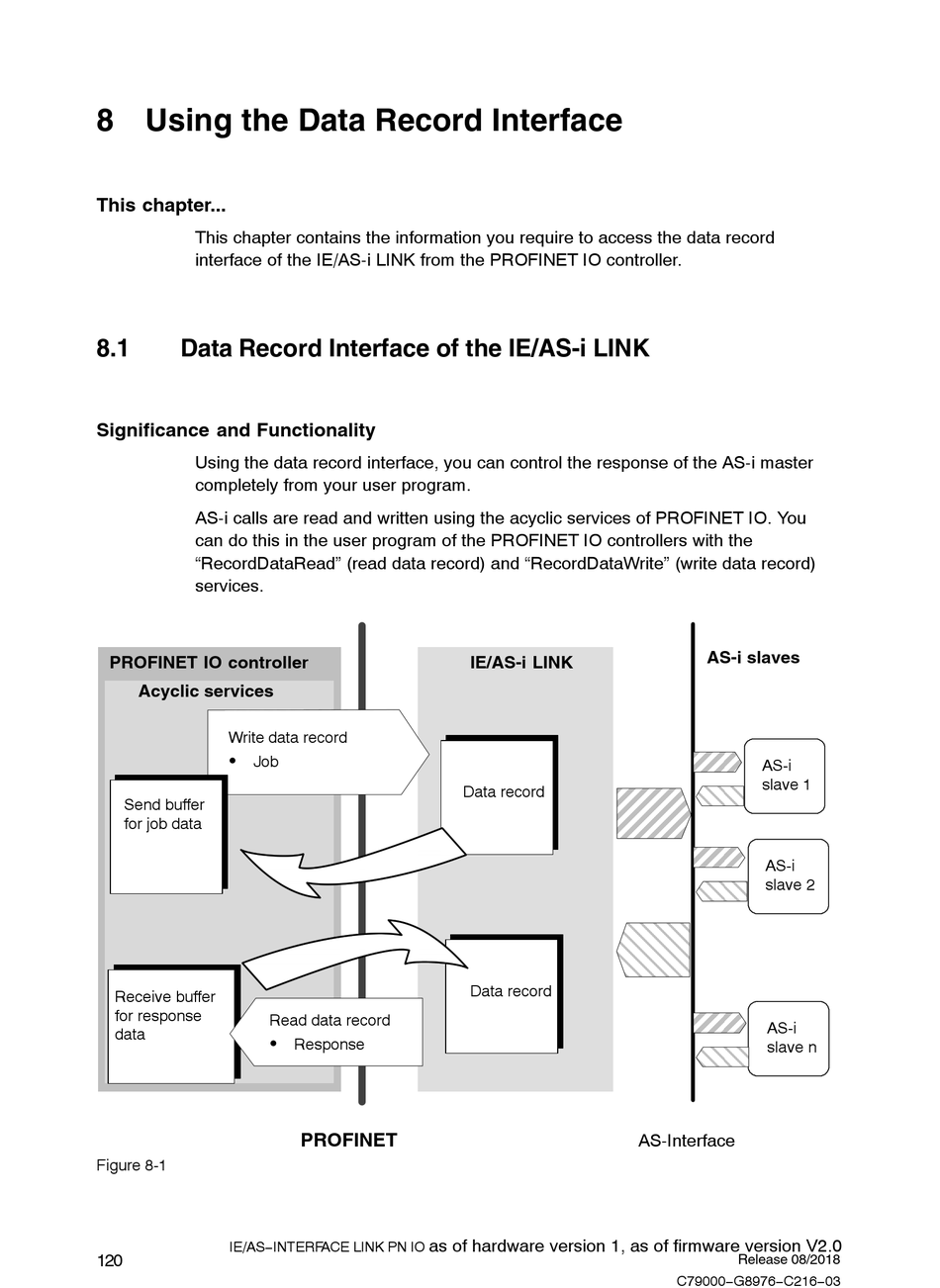

8 Using the Data Record Interface

This chapter...
This chapter contains the information you require to access the data record
interface of the IE/AS-i LINK from the PROFINET IO controller.
8.1

Data Record Interface of the IE/AS-i LINK

Significance and Functionality
Using the data record interface, you can control the response of the AS-i master
completely from your user program.
AS-i calls are read and written using the acyclic services of PROFINET IO. You
can do this in the user program of the PROFINET IO controllers with the
"RecordDataRead" (read data record) and "RecordDataWrite" (write data record)
services.
PROFINET IO controller
Acyclic services
Write data record
S
Job
Send buffer
for job data
Receive buffer
for response
Read data record
data
S
Figure 8-1
IE/AS−INTERFACE LINK PN IO
120
Data record
Response
PROFINET
as of hardware version 1, as of firmware version V2.0
IE/AS-i LINK
Í Í Í Í
Í Í Í Í
Í Í Í Í
Î Î Î Î
Î Î Î Î
Î Î Î Î
Data record
AS-Interface
AS-i slaves
Í Í Í
AS-i
Í Í Í
slave 1
Î Î Î
Í Í Í
AS-i
Î Î Î Í Í Í
slave 2
Î Î Î
Í Í Í
AS-i
Î Î Î Í Í Í
slave n
Î Î Î
