1 Technical Description, Installation Guidelines, Operation
1.7
Connection Elements
Connectors
The IE/AS-i LINK has the following connectors:
S Two separate connectors for the AS-i cable (on double master)
S One connector for alternative power supply 24 V DC (optional) and functional
earthing
S Two RJ-45 LAN connectors as independent switch ports
LAN
connector 1
LAN
connector 2

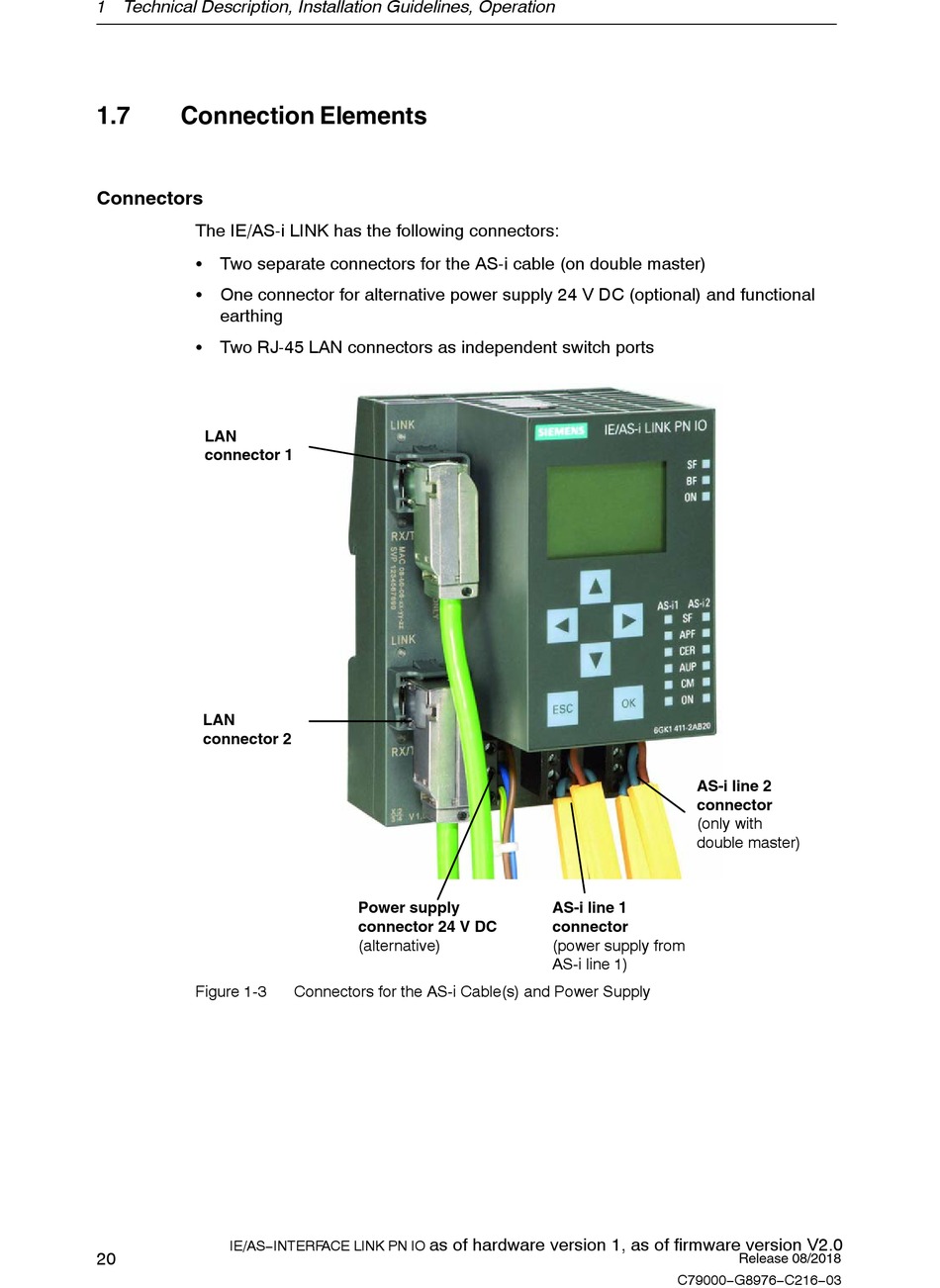

Figure 1-3
IE/AS−INTERFACE LINK PN IO
20
Power supply
connector 24 V DC
(alternative)
Connectors for the AS-i Cable(s) and Power Supply
as of hardware version 1, as of firmware version V2.0
AS-i line 2
connector
(only with
double master)
AS-i line 1
connector
(power supply from
AS-i line 1)
C79000−G8976−C216−03
Release 08/2018
