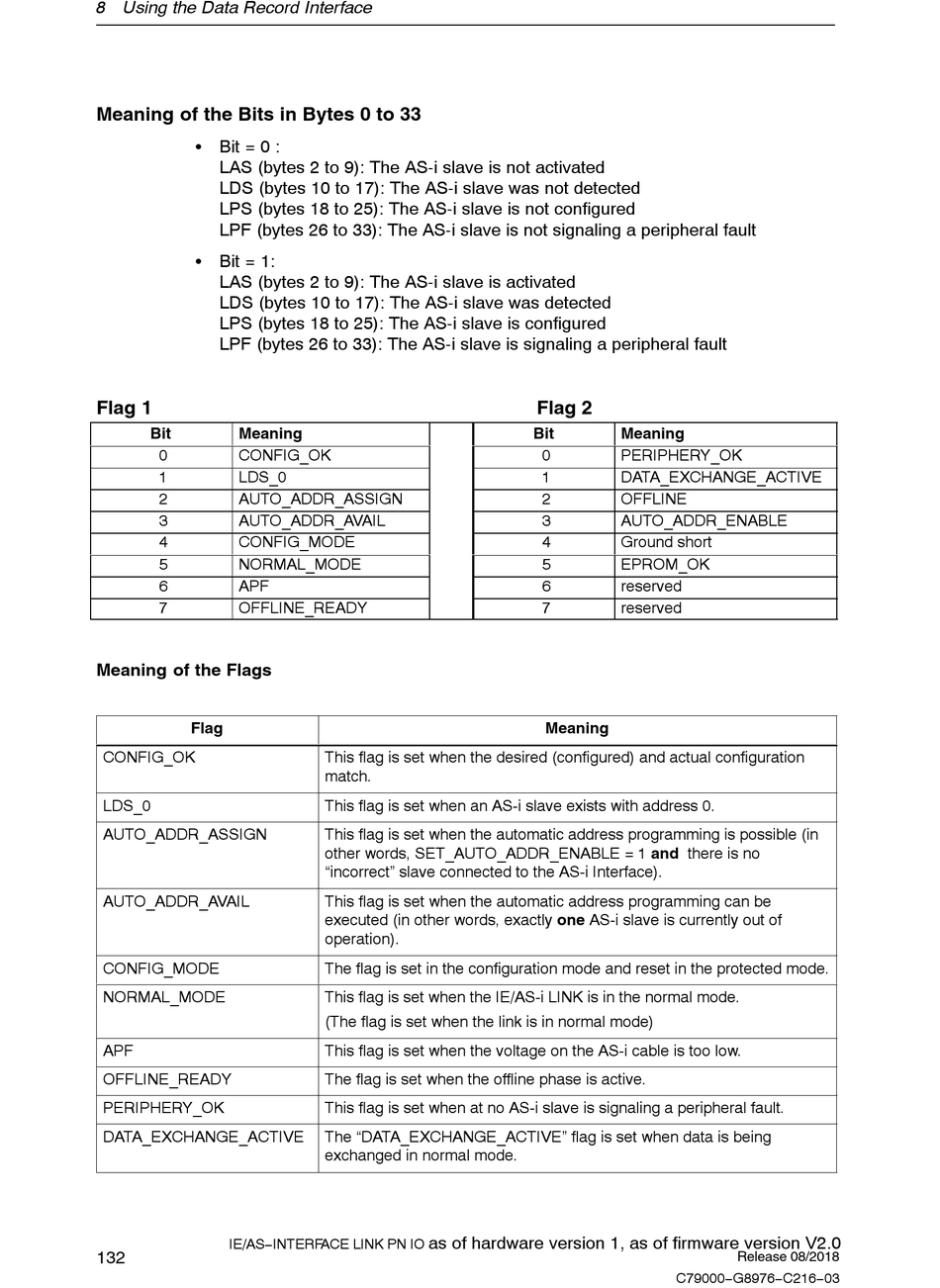

Siemens SIMATIC NET IE/AS-INTERFACE LINK PN IO Manual page 132

8 Using the Data Record Interface
Meaning of the Bits in Bytes 0 to 33
S Bit = 0 :
LAS (bytes 2 to 9): The AS-i slave is not activated
LDS (bytes 10 to 17): The AS-i slave was not detected
LPS (bytes 18 to 25): The AS-i slave is not configured
LPF (bytes 26 to 33): The AS-i slave is not signaling a peripheral fault
S Bit = 1:
LAS (bytes 2 to 9): The AS-i slave is activated
LDS (bytes 10 to 17): The AS-i slave was detected
LPS (bytes 18 to 25): The AS-i slave is configured
LPF (bytes 26 to 33): The AS-i slave is signaling a peripheral fault
Flag 1
Bit Meaning
0 CONFIG_OK
1 LDS_0
2 AUTO_ADDR_ASSIGN
3 AUTO_ADDR_AVAIL
4 CONFIG_MODE
5 NORMAL_MODE
6 APF
7 OFFLINE_READY
Meaning of the Flags
Flag
CONFIG_OK
LDS_0
AUTO_ADDR_ASSIGN
AUTO_ADDR_AVAIL
CONFIG_MODE
NORMAL_MODE
APF
OFFLINE_READY
PERIPHERY_OK
DATA_EXCHANGE_ACTIVE
IE/AS−INTERFACE LINK PN IO
132
This flag is set when the desired (configured) and actual configuration
match.
This flag is set when an AS-i slave exists with address 0.
This flag is set when the automatic address programming is possible (in
other words, SET_AUTO_ADDR_ENABLE = 1 and there is no
"incorrect" slave connected to the AS-i Interface).
This flag is set when the automatic address programming can be
executed (in other words, exactly one AS-i slave is currently out of
operation).
The flag is set in the configuration mode and reset in the protected mode.
This flag is set when the IE/AS-i LINK is in the normal mode.
(The flag is set when the link is in normal mode)
This flag is set when the voltage on the AS-i cable is too low.
The flag is set when the offline phase is active.
This flag is set when at no AS-i slave is signaling a peripheral fault.
The "DATA_EXCHANGE_ACTIVE" flag is set when data is being
exchanged in normal mode.
as of hardware version 1, as of firmware version V2.0
Flag 2
Bit Meaning
0 PERIPHERY_OK
1 DATA_EXCHANGE_ACTIVE
2 OFFLINE
3 AUTO_ADDR_ENABLE
4 Ground short
5 EPROM_OK
6 reserved
7 reserved
Meaning
