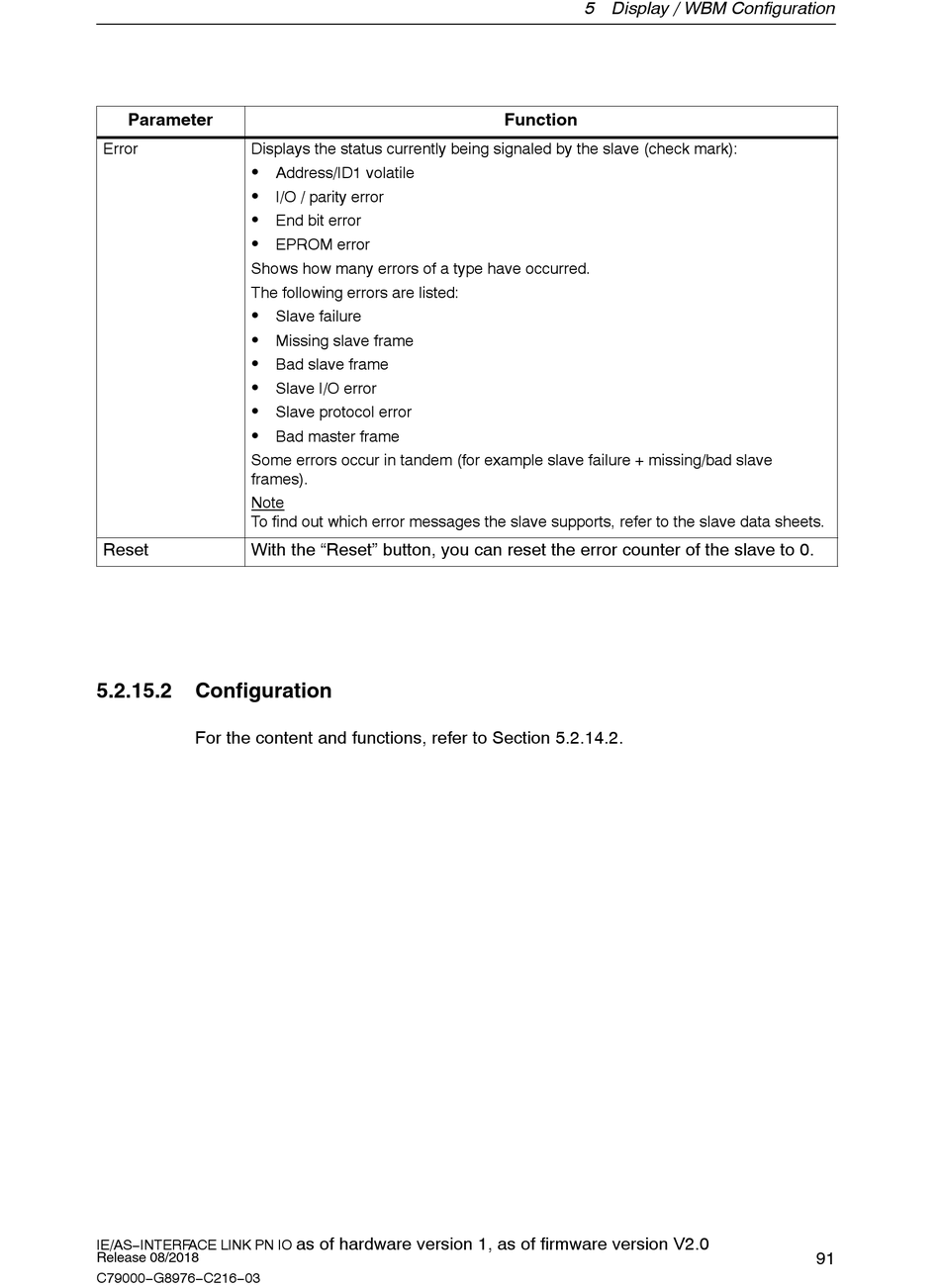

Parameter
Error
Displays the status currently being signaled by the slave (check mark):
S
S
S
S
Shows how many errors of a type have occurred.
The following errors are listed:
S
S
S
S
S
S
Some errors occur in tandem (for example slave failure + missing/bad slave
frames).
Note
To find out which error messages the slave supports, refer to the slave data sheets.
Reset
With the "Reset" button, you can reset the error counter of the slave to 0.
5.2.15.2
Configuration
For the content and functions, refer to Section 5.2.14.2.
IE/AS−INTERFACE LINK PN IO
Release 08/2018
C79000−G8976−C216−03
Address/ID1 volatile
I/O / parity error
End bit error
EPROM error
Slave failure
Missing slave frame
Bad slave frame
Slave I/O error
Slave protocol error
Bad master frame
as of hardware version 1, as of firmware version V2.0
