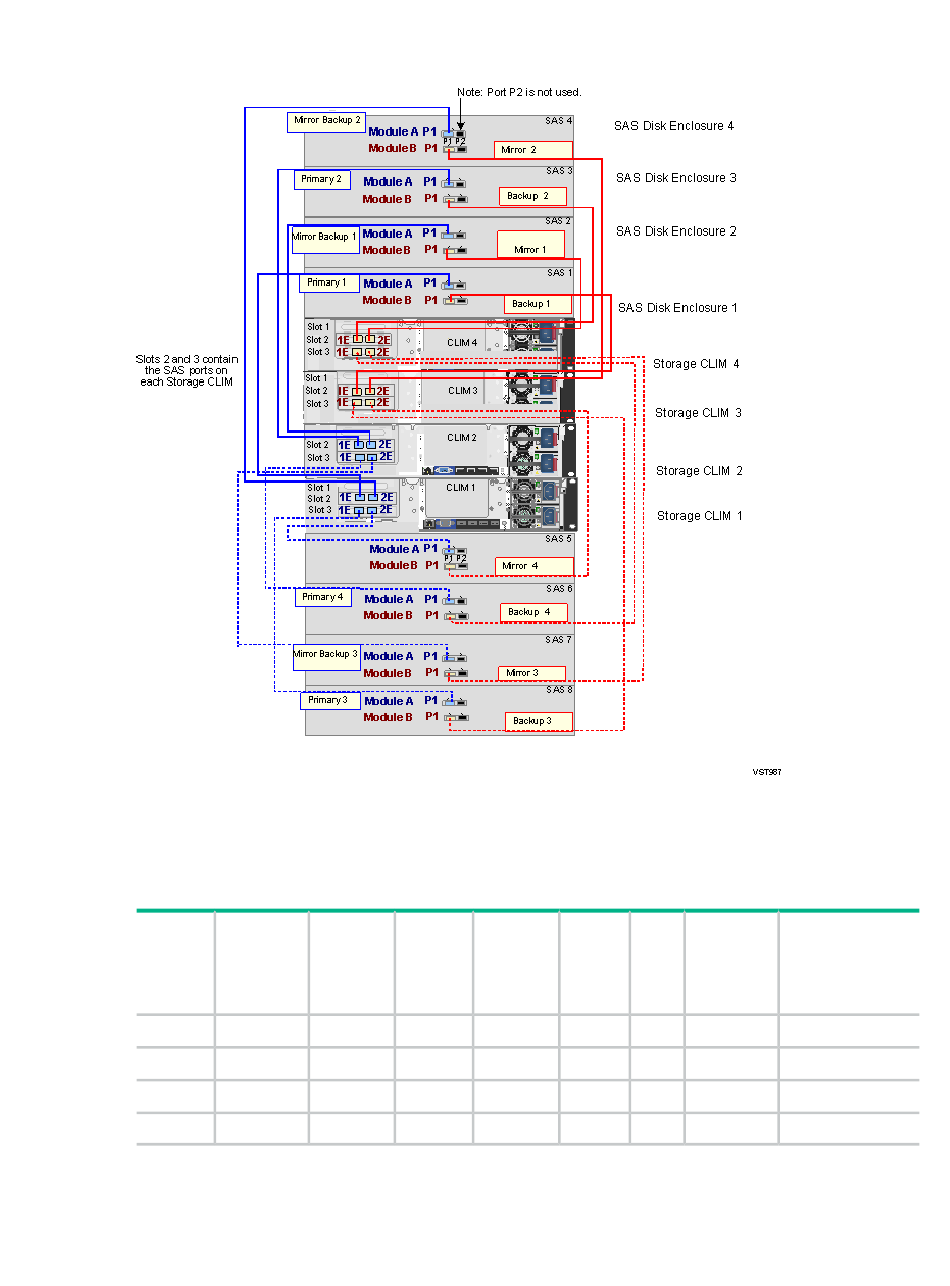

Figure 27 Four DL380p Gen8 Storage CLIMs, Eight M8381-25 SAS Disk Enclosure
Configuration
This table lists the Storage CLIM, LUN, and bay identification for the factory-default system disk
locations in the configuration of four DL380p Gen8 Storage CLIMs and eight M8381-25 SAS disk
enclosures. In this case, $SYSTEM, $DSMSCM, $AUDIT, and OSS are configured as mirrored
SAS disk volumes:
Disk Primary Backup
Volume CLIM CLIM
Name
$SYSTEM 100.2.5.3.1 100.2.5.4.1
$DSMSCM 100.2.5.3.1 100.2.5.4.1
$AUDIT 100.2.5.3.1 100.2.5.4.1
$OSS 100.2.5.3.1 100.2.5.4.1
Mirror Mirror-Backup Primay
CLIM CLIM LUN
100.2.5.4.3 100.2.5.3.3 101
100.2.5.4.3 100.2.5.3.3 102
100.2.5.4.3 100.2.5.3.3 103
100.2.5.4.3 100.2.5.3.3 104
Mirror Primary Mirror Disk
LUN Disk Bay in Location in Mirror
Primary SAS Enclosure
SAS
Enclosure
101 1 1
102 2 2
103 3 3
104 4 4
