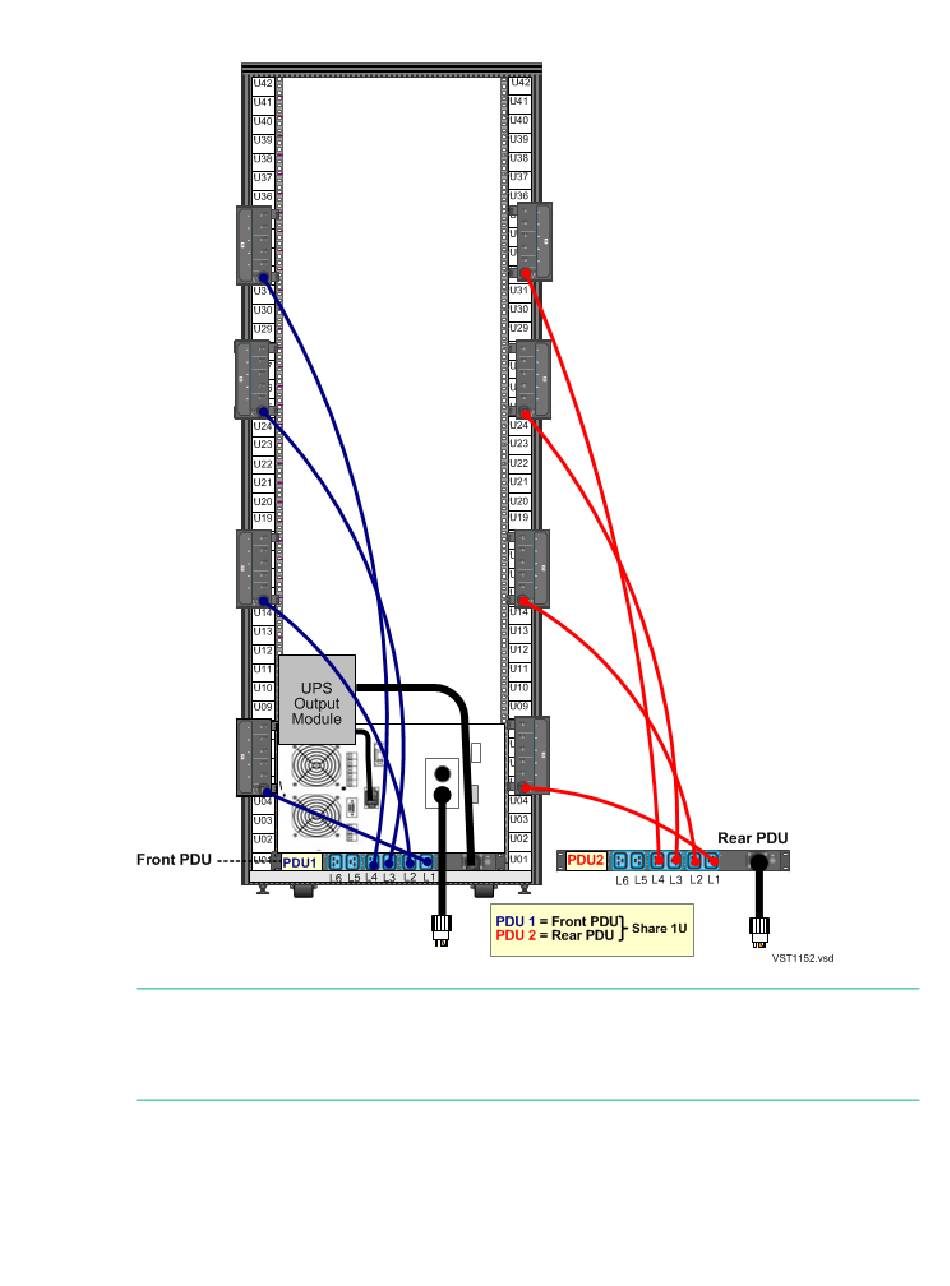

Figure 10 Intelligent PDU Connections (With Three-Phase UPS)
NOTE: The following illustrations of modular PDU connections show single-phase modular
PDU cores with four outlets. In three-phase installations, the modular PDU cores have six outlets
(L1 through L6).
Also, 36U racks with modular PDUs have only three extension bars on each side.
Power Distribution for NS2100 Systems 47
