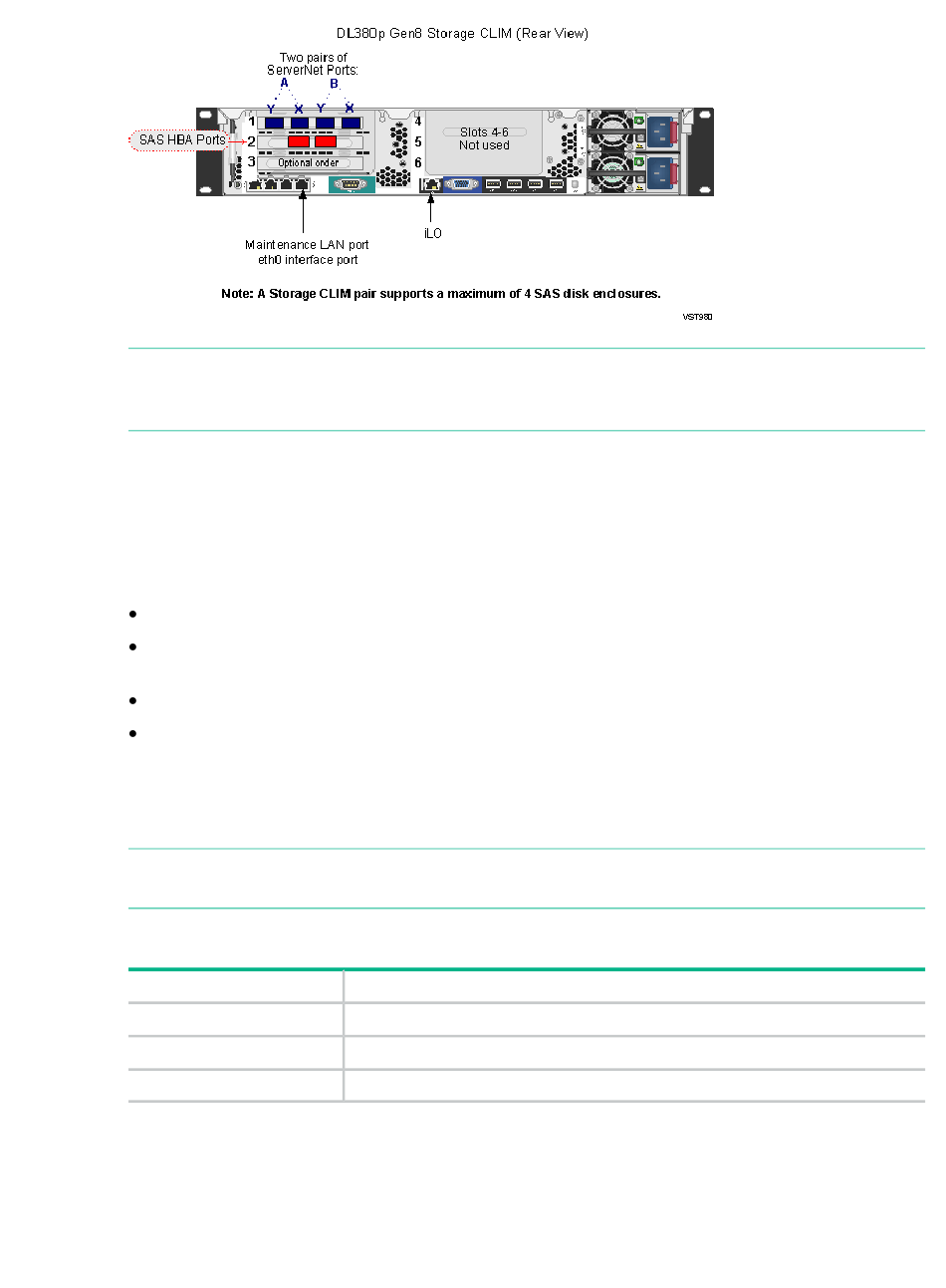

NOTE: The Storage CLIM uses the Cluster I/O Protocols (CIP) subsystem. For more information
about the CIP subsystem, refer to the Cluster I/O Protocols (CIP) Configuration and Management
Manual.

IP CLuster I/O Module (CLIM) (Optional)

The IP CLIM is a rack-mounted server that is part of some NS2100 system configurations. For
RVU requirements for DL380 G6 and DL380p Gen8 IP CLIMs, see
system can have 0, 1, or 2 IP CLIMs. The IP CLIM connects to the VIO enclosure and functions
as a ServerNet Ethernet adapter providing HPE standard Gigabit Ethernet Network Interface
Cards (NICs) to implement one of these IP CLIM configurations:
"DL380 G6 IP CLIM Option 1 — Five Ethernet Copper Ports" (page 19)
"DL380 G6 IP CLIM Option 2 — Three Ethernet Copper and Two Ethernet Optical Ports"
(page 20)
"DL380p Gen8 IP CLIM Option 1 — Five Ethernet Copper Ports" (page 20)
"DL380p Gen8 IP CLIM Option 2 — Three Ethernet Copper and Two Ethernet Optical Ports"
(page 21)
These illustrations show the Ethernet interfaces and ServerNet fabric connections on the DL380
G6 and DL380p Gen8 IP CLIM with the IP CLIM option 1 and option 2 configurations. For
illustrations of the fronts of these CLIMs, see
NOTE: All CLIMs use the Cluster I/O Protocols (CIP) subsystem. For more information about
the CIP subsystem, see the Cluster I/O Protocols (CIP) Configuration and Management Manual.
DL380 G6 IP CLIM Option 1 — Five Ethernet Copper Ports
IP CLIM Slot
Slot 1
Slot 2
Slots 3, 4, 5
"CLuster I/O Modules (CLIMs)" (page
Provides
ServerNet fabric connections via a PCIe 4x adapter
2-port 1GbE copper NIC
Not used
Table 1 (page 16). An NS2100
16).
NS2100 Hardware 19
