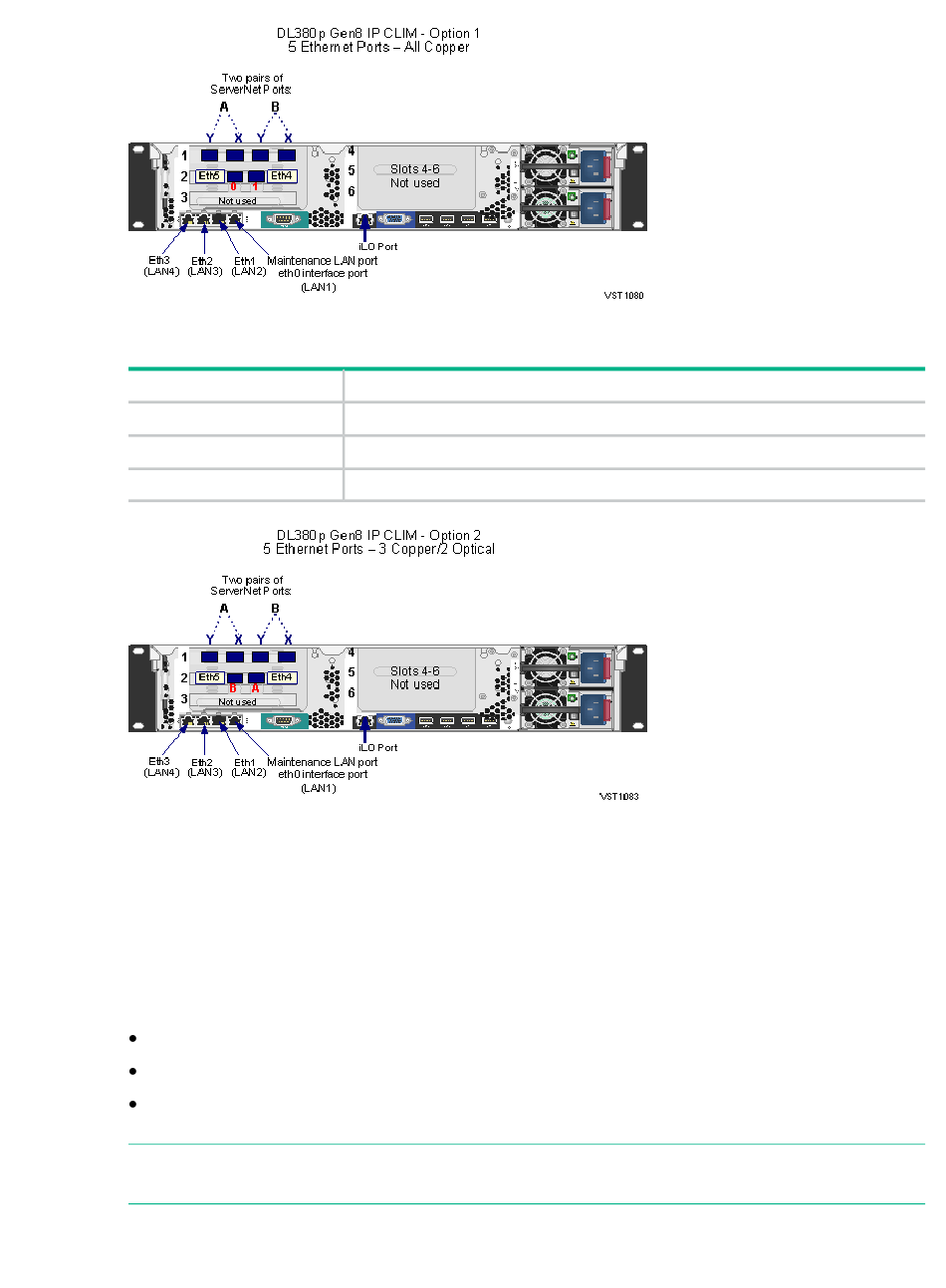

DL380p Gen8 IP CLIM Option 2 — Three Ethernet Copper and Two Ethernet Optical Ports
IP CLIM Slot
Slot 1
Slot 2
Slots 3, 4, 5, 6

Telco CLuster I/O Module (CLIM) (Optional)

The Telco CLIM is a rack-mounted server that is part of some NS2100 series system
configurations. For RVU requirements for DL380 G6 and DL380p Gen8 Telco CLIMs, see
(page 16). An NS2100 series system can have 0, 1, or 2 Telco CLIMs. For information about
coexistence limits for IP and Telco CLIMs, see
The Telco CLIM connects to the VIO enclosure and utilizes the Message Transfer Part Level 3
User Adaptation layer (M3UA) protocol and functions as a ServerNet Ethernet adapter with one
of these Telco CLIM configurations:
"DL380 G6 Telco CLIM — Five Ethernet Copper Ports" (page 22)
"DL380p Gen8 Telco CLIM — Option 1 Five Ethernet Copper Ports" (page 22)
"DL380p Gen8 Telco CLIM — Option 2 Three Ethernet Copper and Two Ethernet Optical
Ports" (page 23)
NOTE: All CLIMs use the Cluster I/O Protocols (CIP) subsystem. For more information about
the CIP subsystem, see the Cluster I/O Protocols (CIP) Configuration and Management Manual.
Provides
One ServerNet PCIe interface card, which provides the ServerNet fabric connections
2-port 1GbE optical NIC
Not used
IP and Telco CLIM Coexistence Limits (page
Table 1
88).
NS2100 Hardware 21
