Dimensions and Weights

This subsection provides information about the dimensions and weights for modular cabinets
and enclosures installed in a modular cabinet and covers these topics:
"Plan View of the Modular Cabinets" (page 65)
"Service Clearances for the Modular Cabinets" (page 65)
"Unit Sizes" (page 65)
"36U Intelligent Rack Modular Cabinet Physical Specifications" (page 66)
"42U Modular Cabinet Physical Specifications" (page 66)
"Enclosure Dimensions " (page 66)
"Modular Cabinet and Enclosure Weights With Worksheet" (page 67)

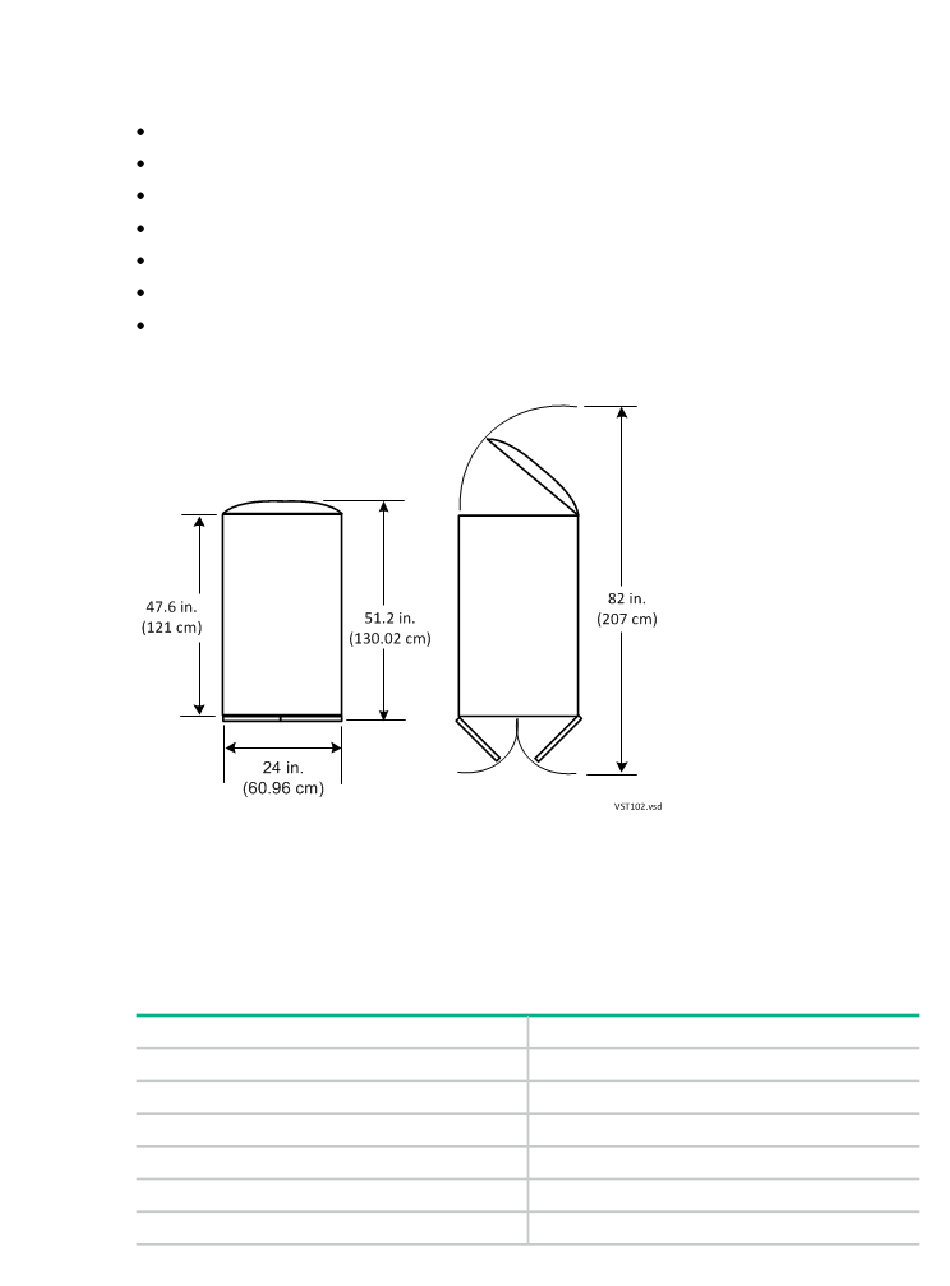

Plan View of the Modular Cabinets

Service Clearances for the Modular Cabinets

Aisles: 6 feet (182.9 centimeters)
Front: 3 feet (91.4 centimeters)
Rear: 3 feet (91.4 centimeters)

Unit Sizes

Enclosure Type
Blade element
VIO enclosure
SAS Disk Enclosure
Storage CLIM
IP CLIM
Telco CLIM
Height (U)
2
4
2
2
2
2
Dimensions and Weights 65
