NonStop System With Data Center UPS, Both Power Rails

In this non-supported configuration, a NonStop system is installed in a Tier-I, Tier-II or Tier-III
data center. The data center tier classification is defined by the Uptime InstituteTM Tier
Classifications Define Site Infrastructure White Paper.
IMPORTANT: If this configuration is used, there is no guarantee that your data center will
never lose power.

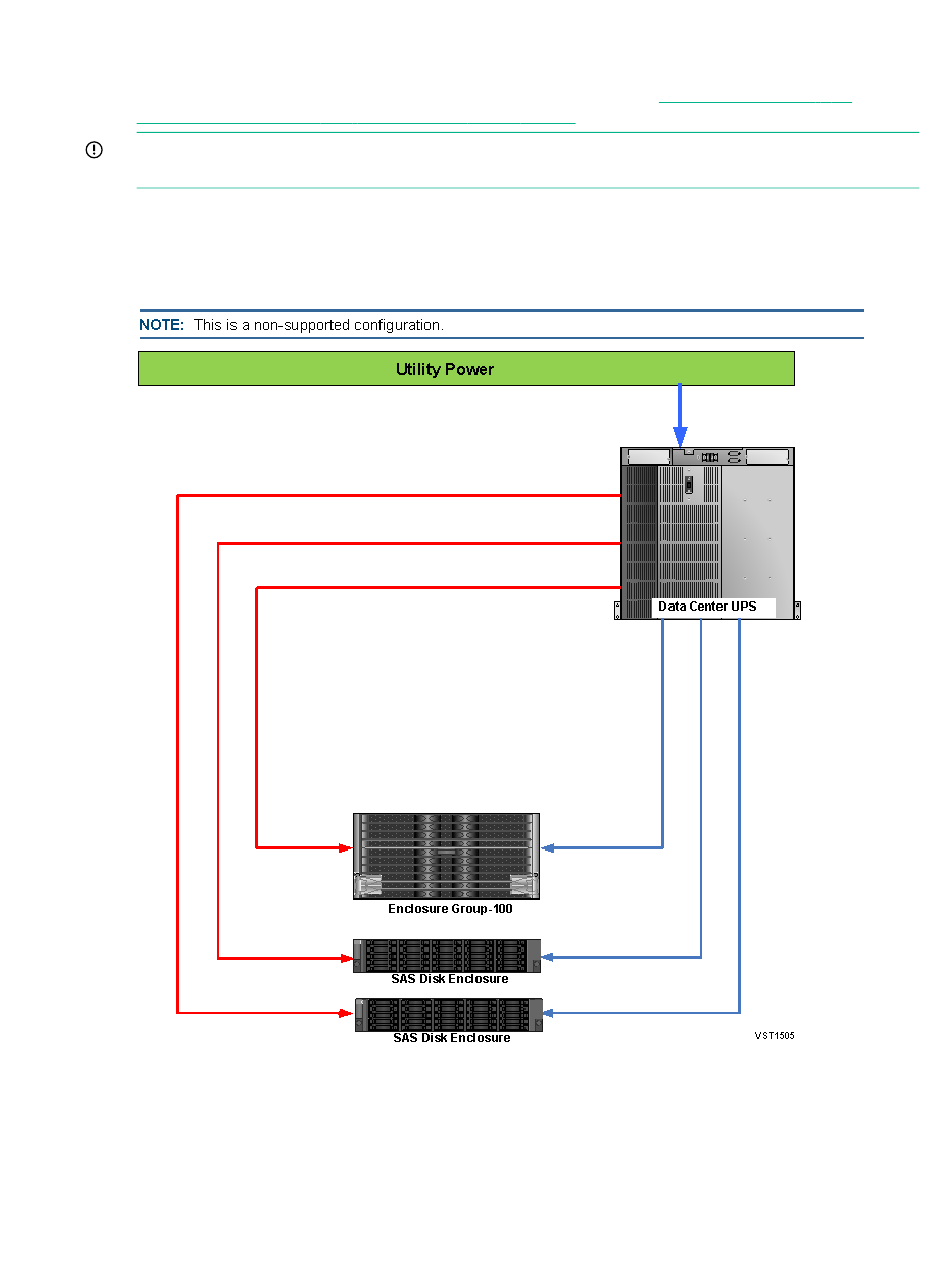

Figure 37 shows an example of a non-supported configuration in a NonStop system with the left
and right PDUs connected to the data center UPS. In this configuration, OSM does not manage
or monitor the data center UPS.
Figure 37 NonStop System With Data Center UPS, Both Power Rails
