NOTE:
All CLIMs use the Cluster I/O Protocols (CIP) subsystem. For more information about
the CIP subsystem, see the Cluster I/O Protocols (CIP) Configuration and Management Manual.
This illustration shows the locations of the hardware in the SAS disk enclosure as well as the I/O
modules on the rear of the enclosure for connecting to the Storage CLIM.

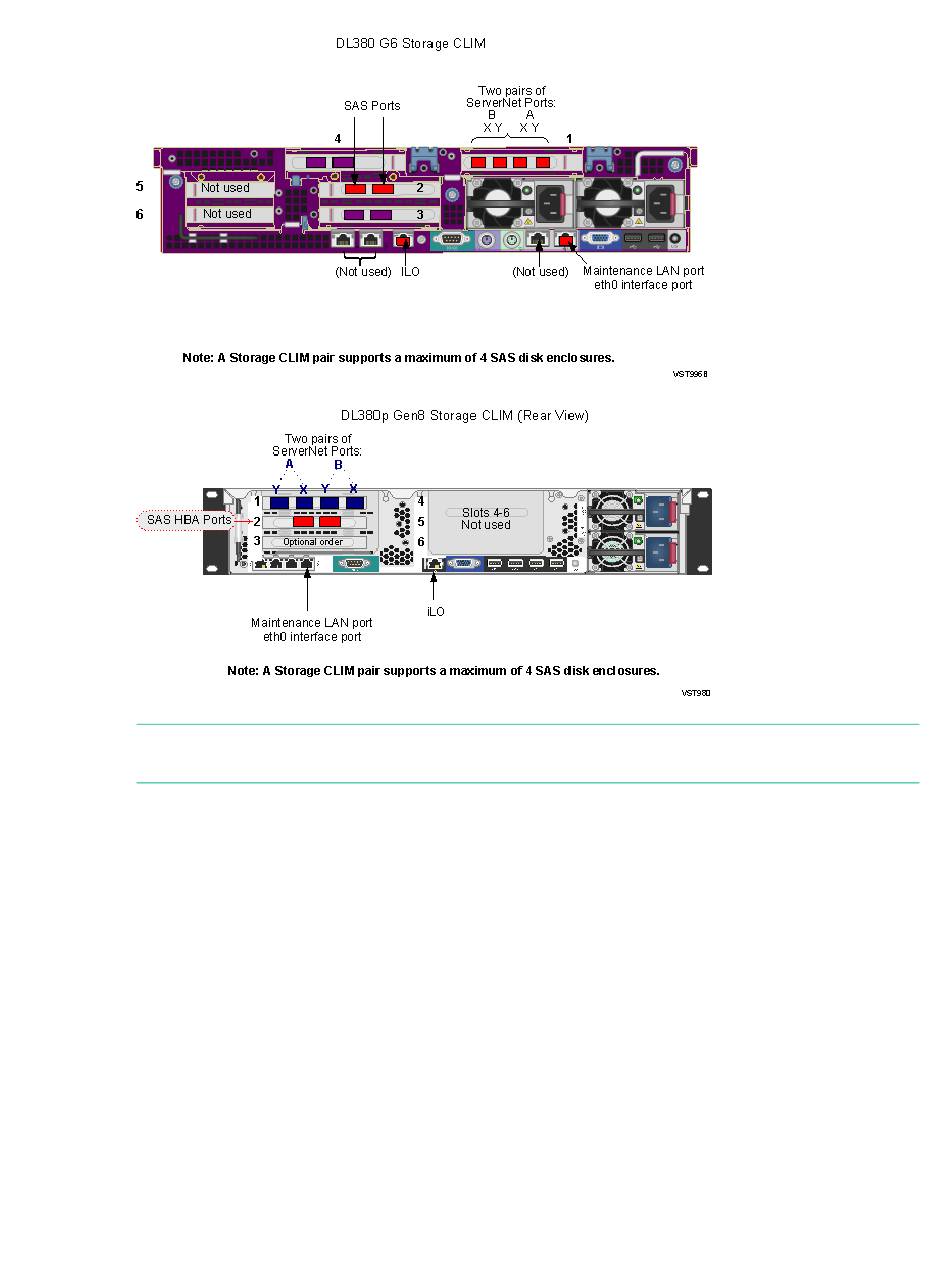

Storage CLIM Devices
75
