Ns2100 Hardware; Example Of An Ns2100 System, 42U - HPE Integrity NonStop NS2100 Planning Manual

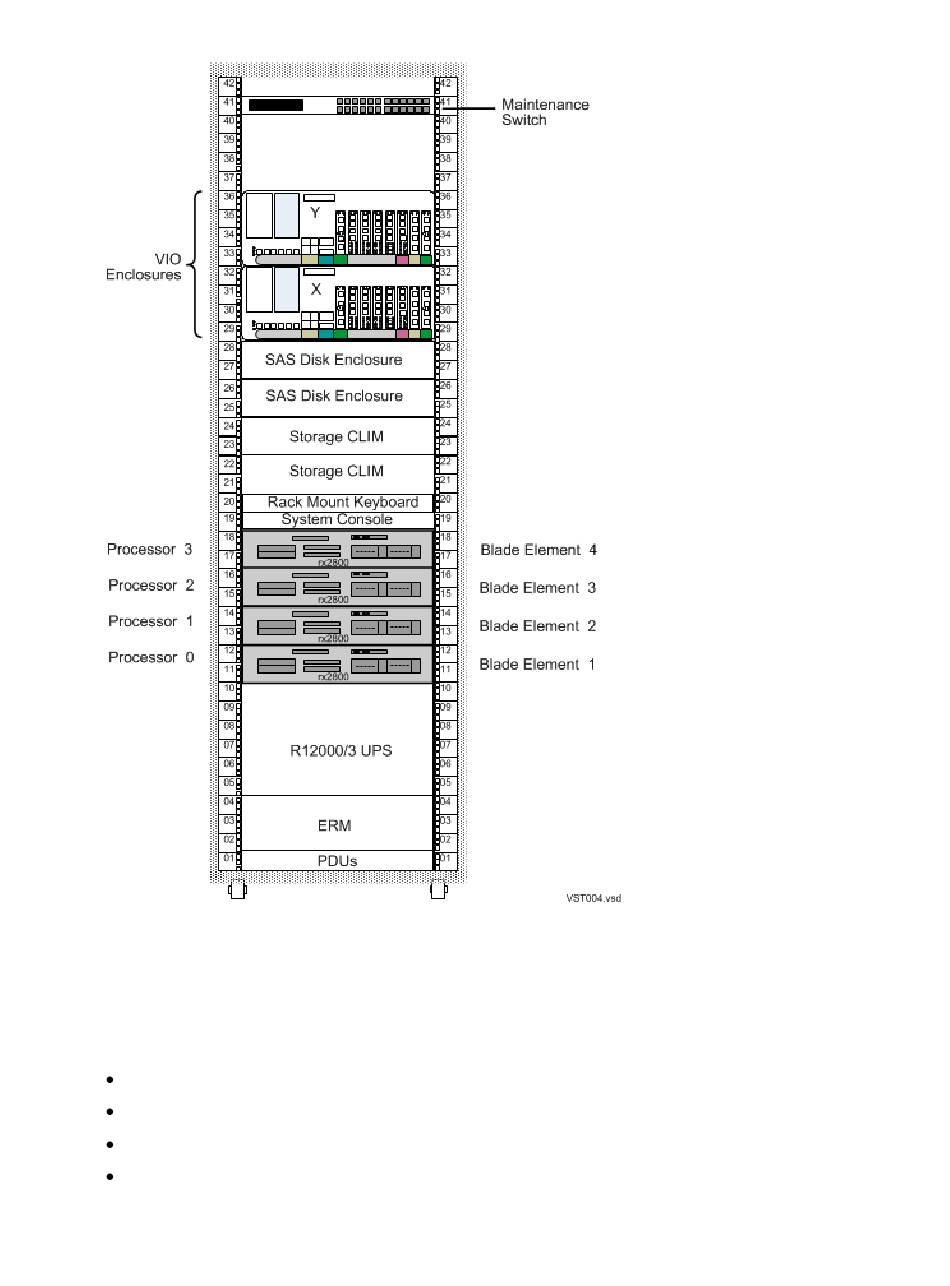

Figure 1 Example of an NS2100 System, 42U

NS2100 Hardware

Some variation of enclosure combinations is possible within the modular cabinets of an NS2100
system. The applications and purpose of any NS2100 system determine the number and
combinations of hardware within a modular cabinet.
Standard Hardware for an NS2100 system includes:
"Blade Element (rx2800 i2) " (page 15)
"Versatile I/O (VIO) Enclosure " (page 15)
"Storage CLuster I/O Module (CLIM)" (page 17)
"SAS Disk Enclosure" (page 24)
