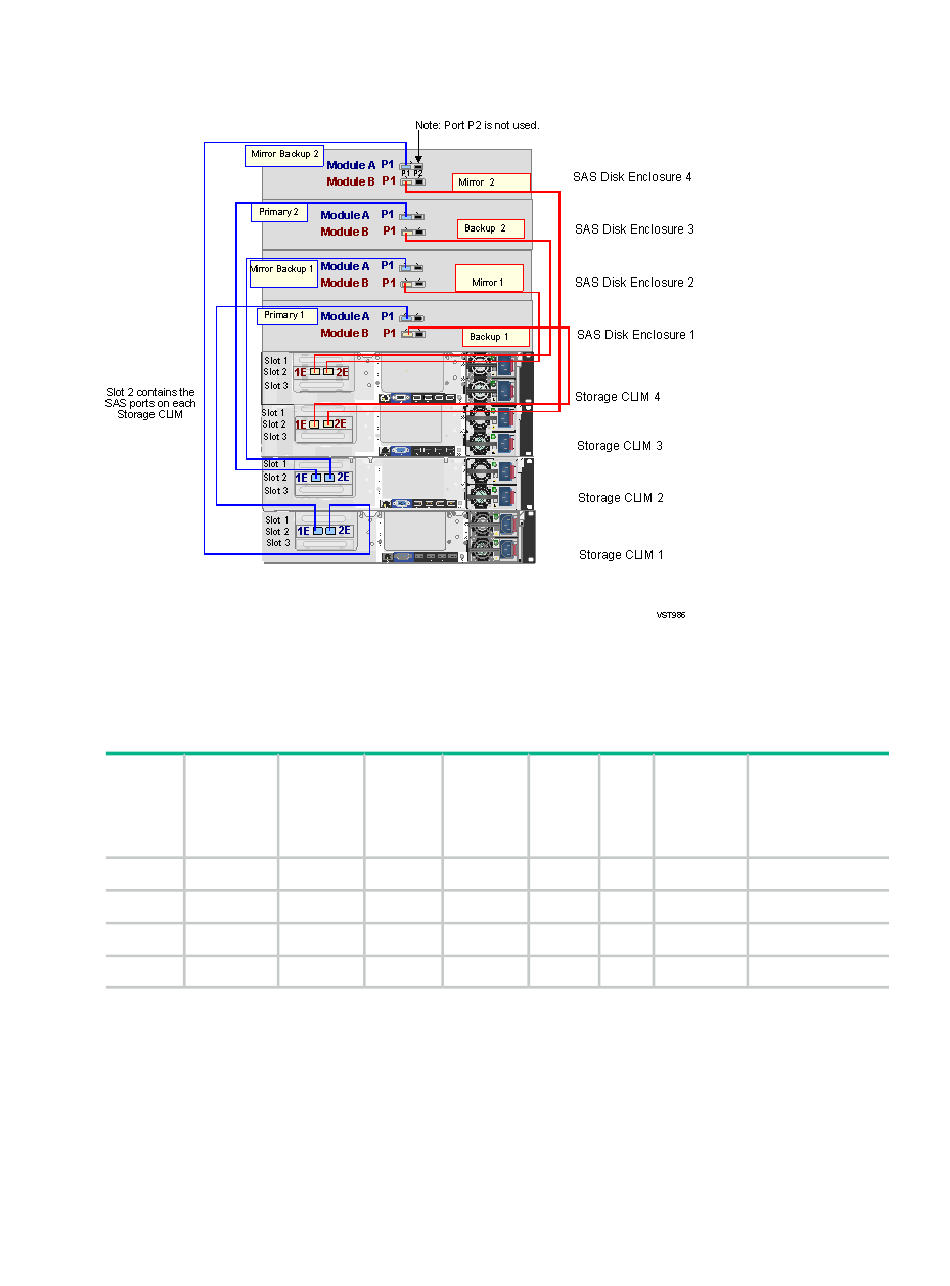

Figure 26 Four DL380p Gen8 Storage CLIMs, Four M8381-25 SAS Disk Enclosure
Configuration
This table lists the Storage CLIM, LUN, and bay identification for the factory-default system disk
locations in the configuration of four DL380p Gen8 Storage CLIMs and four M8381-25 SAS disk
enclosures. In this case, $SYSTEM, $DSMSCM, $AUDIT, and OSS are configured as mirrored
SAS disk volumes:
Disk Primary
Volume CLIM
Name
$SYSTEM 100.2.5.3.1
$DSMSCM 100.2.5.3.1
$AUDIT 100.2.5.3.1
$OSS 100.2.5.3.1

Four DL380p Gen8 Storage CLIMs, Eight M8381-25 SAS Disk Enclosures

This illustration shows example cable connections for the four DL380p Gen8 Storage CLIM, eight
M8381-25 SAS disk enclosures configuration. This configuration uses two SAS ports in slots 2
and 3 of each DL380p Gen8 Storage CLIM to connect to the P1 ports on each SAS disk enclosure
I/O module.
82 System Configuration Guidelines for NS2100 Systems
Backup Mirror Mirror-Backup
CLIM CLIM CLIM
100.2.5.4.1 100.2.5.4.3 100.2.5.3.3
100.2.5.4.1 100.2.5.4.3 100.2.5.3.3
100.2.5.4.1 100.2.5.4.3 100.2.5.3.3
100.2.5.4.1 100.2.5.4.3 100.2.5.3.3
Primay Mirror Primary
LUN LUN Disk Bay in
Primary
SAS
Enclosure
101 101 1
102 102 2
103 103 3
104 104 4
Mirror Disk
Location in Mirror
SAS Enclosure
1
2
3
4
