The illustration below shows the slot and connector locations from the VIO modules to two DL380p
Gen8 IP or Telco CLIMs.
NOTE: The Telco CLIM connections are the same as the IP CLIM connections.

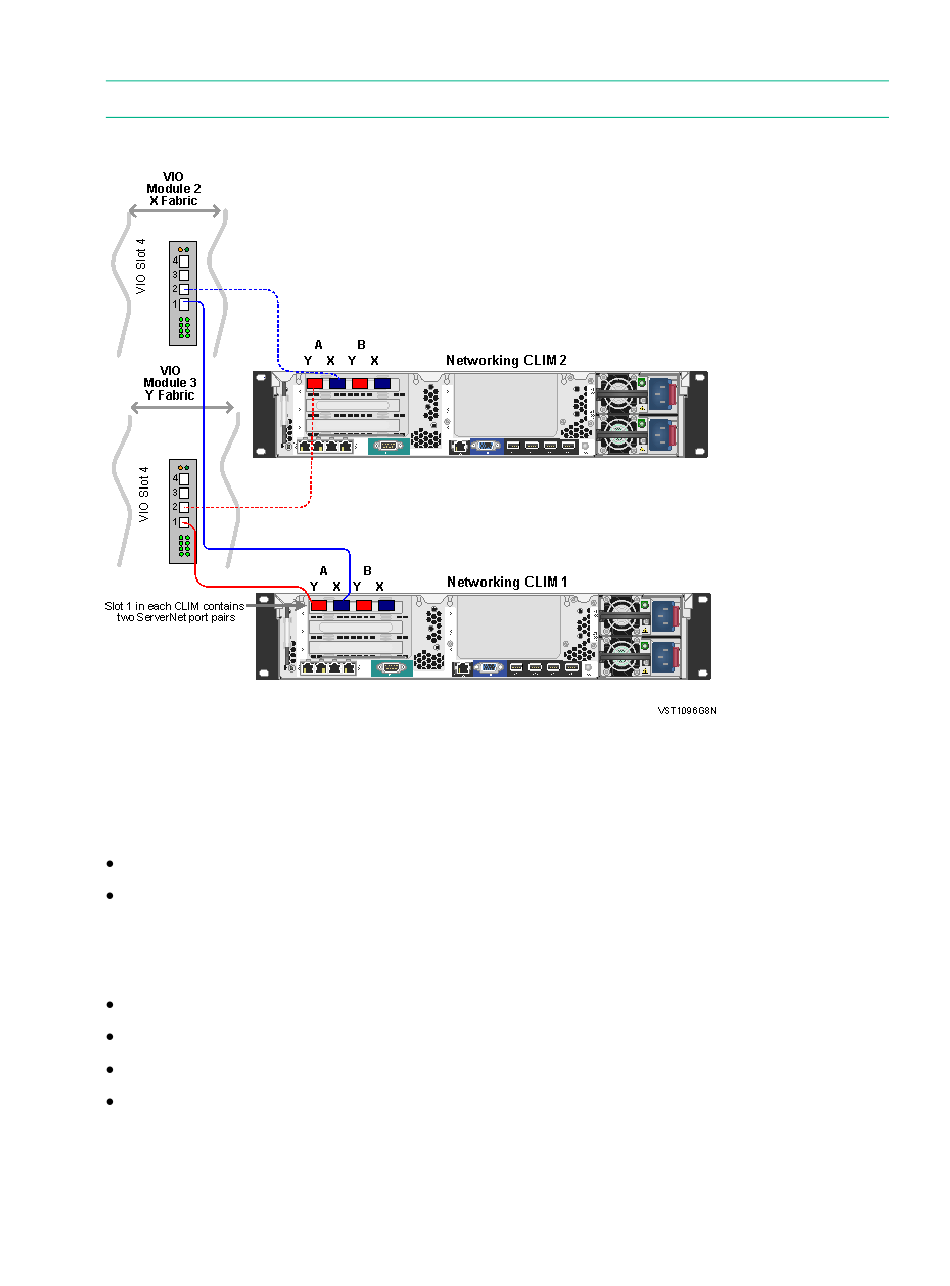

Figure 7 DL380p Gen8 IP or Telco CLIM Connections to VIO Enclosures

System Installation Document Packet

To keep track of the hardware configuration, internal and external communications cabling, IP
addresses, and connect networks, assemble and retain as the systems records an Installation
Document Packet. This packet can include:
"Tech Memo for the Factory-Installed Hardware Configuration " (page 36)
"Configuration Forms for the CLIMs and ServerNet Adapters " (page 37)

Tech Memo for the Factory-Installed Hardware Configuration

Each new NS2100 system includes a document that describes:
The cabinet included with the system
Each hardware enclosure installed in the cabinet
Cabinet U location of the bottom edge of each enclosure
Each ServerNet cable with:
◦
Source and destination enclosure, component, and connector
◦
Cable part number
◦
Source and destination connection labels
