Ac Power Feeds; Modular Pdu Connections (With Three-Phase Ups) - HPE Integrity NonStop NS2100 Planning Manual

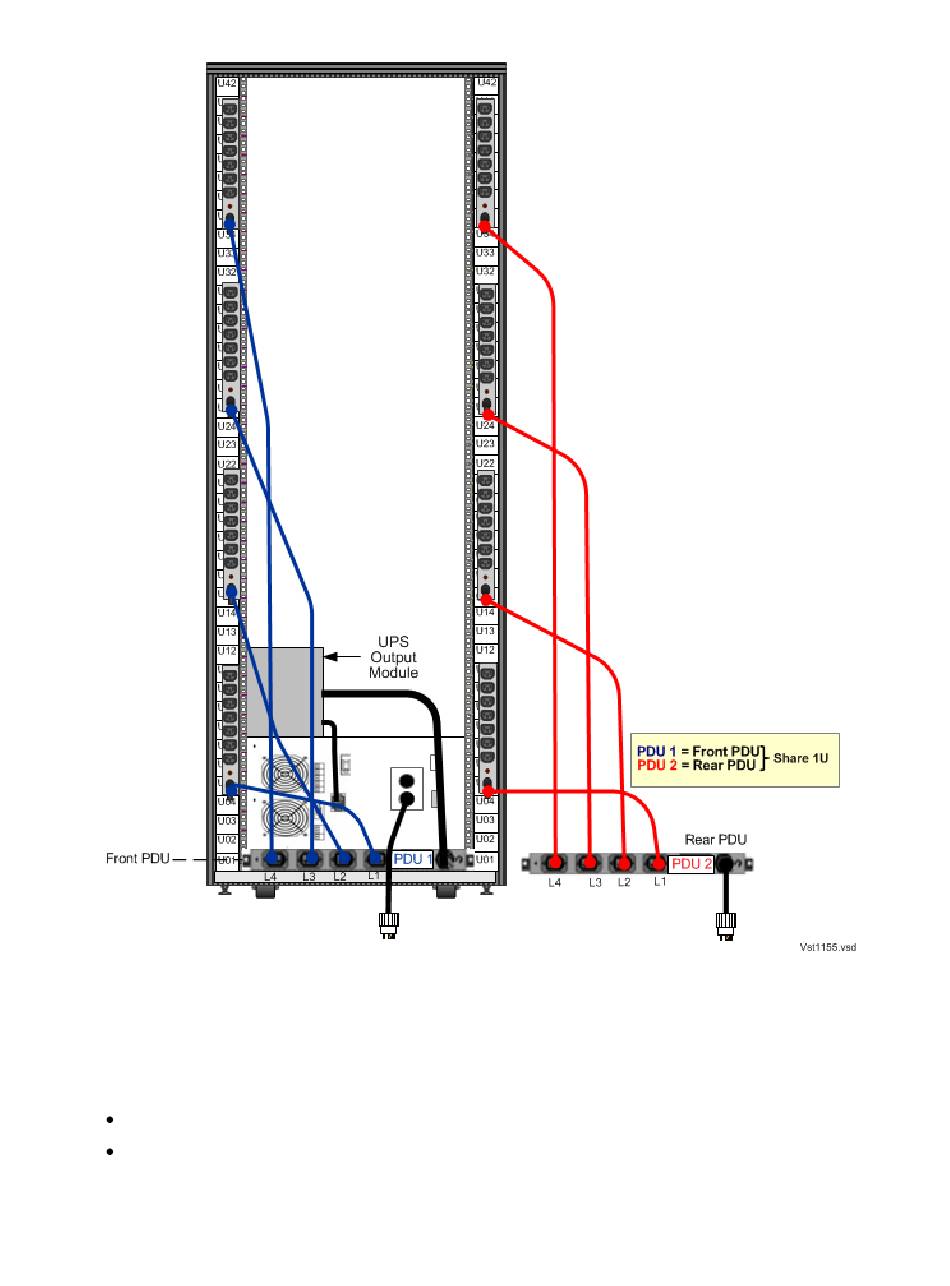

Figure 13 Modular PDU Connections (With Three-Phase UPS)

AC Power Feeds

Power can enter the NS2100 system from either the top or the bottom rear of the modular cabinets,
depending on how the cabinets are ordered from Hewlett Packard Enterprise and how the AC
power feeds are routed at the site. NS2100 system cabinets can be ordered with the AC power
cords for the PDU installed either:
Top: Power and I/O cables are routed from above the modular cabinet.
Bottom: Power and I/O cables are routed from below the modular cabinet
