Two DL380p Gen8 Storage CLIMs, Two M8381-25 SAS Disk Enclosures

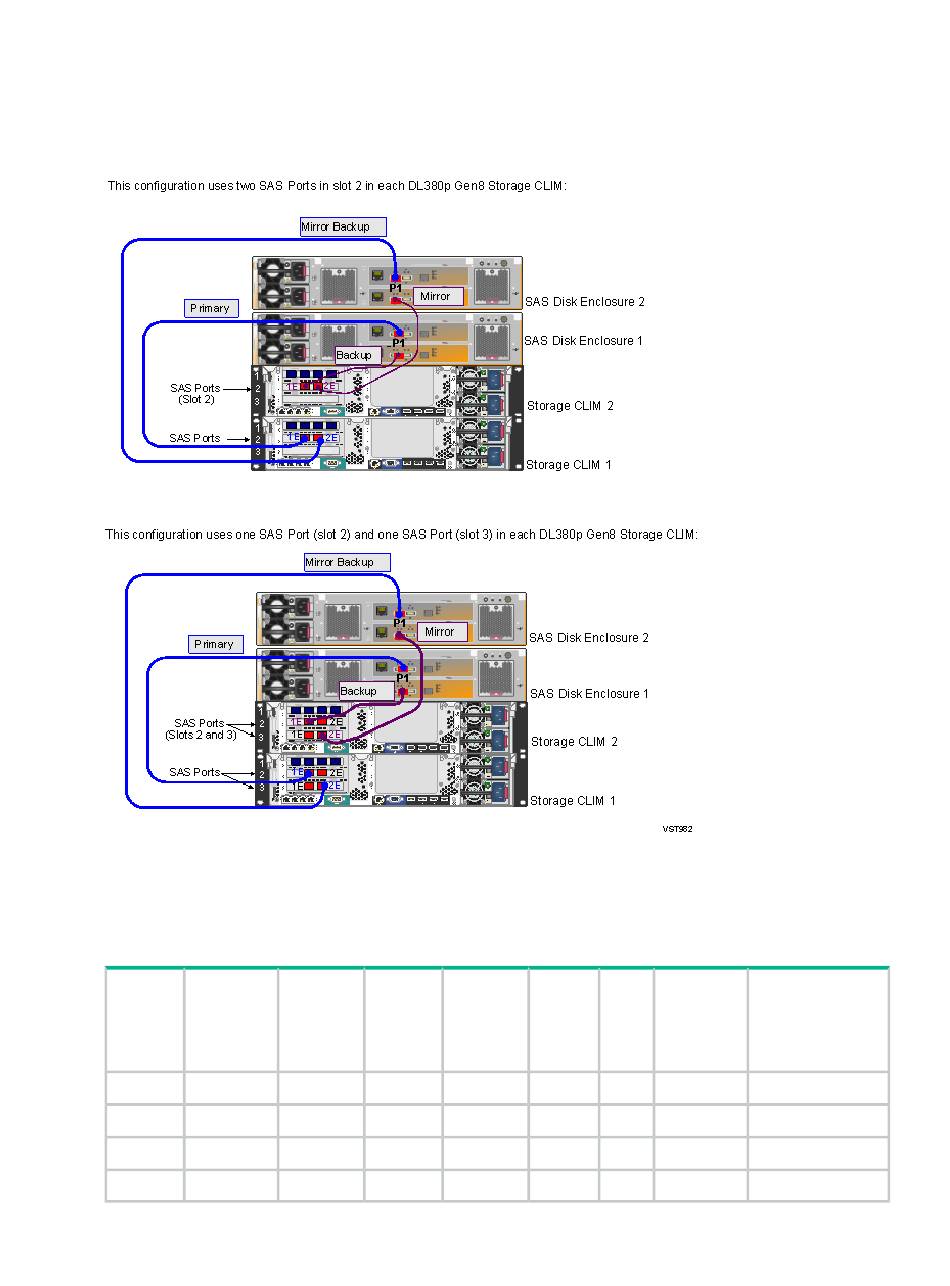

This illustration shows example cable connections between the two DL380p Gen8 Storage CLIM,
two M8381-25 SAS disk enclosure configuration.
Figure 24 Two DL380p Gen8 Storage CLIMs, Two M8381-25 SAS Disk Enclosure
Configuration
This table lists the Storage CLIM, LUN, and bay identification for the factory-default system disk
locations in the configuration of two DL380p Gen8 Storage CLIMs and two M8381-25 SAS disk
enclosures. In this case, $SYSTEM, $DSMSCM, $AUDIT, and OSS are configured as mirrored
SAS disk volumes:
Disk Primary
Volume CLIM
Name
$SYSTEM 100.2.5.3.1
$DSMSCM 100.2.5.3.1
$AUDIT 100.2.5.3.1
$OSS 100.2.5.3.1
80 System Configuration Guidelines for NS2100 Systems
Backup Mirror Mirror-Backup
CLIM CLIM CLIM
100.2.5.3.3 100.2.5.3.3 100.2.5.3.1
100.2.5.3.3 100.2.5.3.3 100.2.5.3.1
100.2.5.3.3 100.2.5.3.3 100.2.5.3.1
100.2.5.3.3 100.2.5.3.3 100.2.5.3.1
Primay Mirror Primary
LUN LUN Disk Bay in
Primary
SAS
Enclosure
101 201 1
102 202 2
103 203 3
104 204 4
Mirror Disk
Location in Mirror
SAS Enclosure
1
2
3
4
