The illustration below shows the slot and connector locations from the VIO modules to two DL380

G6 IP or Telco CLIMs.

NOTE:

The Telco CLIM connections are the same as the IP CLIM connections.

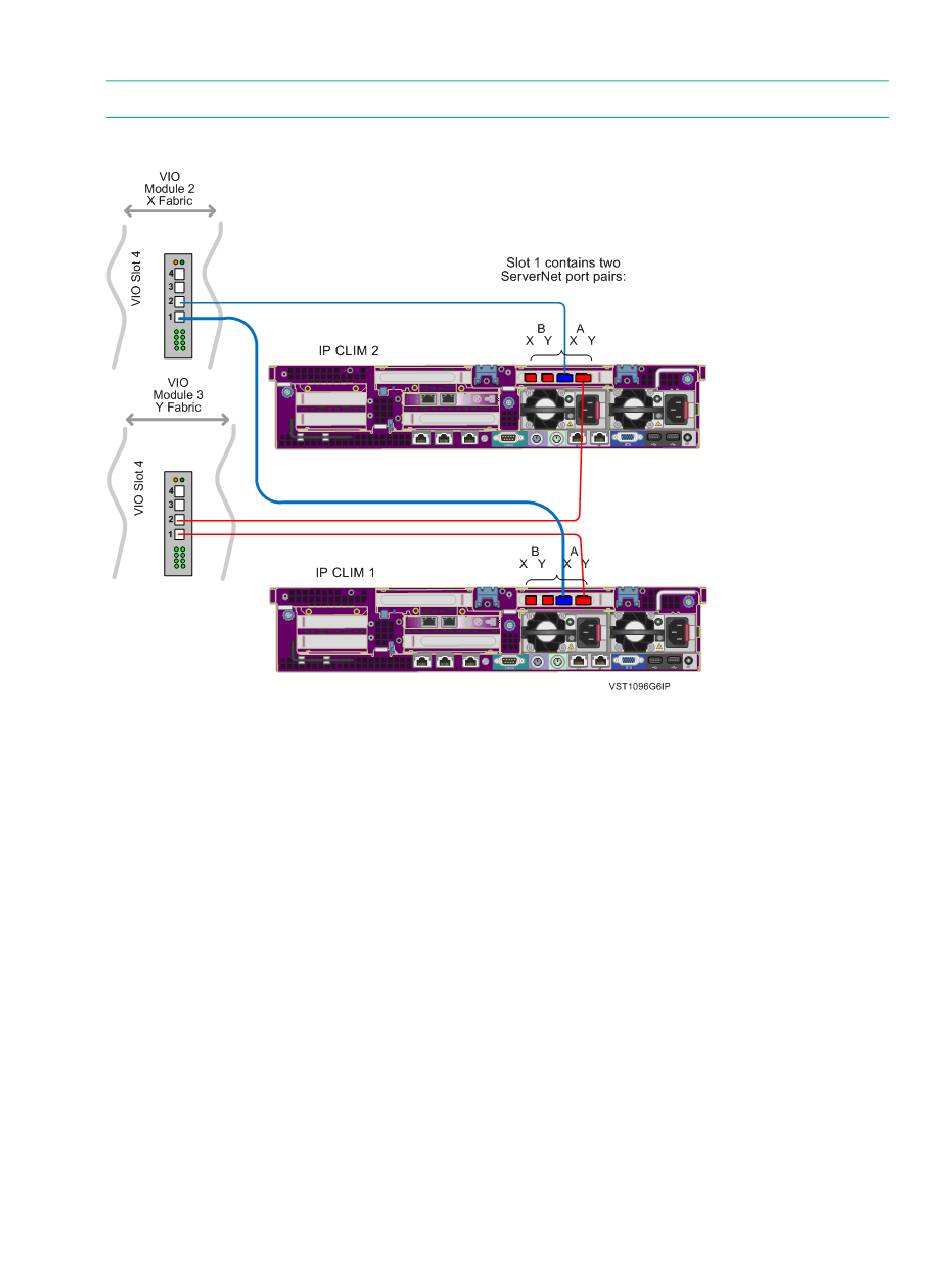

Figure 5 DL380 G6 IP or Telco CLIM Connections to VIO Enclosures
