Navigating the Web Browser Interface
To access the web-browser interface you must first enter a user name and
password. The administrator has Read/Write access to all configuration
parameters and statistics. The default user name and password for the
administrator is "admin."
Home Page
When your web browser connects with the switch's web agent, the home
page is displayed as shown below. The home page displays the Main Menu
on the left side of the screen and System Information on the right side.
The Main Menu links are used to navigate to other menus, and display
configuration parameters and statistics.
Note: The examples in this chapter are based on the SMC6224M. Other
than the number of fixed ports, there are no major differences
between the SMC6224M and SMC6248M. The panel graphics for
both switch types are shown on the following page.
N
AVIGATING THE

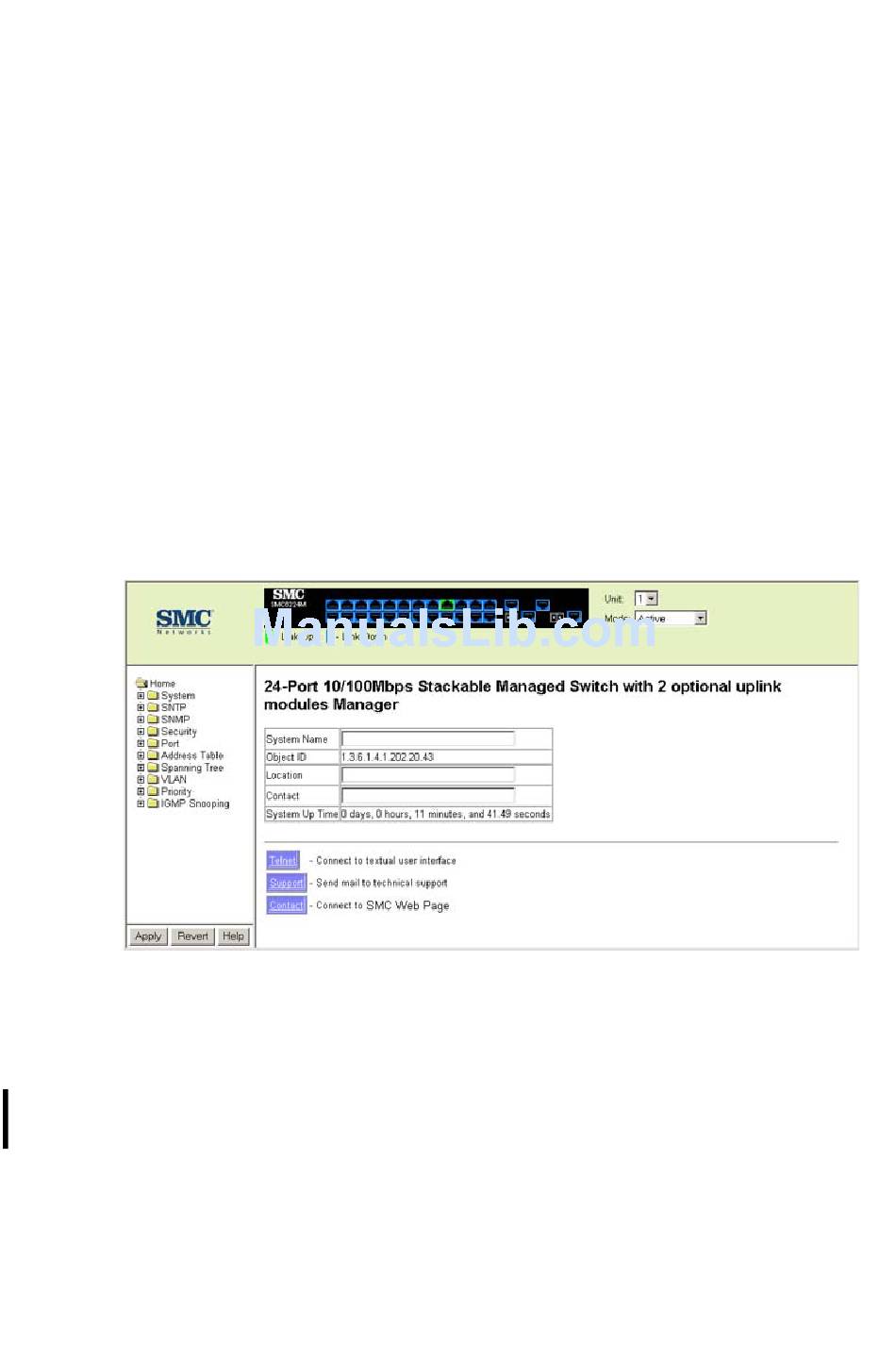

Figure 3-1 Home Page
W
B
I
EB
ROWSER
NTERFACE
3-3
