Table 3-12 Mapping Ip Precedence; Figure 3-77 Mapping Ip Precedence Priority Values - SMC Networks SMC TigerStack IV SMC6224M Management Manual

Priority Level
7
6
5
4
Command Attributes
• IP Precedence Priority Table – Shows the IP Precedence to CoS
map.
• Class of Service Value – Maps a CoS value to the selected IP
Precedence value. Note that "0" represents low priority and "7"
represent high priority.
Web – Click Priority, IP Precedence Priority. Select an entry from the IP
Precedence Priority Table, enter a value in the Class of Service Value field,
and then click Apply.

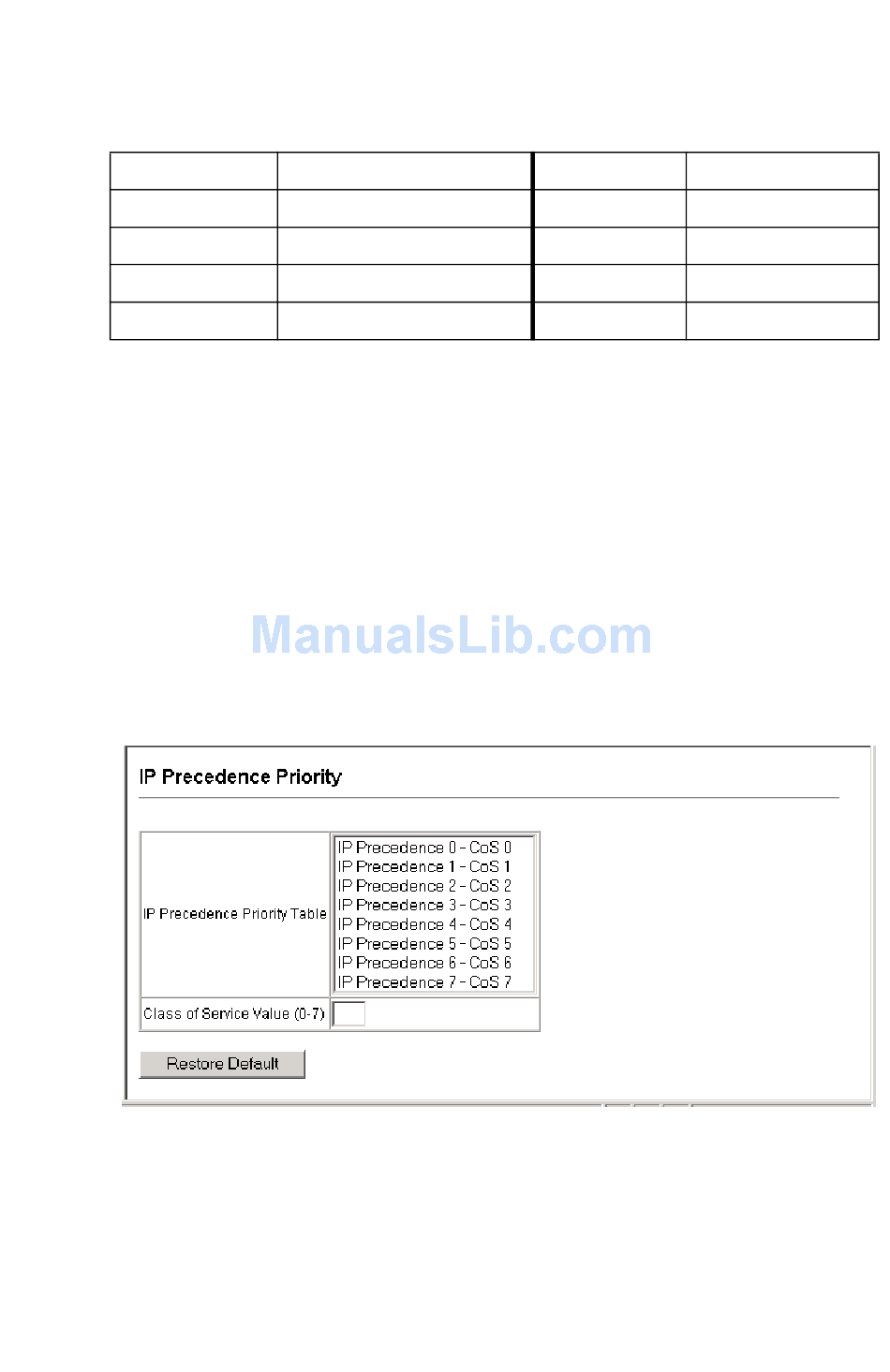

Figure 3-77 Mapping IP Precedence Priority Values

Table 3-12 Mapping IP Precedence

Traffic Type
Network Control
Internetwork Control
Critical
Flash Override
C S
LASS OF ERVICE
Priority Level Traffic Type
3
2
1
0
C
ONFIGURATION
Flash
Immediate
Priority
Routine
3-177
