Figure 3-78 Mapping Ip Dscp Priority Values - SMC Networks SMC TigerStack IV SMC6224M Management Manual

Table 3-13 Mapping DSCP Priority Values (Continued)
IP DSCP Value
18, 20, 22, 24
26, 28, 30, 32, 34, 36
38, 40, 42
48
46, 56
Command Attributes
• DSCP Priority Table – Shows the DSCP Priority to CoS map.
• Class of Service Value – Maps a CoS value to the selected DSCP
Priority value. Note that "0" represents low priority and "7" represent
high priority.
Note: IP DSCP settings apply to all interfaces.
Web – Click Priority, IP DSCP Priority. Select an entry from the DSCP
table, enter a value in the Class of Service Value field, then click Apply.

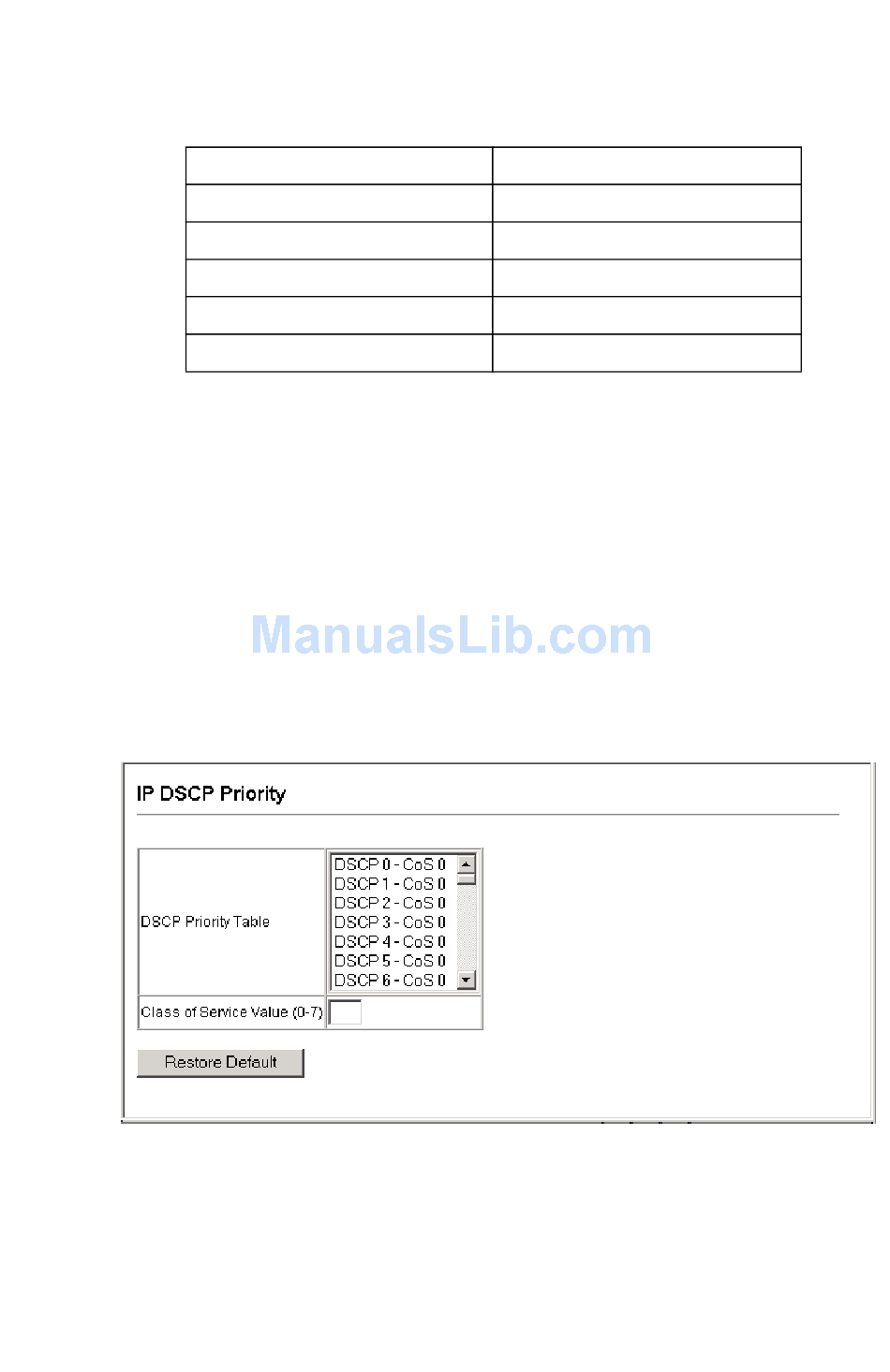

Figure 3-78 Mapping IP DSCP Priority Values

C S
LASS OF ERVICE
CoS Value
3
4
5
6
7
