Configuring Private Vlan Interfaces; Figure 3-70 Private Vlan Port Information - SMC Networks SMC TigerStack IV SMC6224M Management Manual

C
ONFIGURING THE
Web – Click VLAN, Private VLAN, Port Information or Trunk
Information.
CLI – This example shows the switch configured with primary VLAN 5
and community VLAN 6. Port 3 has been configured as a promiscuous
port and mapped to VLAN 5, while ports 4 and 5 have been configured as
host ports and associated with VLAN 6. This means that traffic for port 4
and 5 can only pass through port 3.
Console#show vlan private-vlan
Primary
--------
5
5
Console#

Configuring Private VLAN Interfaces

Use the Private VLAN Port Configuration and Private VLAN Trunk
Configuration menus to set the private VLAN interface type, and assign
the interfaces to a private VLAN.
Command Attributes
• Port/Trunk – The switch interface.
• PVLAN Port Type – Sets the private VLAN port types.
- Normal – The port is not assigned to a private VLAN.
3-166
S
WITCH

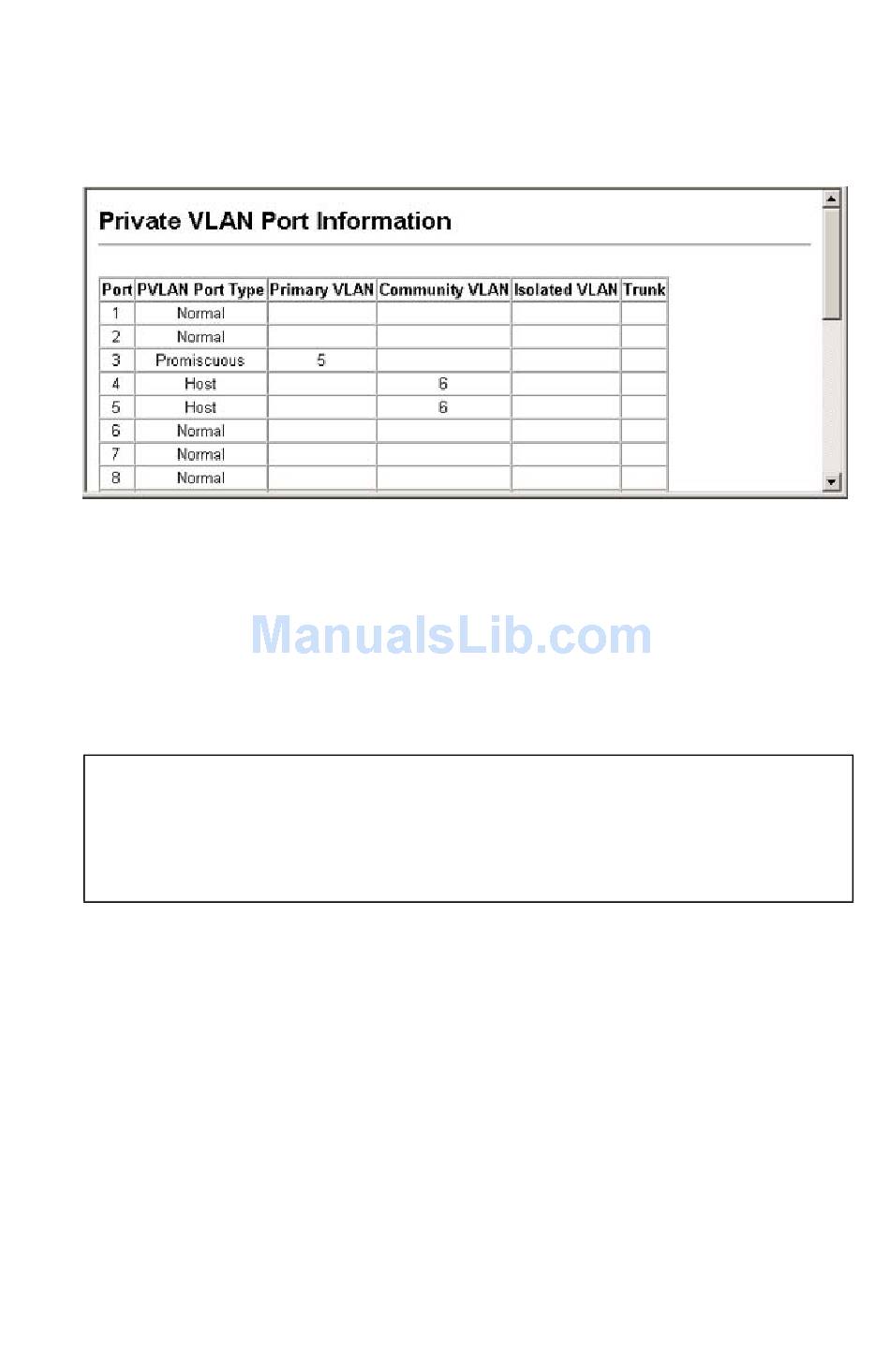

Figure 3-70 Private VLAN Port Information

Secondary
----------- ----------
primary
6 community
Type Interfaces
------------------------------
Eth1/ 3
Eth1/ 4 Eth1/ 5
4-214
