Web – Click Port, Port Information or Trunk Information.

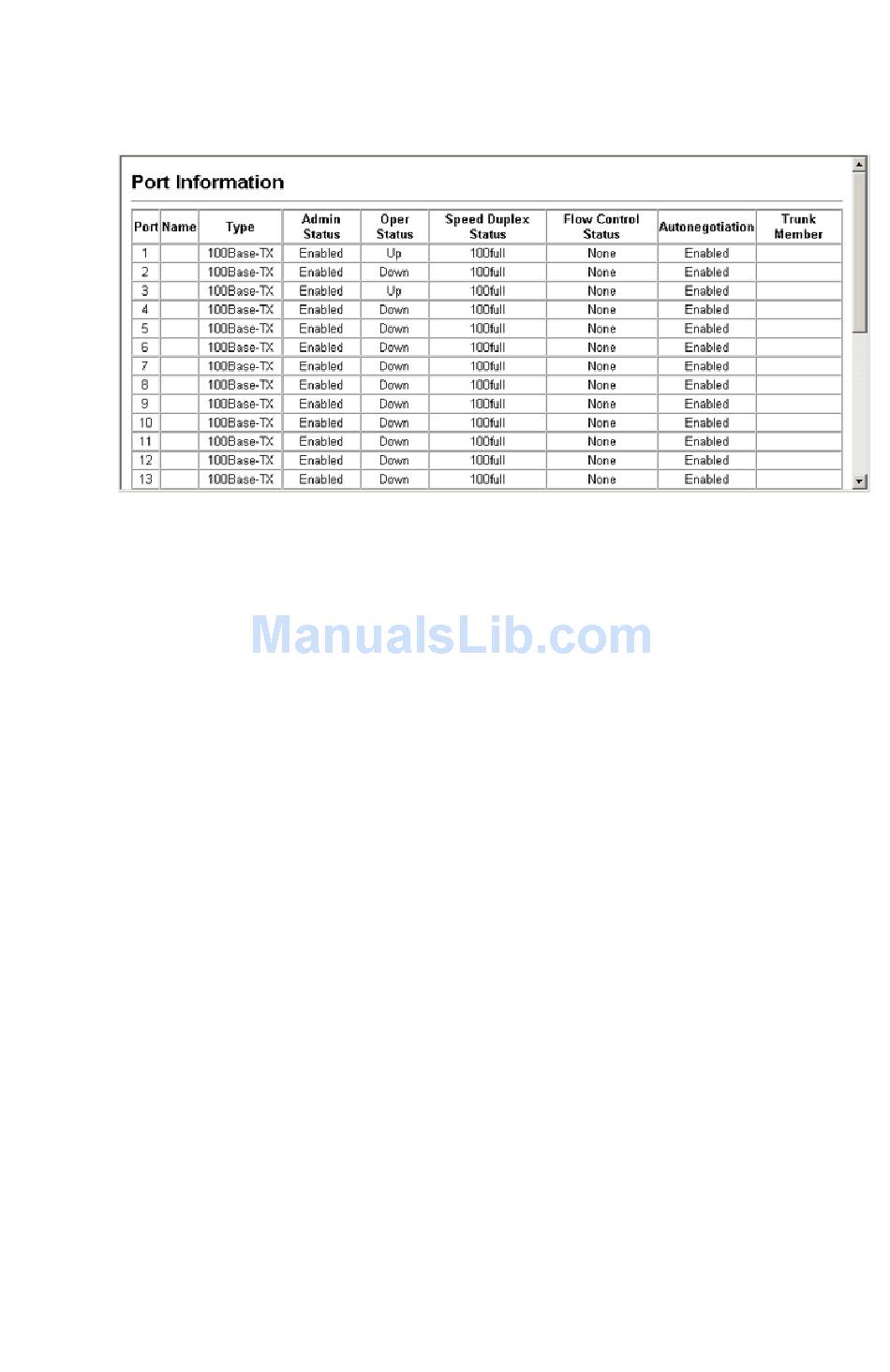

Figure 3-40 Displaying Port/Trunk Information

Field Attributes (CLI)
Basic Information:
• Port type – Indicates the port type. (100BASE-TX, 1000BASE-T, or
SFP)
• MAC address – The physical layer address for this port. (To access
this item on the web, see "Setting the Switch's IP Address" on
page 3-17.)
Configuration:
• Name – Interface label.
• Port admin – Shows if the interface is enabled or disabled (i.e., up or
down).
• Speed-duplex – Shows the current speed and duplex mode. (Auto, or
fixed choice)
• Capabilities – Specifies the capabilities to be advertised for a port
during auto-negotiation. (To access this item on the web, see
"Configuring Interface Connections" on page 3-48.) The following
capabilities are supported.
- 10half - Supports 10 Mbps half-duplex operation
