Figure 3-63 Configuring A Vlan Static List - SMC Networks SMC TigerStack IV SMC6224M Management Manual

C
ONFIGURING THE
• State (CLI) – Enables or disables the specified VLAN.
- Active: VLAN is operational.
- Suspend: VLAN is suspended; i.e., does not pass packets.
• Add – Adds a new VLAN group to the current list.
• Remove – Removes a VLAN group from the current list. If any port
is assigned to this group as untagged, it will be reassigned to VLAN
group 1 as untagged.
Web – Click VLAN, 802.1Q VLAN, Static List. To create a new VLAN,
enter the VLAN ID and VLAN name, mark the Enable checkbox to
activate the VLAN, and then click Add.
CLI – This example creates a new VLAN.
Console(config)#vlan database
Console(config-vlan)#vlan 2 name R&D media ethernet state active
Console(config-vlan)#end
Console#show vlan
Vlan ID:
Type:
Name:
Status:
Ports/Channel groups:
Vlan ID:
Type:
Name:
Status:
Ports/Port Channel:
Console(config-vlan)#
3-152
S
WITCH

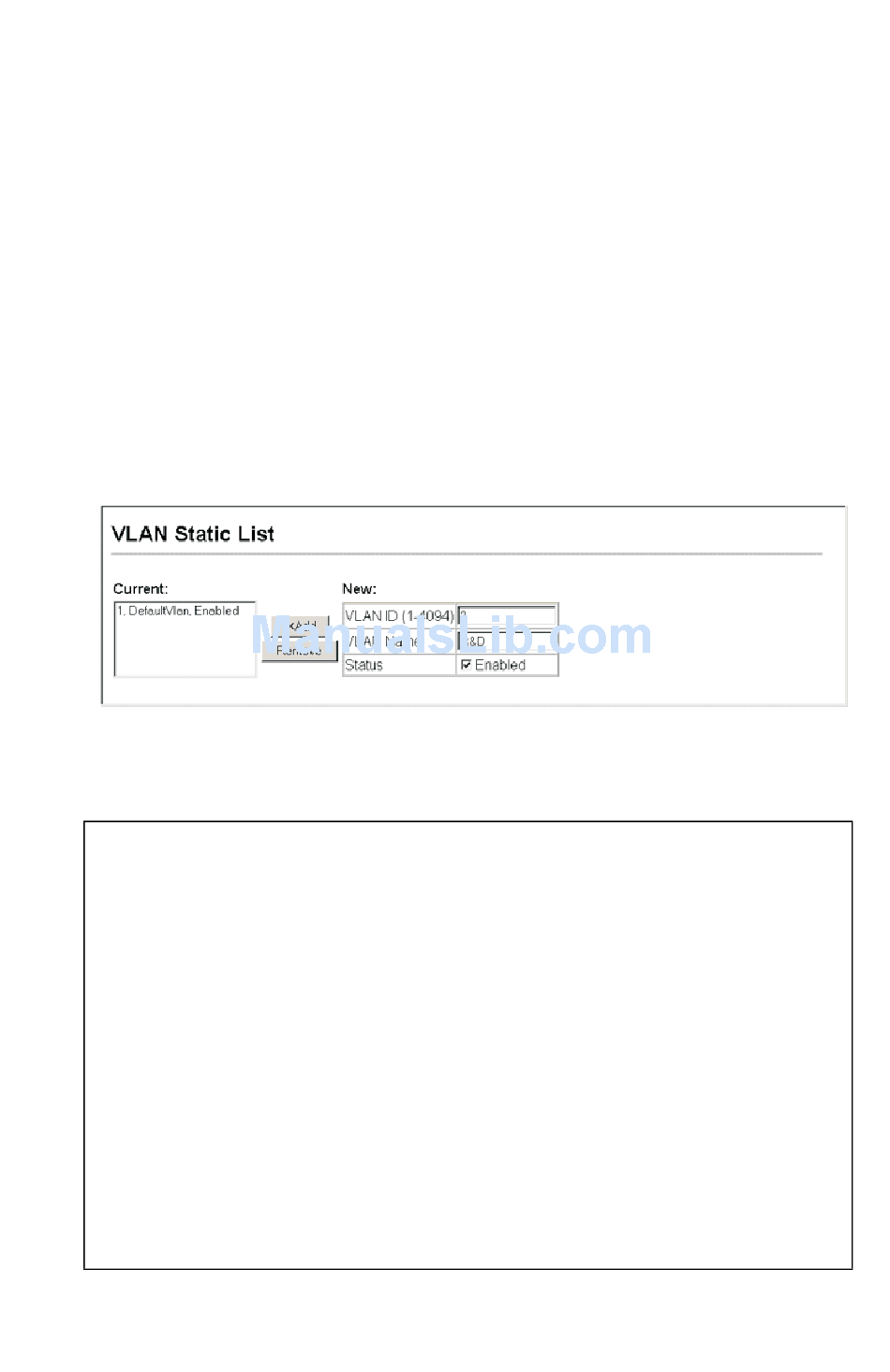

Figure 3-63 Configuring a VLAN Static List

1
Static
DefaultVlan
Active
Eth1/ 1(S) Eth1/ 2(S) Eth1/ 3(S) Eth1/ 4(S) Eth1/ 5(S)
Eth1/ 6(S) Eth1/ 7(S) Eth1/ 8(S) Eth1/ 9(S) Eth1/10(S)
Eth1/11(S) Eth1/12(S) Eth1/13(S) Eth1/14(S) Eth1/15(S)
Eth1/16(S) Eth1/17(S) Eth1/18(S) Eth1/19(S) Eth1/20(S)
Eth1/21(S) Eth1/22(S) Eth1/23(S) Eth1/24(S) Eth1/25(S)
Eth1/26(S)
2
Static
R&D
Active
4-195
4-196
4-205
