Figure 3-57 Sta Configuration - SMC Networks SMC TigerStack IV SMC6224M Management Manual

Web – Click Spanning Tree, STA, Configuration. Modify the required
attributes, and click Apply.
CLI – This example enables Spanning Tree Protocol, sets the mode to
RSTP, and then configures the STA and RSTP parameters.
Console(config)#spanning-tree
Console(config)#spanning-tree mode rstp
Console(config)#spanning-tree priority 45056
Console(config)#spanning-tree hello-time 5
Console(config)#spanning-tree max-age 38
Console(config)#spanning-tree forward-time 20
Console(config)#spanning-tree pathcost method long
Console(config)#spanning-tree transmission-limit 4
Console(config)#
S
PANNING

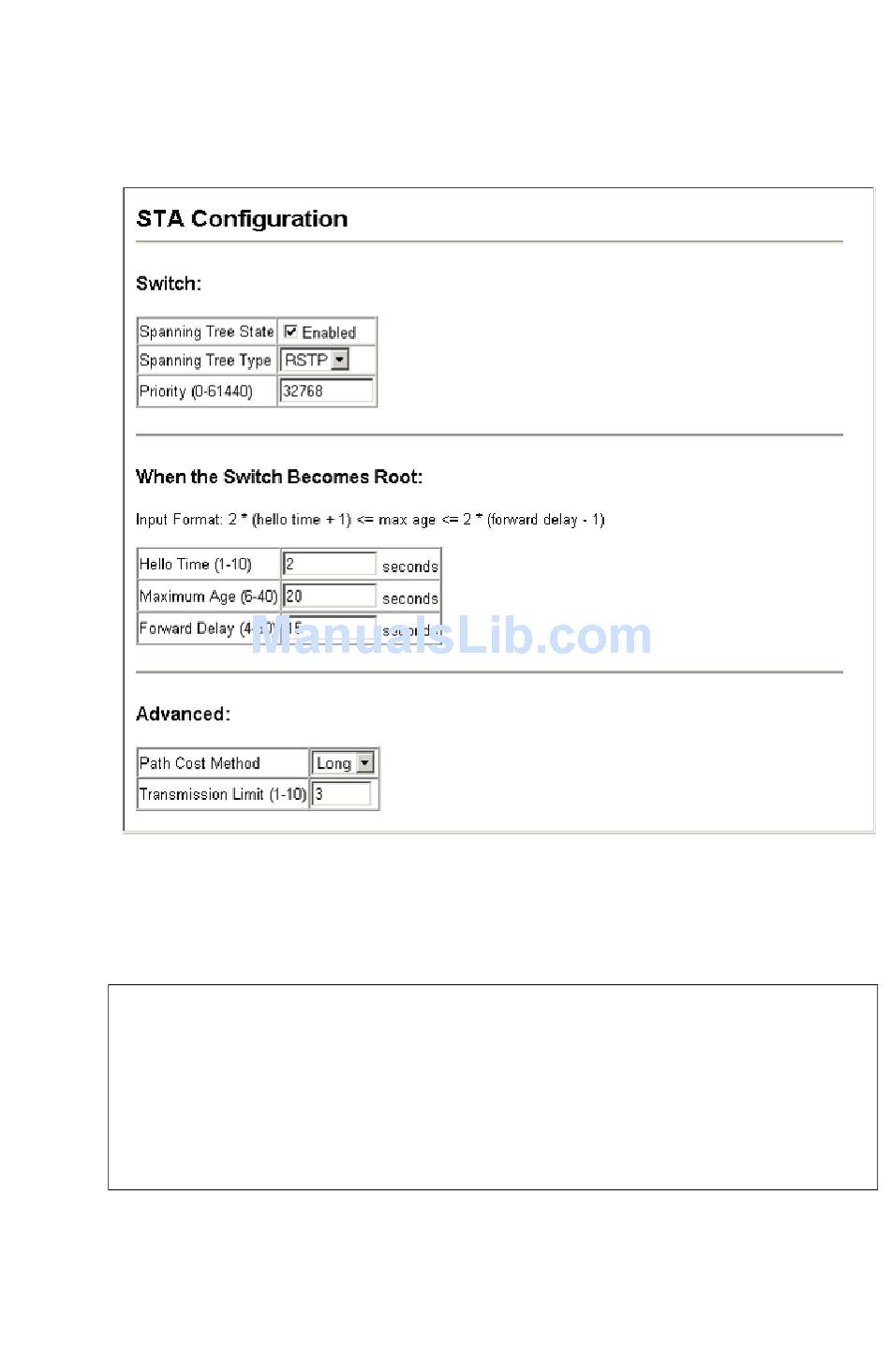

Figure 3-57 STA Configuration

T A
REE LGORITHM
C
ONFIGURATION
4-181
4-182
4-185
4-183
4-184
4-183
4-186
4-186
3-135
