• ACL CoS Priority Mapping – Displays the configured information.
Web – Click Priority, ACL CoS Priority. Enable mapping for any port,
select an ACL from the scroll-down list, then click Add.
CLI – This example assigns a CoS value of zero to packets matching rules
within the specified ACL on port 24.
Console(config)#interface ethernet 1/24
Console(config-if)#map access-list ip bill cos 0
Console(config-if)#
C

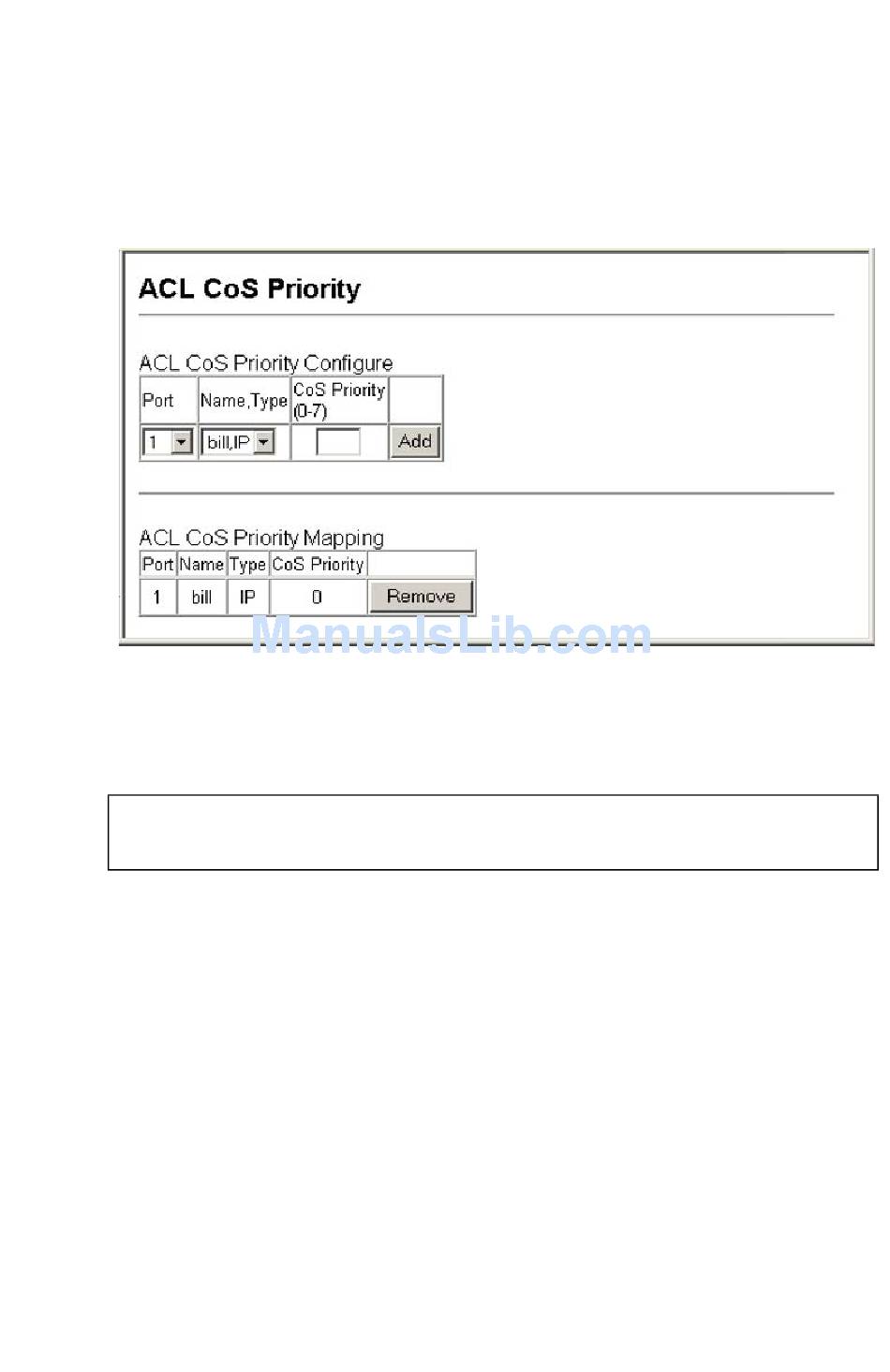

Figure 3-81 ACL CoS Priority

S
LASS OF ERVICE
C
ONFIGURATION
4-143
4-125
3-183
