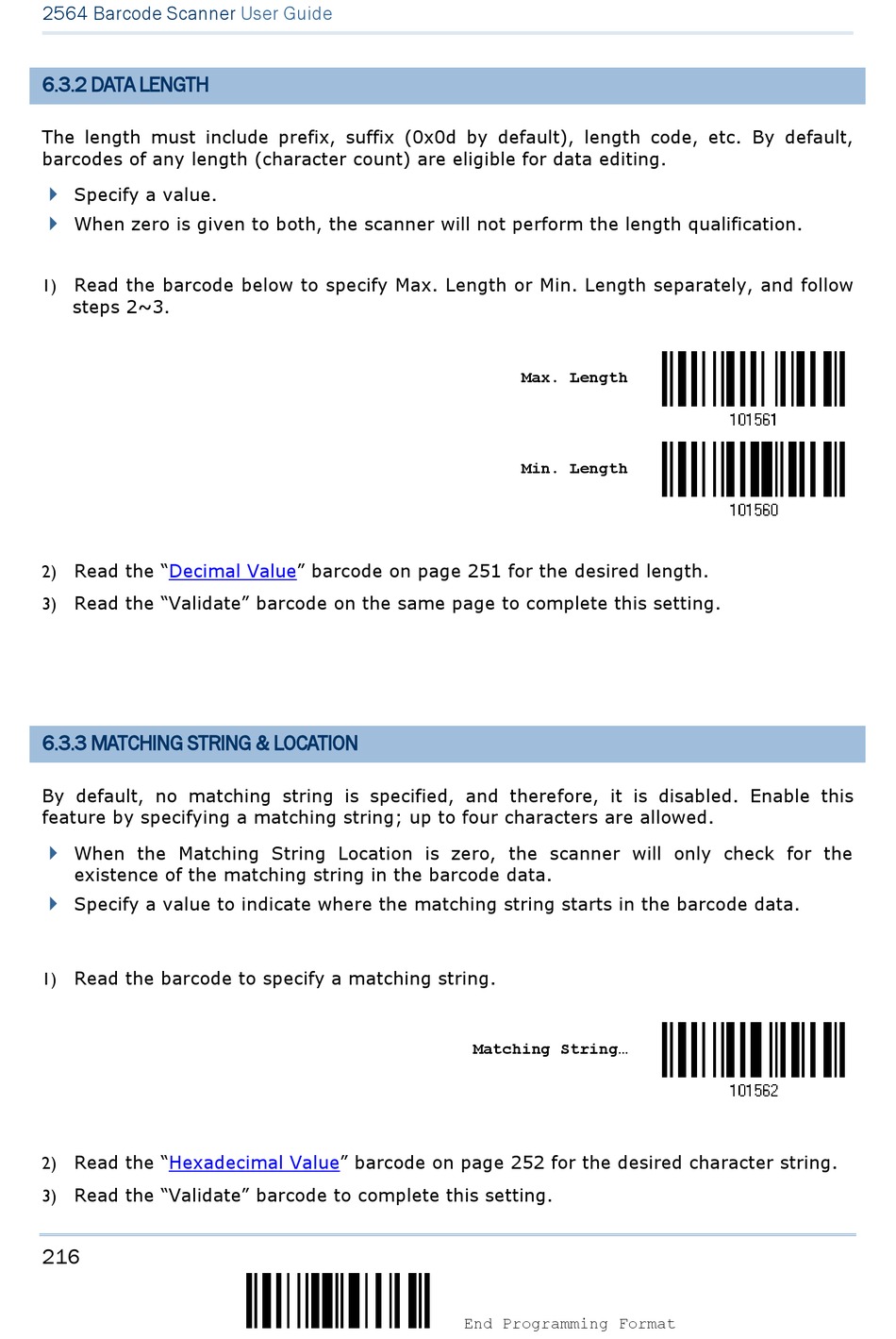

6.3.2 DATA LENGTH

The length must include prefix, suffix (0x0d by default), length code, etc. By default,
barcodes of any length (character count) are eligible for data editing.
Specify a value.

When zero is given to both, the scanner will not perform the length qualification.

1) Read the barcode below to specify Max. Length or Min. Length separately, and follow
steps 2~3.
2) Read the "Decimal
3) Read the "Validate" barcode on the same page to complete this setting.
6.3.3 MATCHING STRING & LOCATION
By default, no matching string is specified, and therefore, it is disabled. Enable this
feature by specifying a matching string; up to four characters are allowed.
When the Matching String Location is zero, the scanner will only check for the

existence of the matching string in the barcode data.
Specify a value to indicate where the matching string starts in the barcode data.

1) Read the barcode to specify a matching string.
2) Read the "Hexadecimal
3) Read the "Validate" barcode to complete this setting.
216
User Guide
Value" barcode on page 251 for the desired length.
Value" barcode on page 252 for the desired character string.
Max. Length
Min. Length
Matching String...
End Programming Format
