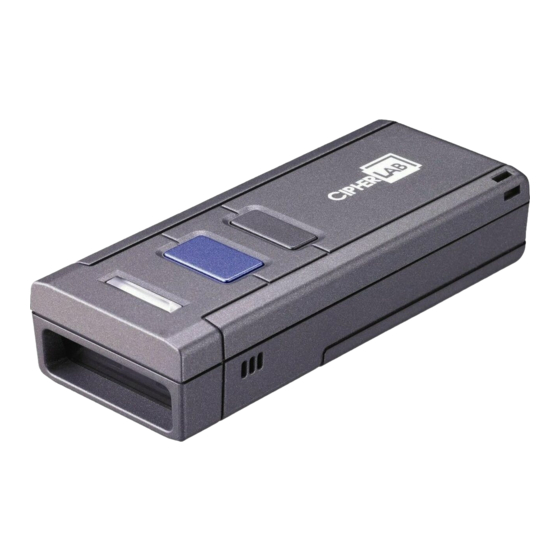

CipherLab 1660 User Manual

Hide thumbs Also See for 1660:

User manual (245 pages)

Quick start manual (2 pages)

User manual (188 pages)

Table Of Contents

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

page of 235

/ 235
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Need help?

Do you have a question about the 1660 and is the answer not in the manual?

Questions and answers

Summary of Contents for CipherLab 1660

Page 1 1660/1661 Barcode Scanner Setup barcodes included. Version 1.15...
Page 2 Due to continued product development this information may change without notice. The information and intellectual property contained herein is confidential between CIPHERLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing.
Page 3: For Canada
"Appareils Numeriques," NMB-003 edictee par l'Industrie. FOR HAND-HELD PRODUCT WITH RF FUNCTIONS The 1660/1661 unit (FCC ID: Q3N-1660, Q3N-1661) complies with FCC radiation exposure limits set forth for uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The unit has very low level of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR).
Page 4: Safety Precautions
The 3610 unit (FCC ID: Q3N-3610) complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. It only operated in hand-held used.
Page 5: Release Notes
New: 1.13 1661 Using Direct USB Cable New: 1.14 Hardware Reset Modified: 4.10 GS1-128 (EAN-128) — Cannot read when disabled since firmware v1.30 for 1660 Modified: 5.6.1 Edit a Concatenation of Barcodes — Code type for ISBT 128 New: 6.4.5 Pause Field Setting Modified: 6.5 Configuring Format —...
Page 6 Modified: 2.2 BT SPP Slave 1.11 Feb. 02, 2010 Modified: 2.3 BT SPP Master Modified: Restore System Defaults — add key combination 1.10 Jan. 05, 2010 Modified: 1.1.1 How to Operate the Scanner — add key combination to restore defaults during operation Modified: 1.1.2 Auto Power Off &...
Page 7 Modified: 3.2.2 Configure Related Settings — Use preset or random PIN for authentication Modified: 5.7 Removal of Special Character Modified: Appendix — preset random authentication Modified: 1.1.3 Auto Power Off 1.06 Feb. 26, 2009 Modified: 1.2.2 Memory Mode — 256 KB flash memory Modified: 1.3 LED Indicator Modified: 1.6 Scan Modes —...
Page 9: Table Of Contents
Care & Maintenance ........................- 4 - RELEASE NOTES ..........................- 5 - INTRODUCTION ............................ 1 Getting Familiarized with 1660/1661 and 3610 ................2 Installing Batteries to 1660/1661 ..................... 2 Charging the Battery for 1661 ....................3 Charging the Battery via Charger ....................4 Using 3610 ...........................
Page 10 1660 Barcode Scanner User Guide 1.4.2 Good Read Beep ......................33 1.4.3 Low Battery Alarm (1660) ....................34 1.4.4 Low Battery Alarm (1661) ....................34 1.5 Send “NR” to Host ........................35 1.6 Scan Modes ..........................36 1.6.1 Continuous Mode ......................37 1.6.2 Test Mode .........................37...
Page 11 1660 Barcode Scanner User Guide 2.4.4 HID Character Transmit Mode..................77 2.5 USB Virtual COM via 3610 .......................78 2.5.1 Activate USB Virtual COM ....................78 2.5.2 Inter-Function Delay......................78 2.5.3 ACK/NAK Timeout ......................79 2.6 Direct USB HID (1661 Memory Mode Only)................80 2.6.1 Activate USB HID &...
Page 12 1660 Barcode Scanner User Guide 4.7 Code 128 ..........................121 4.8 EAN-8............................122 4.8.1 Convert to EAN-13......................123 4.8.2 Transmit Check Digit......................123 4.9 EAN-13 ............................124 4.9.1 ISBN Conversion......................125 4.9.2 ISSN Conversion......................125 4.9.3 Transmit Check Digit......................125 4.9.4 Security Level .........................126 4.10 GS1-128 (EAN-128) ......................127 4.10.1 Code ID Transmission....................127...
Page 13 6.5 Configuring Format — Define Transmission Sequence ............191 6.6 Programming Examples ......................193 6.6.1 Example I ........................193 6.6.2 Example II ........................194 SPECIFICATIONS ..........................195 FIRMWARE UPGRADE........................197 How to Upgrade 1660/1661 Firmware..................197 Using 3610 ..........................197 Using Direct USB Virtual COM (1661 Only) ................199 Using Bluetooth Dongle ......................201 ®...
Page 14 1660 Barcode Scanner User Guide KEYBOARD WEDGE TABLE ......................213 Key Type & Status .........................214 Key Type............................214 Key Status ..........................214 Example ............................215 NUMERAL SYSTEMS........................217 Decimal System..........................217 Hexadecimal System........................218 ASCII Table.............................219 Entering PIN Code for Authentication ..................220 Use Preset PIN..........................220 Disable Authentication or Use Random PIN................221...
Page 15: Introduction
Owing to the compact design, extremely low power consumption, and powerful decoding capability, the 1660 Series Barcode Scanners are the best choice for the following applications – Receiving in Retail Product labeling &...
Page 16: Getting Familiarized With 1660/1661 And 3610
4) Hold the scanner still and insert the battery or batteries into the battery compartment. For 1660, install two AAA Alkaline batteries into the battery compartment, each in the right direction. 5) Replace the battery lid and lock it firmly.
Page 17: Charging The Battery For 1661
Introduction CHARGING THE BATTERY FOR 1661 The battery may not be charged to full for shipment. When you first receive the package, you will need to charge the battery to full before using the scanner. For 1661, use the Direct USB cable to connect the scanner to PC for charging. It takes approximately 4 hours to charge the battery to full.
Page 18: Charging The Battery Via Charger
1660 Barcode Scanner User Guide CHARGING THE BATTERY VIA CHARGER The battery charger is provided for charging the battery only. You may purchase the charger separately. It takes approximately 3 hours to charge the battery to full. Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It is recommended to charge the battery at room temperature (18°C to 25°C) for...
Page 19: Using 3610
Introduction USING 3610 The BT Transponder (3610) is specifically designed for the scanner to communicate with a host computer wirelessly. The connection between the scanners and 3610 is made easy and reliable. Refer to 3.1.1 Connect to 3610. There is one LED indicator provided for communications status. Communication LED Meaning Blue,...
Page 20: Inside The Package
User feedback via LED indicator and beeper Beeping tone and duration programmable for Good Read 1660: 256 KB flash memory for Memory Mode operation, storing up to 16,384 scans based on EAN-13 barcodes 1661: 512 KB flash memory for Memory Mode operation, storing up to 32,768 scans...
Page 21: Symbologies Supported
Introduction SYMBOLOGIES SUPPORTED Most of the popular barcode symbologies are supported, as listed below. Each can be individually enabled or disabled. The scanner will automatically discriminate and recognize all the symbologies that are enabled. Refer to Chapter 4 Changing Symbology Settings for details of each symbology.
Page 22 1660 Barcode Scanner User Guide DataBar GS1 DataBar Omnidirectional (RSS-14) Disabled (RSS) GS1 DataBar Truncated Disabled GS1 DataBar Stacked Disabled GS1 DataBar Stacked Omnidirectional Disabled GS1 DataBar Limited (RSS Limited) Disabled GS1 DataBar Expanded (RSS Expanded) Disabled GS1 DataBar Expanded Stacked...
Page 23: Quick Start
QUICK START The configuration of the scanner can be done by reading the setup barcodes contained in this manual or via the ScanMaster software. This section describes the procedure of configuring the scanner by reading the setup barcodes and provides some examples for demonstration. Configuration Mode Hold down the [Power/Delete] key for about 2 seconds to turn on the scanner.
Page 24 1660 Barcode Scanner User Guide Working Mode Upon powering up, the scanner will try to establish a connection with 3610 or a computer with ® Bluetooth wireless technology. Refer to Chapter 3 – Setting up a WPAN Connection for details.
Page 25: Enter Configuration Mode
Quick Start ENTER CONFIGURATION MODE For the scanner to enter the configuration mode, you must have it read the "Enter Setup" barcode, which can be located at the bottom of almost every even page of this manual. The scanner will respond with six beeps and its LED indicator will become flashing red after reading the barcode.
Page 26: Default Settings
1660 Barcode Scanner User Guide DEFAULT SETTINGS SAVE USER SETTINGS AS DEFAULTS For the scanner to keep the customized settings as user defaults, you must have it read the “Save as User Defaults” barcode. This is a normal setup barcode, and the scanner will respond with two beeps (low-high tone).
Page 27: Read A Setup Barcode
Quick Start READ A SETUP BARCODE CONFIGURE PARAMETERS For most of the scanner parameters, only one read is required to set them to new values. The scanner will respond with two beeps (low-high tone) when each parameter is set successfully. Refer to Create One-Scan Setup Barcodes.
Page 28 1660 Barcode Scanner User Guide The example below shows how to save your settings as “User Default” so that you may restore user defaults at a later time: Steps Action User Feedback if Successful Power on the scanner… The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
Page 29 Quick Start The example below shows how to set numeric parameters: Steps Action User Feedback if Successful Power on the scanner... The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly. Enter the Configuration Mode…...
Page 30 1660 Barcode Scanner User Guide The example below shows how to set string parameters: Steps Action User Feedback if Successful Power on the scanner... The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
Page 31: List The Current Settings
Quick Start LIST THE CURRENT SETTINGS The current settings of all scanner parameters can be sent to the host computer for user inspection. The listing includes pages as shown below. You can select the page of interest by having the scanner read the “List Page x” barcode. The scanner will respond with two beeps (low-high tone) and send the selected page to the host immediately.
Page 32 1660 Barcode Scanner User Guide List settings regarding Editing Format 4 List Page 11 List settings regarding Editing Format 5 List Page 12 Enter Setup...
Page 33: Create One-Scan Setup Barcodes
Quick Start CREATE ONE-SCAN SETUP BARCODES The fact is most of the scanner parameters require only one read for setting new values. To facilitate configuring the scanner, you may create One-Scan setup barcodes for use. The requirements of a One-Scan setup barcode are: a prefix of the “#@”...
Page 34 1660 Barcode Scanner User Guide Enter Setup...
Page 35: Understanding The Barcode Scanner
1.14 Hardware Reset ............49 1.1 BATTERY The scanner is battery-powered: 1660 uses two AAA Alkaline batteries, while 1661 uses a rechargeable 3.7 V/850 mAh Li-ion battery. For intensive data collection, you may prepare spare battery or batteries for non-stop operation.
Page 36 1660 Barcode Scanner User Guide Delete the last collected data when in memory mode … Press the [Power/Delete] key. The scanner will respond with two short beeps (high tone) and the LED will become solid red. Before the LED goes off (within 1 second), press the [Power/Delete] key again to confirm the deletion.
Page 37: Auto Power Off & Power-Saving
Chapter 1 Understanding the Barcode Scanner 1.1.2 AUTO POWER OFF & POWER-SAVING The scanner will stay active at power-on, which may be followed by a transition from full CPU speed to low CPU speed (Power-Saving) to auto shutdown (Auto Power Off). Power-Saving (1~254 min.;...
Page 38 1660 Barcode Scanner User Guide After establishing a WPAN connection successfully… Once a WPAN connection is established successfully, the scanner will stay active for a specified period of time (2 minutes by default) for data transmission. Its CPU is running at full speed, and the LED is flashing blue (On/Off ratio 0.02 s: 3 s).
Page 39 Chapter 1 Understanding the Barcode Scanner Auto Off after 0~254 min. (*10) 1) Read the barcode above to specify the time interval before the scanner automatically turns off. 2) Read the “Decimal Value” barcode on page 217. For example, read “1” and “5” for the scanner to automatically turn off after being idle for 15 minutes.
Page 40: Memory
1660 Barcode Scanner User Guide 1.2 MEMORY The collected data can be sent back to a host computer one by one via the WPAN connection or stored in flash memory when the scanner is set to Memory mode. 1.2.1 TRANSMIT BUFFER By default, transmit buffer is enabled and for use when the scanner is out of range.
Page 41: Memory Mode
When the scanner is in memory mode, it means any real-time connection established with host is disabled. The 1660 scanner keeps 256 KB flash memory for memory mode operation. The 1661 scanner keeps 512 KB flash memory for memory mode operation.
Page 42 8 sec Send Data For 1660, the 256 KB flash memory can store up to 16,384 scans based on EAN-13 barcodes. For 1661, the 512 KB flash memory can store up to 32,768 scans based on EAN-13 barcodes. When it is used up, the scanner will respond with two short beeps (high-low tone) as a warning.
Page 43: Led Indicator
Chapter 1 Understanding the Barcode Scanner 1.3 LED INDICATOR The triple-color LED on top of the scanner is used to provide user feedback. For example, the LED becomes solid red and goes off quickly upon powering on or running out of transmit buffer.
Page 44: Good Read Led
1660 Barcode Scanner User Guide 1.3.1 GOOD READ LED *Enable Good Read LED Disable Good Read LED 1.3.2 GOOD READ LED DURATION By default, the Good Read LED stays on for 40 milliseconds. Specify a value, ranging from 1 to 254 in units of 10 milliseconds.
Page 45: Beeper
Chapter 1 Understanding the Barcode Scanner 1.4 BEEPER The scanner has a buzzer to provide user feedback in various operating conditions. Beeping Meaning One long beep, high tone Power on, with red LED on (1 second) and off quickly Power off, with red LED on (until the key is released) two short beeps, high tone Delete the last collected data in memory mode, with red LED on (1 second) and off quickly...
Page 46: Beeper Volume
1660 Barcode Scanner User Guide 1.4.1 BEEPER VOLUME Mute Minimum Volume Medium Volume *Maximum Volume Enter Setup...
Page 47: Good Read Beep
Chapter 1 Understanding the Barcode Scanner 1.4.2 GOOD READ BEEP Frequency 8 kHz *4 kHz 2 kHz 1 kHz Duration *Shortest Shorter Longer Longest Update...
Page 48: Low Battery Alarm (1660)
By default, “2.6 V (Alkaline)” is selected for low battery level. When the battery level inside the 1660 scanner reaches 2.6 V, it will activate the beeper to give a warning. If you are using Ni-MH batteries, select “2.1 V (Ni-MH)”. In order to prevent data loss, you are advised to replace the batteries immediately when you hear two short beeps (high tone).
Page 49: Send "Nr" To Host
Chapter 1 Understanding the Barcode Scanner 1.5 SEND “NR” TO HOST The scanner can send the “NR” string to the host to notify the No Read event. Enable *Disable Update...
Page 50: Scan Modes
1660 Barcode Scanner User Guide 1.6 SCAN MODES Different scan modes are supported – select the scan mode that best suits the requirements of a specific application. Refer to the comparison table below. Scan Mode Start to Scan Stop Scanning...
Page 51: Continuous Mode
Chapter 1 Understanding the Barcode Scanner 1.6.1 CONTINUOUS MODE The scanner is always scanning. After a successful decoding, the removal of barcode is required. It is not allowed to proceed to decode until the decoding delay time has passed. To decode the same barcode repeatedly, move away the barcode and put it back again and again for scanning.
Page 52: Laser Mode
1660 Barcode Scanner User Guide 1.6.3 LASER MODE The scanner will start scanning once the trigger is held down. The scanning won't stop until (1) a barcode is decoded, (2) the pre-set timeout expires, or (3) you release the trigger.
Page 53: Alternate Mode
Chapter 1 Understanding the Barcode Scanner 1.6.6 ALTERNATE MODE The scanner will start scanning once the trigger is pressed The scanning won't stop until you press the trigger again. Alternate Mode 1.6.7 AIMING MODE The scanner will aim at a barcode once the trigger is pressed, and start scanning when the trigger is pressed again within one second.
Page 54: Multi-Barcode Mode
1660 Barcode Scanner User Guide 1.6.8 MULTI-BARCODE MODE The scanner will be scanning as long as the trigger is held down, capable of decoding one single barcode, as well as a multiple unique barcodes one at a time. While decoding a bunch of unique barcodes, if a barcode is decoded twice, its subsequent decoding will be ignored and the scanner is expecting another unique barcode.
Page 55: Scanning Timeout
Chapter 1 Understanding the Barcode Scanner 1.7 SCANNING TIMEOUT Specify the scanning time interval (1~254 sec.; 0= Disable) when the scan mode is set to any of the following – Laser mode Auto Off mode Auto Power Off mode Aiming mode Scanner Time-out after 0~254 sec.
Page 56: Delay Between Re-Read
1660 Barcode Scanner User Guide 1.8 DELAY BETWEEN RE-READ This is also referred to as the “Blocking Time”, which is used to prevent the scanner from accidentally reading the same barcode twice when the scan mode is set to any of the following –...
Page 57: Read Redundancy For All Symblogies
Chapter 1 Understanding the Barcode Scanner 1.9 READ REDUNDANCY FOR ALL SYMBLOGIES Select the level of reading security. For example, If "No Redundancy" is selected, one successful decoding will make the reading valid and induce the "READER Event". If "Three Times" is selected, it will take a total of four consecutive successful decoding of the same barcode to make the reading valid.
Page 58: Addon Security For Upc/Ean Barcodes
1660 Barcode Scanner User Guide 1.10 ADDON SECURITY FOR UPC/EAN BARCODES The scanner is capable of decoding a mix of UPC/EAN barcodes with and without addons. The read redundancy (0~30 times) allows changing the number of times to decode a UPC/EAN barcode before transmission.
Page 59: Negative Barcodes
Chapter 1 Understanding the Barcode Scanner 1.11 NEGATIVE BARCODES Normally, barcodes are printed with the color of the bars darker than that of the spaces. But for negative barcodes, they are printed in the opposite sense just like negative films. The spaces of negative barcodes are printed with a color darker than that of the bars.
Page 60: Effective Decoding Area
1660 Barcode Scanner User Guide 1.12 EFFECTIVE DECODING AREA By default, the effective decoding area is 100% covered by the scanned area. However, you may narrow down the decoding area to prevent reading the wrong barcode when a number of barcodes are printed closely. The scanner will only read barcodes that appear in the effective decoding area.
Page 61: Adjusting Window
Chapter 1 Understanding the Barcode Scanner 1.12.2 ADJUSTING WINDOW Percentage for Left Half *Left 50% Left 40% Left 30% Left 20% Left 10% Percentage for Right Half Right 10% Right 20% Right 30% Right 40% *Right 50% Update...
Page 62: 1661 Using Direct Usb Cable
1660 Barcode Scanner User Guide 1.13 1661 USING DIRECT USB CABLE 1661 supports Direct USB interface for charging the battery and/or sending data to host in memory mode. Refer to 1.2.2 Memory Mode. Note: The scanner is not allowed to function when it is solely on USB power and without a battery loaded.
Page 63: Hardware Reset
(high tone), release the keys. Note: (1) After reset connection by hardware, the scanner will not restart itself automatically. It will resume to its previous operation except no connection. (2) For 1660, firmware version 1.34 or later is required. Update...
Page 64 1660 Barcode Scanner User Guide Enter Setup...
Page 65: Selecting Output Interface
Chapter 2 SELECTING OUTPUT INTERFACE In order to establish a proper connection between your computer and the scanner, we suggest that you follow these instructions – 1) Install batteries and hold down the [Power/Delete] key for about 2 seconds to turn on the scanner.
Page 66: Bt Hid
1660 Barcode Scanner User Guide 2.1 BT HID For BT HID, refer to Chapter 3 – Setting up a WPAN Connection for related connection settings. Run any text editor on your computer, and the scanned data will be transmitted to the computer.
Page 67: Reset Connection
Chapter 2 Selecting Output Interface BT HID By default, the keyboard type is set to PCAT (US). The following keyboard types are supported — Keyboard Type Keyboard Type PCAT (US) PCAT (Belgium) PCAT (French) PCAT (Spanish) PCAT (German) PCAT (Portuguese) PCAT (Italy) PS55 A01-2 (Japanese) PCAT (Swedish)
Page 68: Keyboard Settings
1660 Barcode Scanner User Guide 2.1.3 KEYBOARD SETTINGS Alphabets Layout Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission Note: BT HID does not support these functions on PDAs – (1) Capital Lock Setting: Auto Detection (2) Digits Transmission: Numeric Key Alphabets Layout By default, the alphabets layout is set to normal mode, also known as the standard English layout.
Page 69 Chapter 2 Selecting Output Interface US Keyboard Style – Normal QWERTY layout, which is normally used in western countries. Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters. French Keyboard Style – AZERTY French layout;...
Page 70 1660 Barcode Scanner User Guide Digits Layout Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting. Options Description Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard...
Page 71 Chapter 2 Selecting Output Interface Capital Lock Type & Setting In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
Page 72 1660 Barcode Scanner User Guide *Capital Lock OFF Enter Setup...
Page 73 Chapter 2 Selecting Output Interface Alphabets Transmission By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.
Page 74 1660 Barcode Scanner User Guide Digits Transmission By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad. Numeric Key *Alphanumeric Key Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard should be “ON”.
Page 75: Inter-Function Delay
Chapter 2 Selecting Output Interface 2.1.4 INTER-FUNCTION DELAY By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.
Page 76: Keypad Support For Iphone/Ipad
1660 Barcode Scanner User Guide 2.1.6 KEYPAD SUPPORT FOR IPHONE/IPAD When the scanner has been successfully connected to iPhone or iPad for data collection, the onscreen keypad of iPhone or iPad will disappear. You may have the scanner read the “Use POWER Key to Show or Hide Keypad”...
Page 77: Bt Spp Slave
Chapter 2 Selecting Output Interface 2.2 BT SPP SLAVE For BT SPP Slave, refer to Chapter 3 – Setting up a WPAN Connection for related connection settings. 2.2.1 ACTIVATE BT SPP SLAVE MODE This is SPP Slave Mode. Activate BT SPP, Slave Mode 2.2.2 INTER-FUNCTION DELAY By default, the inter-function delay is set to zero.
Page 78: Ack/Nak Timeout
1660 Barcode Scanner User Guide 2.2.3 ACK/NAK TIMEOUT By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If no response within the specified period of time, the scanner will attempt to send the same data two more times.
Page 79: Bt Spp Master
Chapter 2 Selecting Output Interface 2.3 BT SPP MASTER As a SPP master device, the scanner will be able to resume connection with the host upon powering on again, as long as the host application is running. If the scanner fails to resume connection, it will try every 5 seconds to re-connect to the host unless you have the scanner read the “Reset Connection”...
Page 80 1660 Barcode Scanner User Guide Note: Read the “Set Connection” barcode first, and then the “MAC ID” barcode within 10 seconds. Instead of producing the “MAC ID” barcode, you may have the scanner read the setup barcodes for entering the MAC address.
Page 81: Inter-Function Delay
Chapter 2 Selecting Output Interface 2.3.2 INTER-FUNCTION DELAY By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.
Page 82: Ack/Nak Timeout
1660 Barcode Scanner User Guide 2.3.3 ACK/NAK TIMEOUT By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If no response within the specified period of time, the scanner will attempt to send the same data two more times.
Page 83: Usb Hid Via 3610
Chapter 2 Selecting Output Interface 2.4 USB HID VIA 3610 For USB HID, connect 3610 to the USB port of PC, and then connect the scanner to 3610. Run any text editor on your computer, and the scanned data will be transmitted to the computer.
Page 84: Keyboard Settings
1660 Barcode Scanner User Guide 2.4.2 KEYBOARD SETTINGS Alphabets Layout Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission Alphabets Layout By default, the alphabets layout is set to normal mode, also known as the standard English layout.
Page 85 Chapter 2 Selecting Output Interface US Keyboard Style – Normal QWERTY layout, which is normally used in western countries. Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters. French Keyboard Style – AZERTY French layout;...
Page 86 1660 Barcode Scanner User Guide Digits Layout Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting. Options Description Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard...
Page 87 Chapter 2 Selecting Output Interface Capital Lock Type & Setting In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
Page 88 1660 Barcode Scanner User Guide *Capital Lock OFF Enter Setup...
Page 89 Chapter 2 Selecting Output Interface Alphabets Transmission By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.
Page 90 1660 Barcode Scanner User Guide Digits Transmission By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad. Numeric Key *Alphanumeric Key Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard should be "ON".
Page 91: Inter-Function Delay
Chapter 2 Selecting Output Interface 2.4.3 INTER-FUNCTION DELAY By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.
Page 92: Usb Virtual Com Via 3610
1660 Barcode Scanner User Guide 2.5 USB VIRTUAL COM VIA 3610 Connect 3610 to the USB port of PC, and then connect the scanner to 3610. You may run HyperTerminal.exe on your computer, and the scanned data will be transmitted to the computer.
Page 93: Ack/Nak Timeout
Chapter 2 Selecting Output Interface 2.5.3 ACK/NAK TIMEOUT By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If no response within the specified period of time, the scanner will attempt to send the same data two more times.
Page 94: Direct Usb Hid (1661 Memory Mode Only)
1660 Barcode Scanner User Guide 2.6 DIRECT USB HID (1661 MEMORY MODE ONLY) Only 1661 supports “Direct” USB HID interface for memory mode. Use the provided USB cable to connect 1661 to the USB port of PC. Run any text editor on your computer, and the scanned data will be transmitted to the computer.
Page 95: Keyboard Settings
Chapter 2 Selecting Output Interface 2.6.2 KEYBOARD SETTINGS Alphabets Layout Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission Alphabets Layout By default, the alphabets layout is set to normal mode, also known as the standard English layout. Select French or German keyboard layout if necessary.
Page 96 1660 Barcode Scanner User Guide US Keyboard Style – Normal QWERTY layout, which is normally used in western countries. Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters. French Keyboard Style – AZERTY French layout;...
Page 97 Chapter 2 Selecting Output Interface Digits Layout Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting. Options Description Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard Upper Row For AZERTY keyboard *Normal...
Page 98 1660 Barcode Scanner User Guide Capital Lock Type & Setting In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
Page 99 Chapter 2 Selecting Output Interface *Capital Lock OFF Update...
Page 100 1660 Barcode Scanner User Guide Alphabets Transmission By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.
Page 101 Chapter 2 Selecting Output Interface Digits Transmission By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad. Numeric Key *Alphanumeric Key Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard should be "ON".
Page 102: Inter-Function Delay
1660 Barcode Scanner User Guide 2.6.3 INTER-FUNCTION DELAY By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.
Page 103: Direct Usb Virtual Com (1661 Memory Mode Only)
Chapter 2 Selecting Output Interface 2.7 DIRECT USB VIRTUAL COM (1661 MEMORY MODE ONLY) Only 1661 supports “Direct” USB Virtual COM interface for memory mode. Use the provided USB cable to connect 1661 to the USB port of PC. You may run HyperTerminal.exe on your computer, and the scanned data will be transmitted to the computer.
Page 104: Ack/Nak Timeout
1660 Barcode Scanner User Guide 2.7.3 ACK/NAK TIMEOUT By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If no response within the specified period of time, the scanner will attempt to send the same data two more times.
Page 105: Setting Up A Wpan Connection
Chapter 3 SETTING UP A WPAN CONNECTION The scanner can be configured to send data to a host computer wirelessly via the 3610 ® dongle, or to a notebook computer or PDA with Bluetooth wireless technology. Upon powering up, the scanner will be ready for establishing a WPAN connection. To establish a connection via 3610 after reading “Set Connection”...
Page 106: Connecting Via 3610
1660 Barcode Scanner User Guide 3.1 CONNECTING VIA 3610 By default, the interface of 3610 is set to “USB HID”. Connect 3610 to the USB port of PC, and then connect the scanner to 3610. You can have up to seven scanners connected to one computer at the same time.
Page 107: Change Interface
Chapter 3 Setting up a WPAN Connection 3.1.2 CHANGE INTERFACE If you want to change the interface 3610, use one of the connected scanners to configure the interface-related settings and it will pass the new settings to 3610, which will then initialize and pass the settings to any other connected scanners.
Page 108: Configure Related Settings
1660 Barcode Scanner User Guide 3.1.3 CONFIGURE RELATED SETTINGS Sniff Mode (Power-saving) By default, this feature is enabled, meaning the scanner will listen to the wireless network at a reduced rate. *Enable Disable Enter Setup...
Page 109: Connecting Via Bluetooth ® Dongle
Chapter 3 Setting up a WPAN Connection 3.2 CONNECTING VIA BLUETOOTH DONGLE ® 3.2.1 CHANGE INTERFACE Below is the procedure to configure the scanner before establishing a WPAN connection ® via Bluetooth dongle. 1) Have the scanner read the “Enter Setup” barcode to enter the configuration mode. 2) Have the scanner read the desired interface barcode –...
Page 110: Configure Related Settings
1660 Barcode Scanner User Guide 3.2.2 CONFIGURE RELATED SETTINGS Sniff Mode (Power-saving) By default, this feature is enabled, meaning the scanner will listen to the wireless network at a reduced rate. *Enable Disable Note: When connecting more than two scanners to a notebook computer or PDA with ®...
Page 111 Chapter 3 Setting up a WPAN Connection Authentication When any changes are made to authentication and PIN code on the scanner side, you will have to remove the scanner from the paired device list (called unpairing) and go through the whole process to re-establish the connection.
Page 112 1660 Barcode Scanner User Guide Use random PIN No PIN required Note: When using BT HID, some device driver may not support pre-defined PIN code for authentication. In this case, make sure you have the scanner set to “No PIN or use random PIN”...
Page 113: Connect To Dongle
Chapter 3 Setting up a WPAN Connection 3.2.3 CONNECT TO DONGLE The procedure goes through associating devices for establishing a WPAN connection, which is pretty much the same except for the software you are using. If your computer is ® ®...
Page 114 1660 Barcode Scanner User Guide Turn on the scanner with correct WPAN settings, such as select BT SPP or BT HID, broadcasting enabled, authentication enabled, and PIN code specified, etc. Select the check box of [My device is set up and ready to be found] on your computer.
Page 115 Chapter 3 Setting up a WPAN Connection Click [Next]. Enter the passkey for authentication, which must be exactly the same as configured for the scanner. Update...
Page 116 1660 Barcode Scanner User Guide Click [Next]. Wait for a few seconds for Windows to exchange passkeys. Enter Setup...
Page 117 Chapter 3 Setting up a WPAN Connection Note: When Bluetooth security is enabled without providing a pre-set PIN code, dynamic input of PIN code is supported. Click [Finish]. 1660/1661 as BT SPP Slave 1660/1661 as BT SPP Master Update...
Page 118 1660 Barcode Scanner User Guide Now the target scanner will be listed as shown below. You can have up to seven scanners connected to one computer at the same time. Select and Remove Note: When any changes are made to authentication and PIN code on the scanner side,...
Page 119 Chapter 3 Setting up a WPAN Connection BT SPP Connected BT SPP Disconnected Update...
Page 120 1660 Barcode Scanner User Guide Enter Setup...
Page 121: Changing Symbology Settings
Chapter 4 CHANGING SYMBOLOGY SETTINGS In this chapter, a brief on the symbology settings is provided for your reference. IN THIS CHAPTER 4.1 Codabar ..............108 4.2 Code 25 - Industrial 25..........110 4.3 Code 25 - Interleaved 25 ...........113 4.4 Code 25 - Matrix 25 ..........116 4.5 Code 39 ..............119 4.6 Code 93 ..............121 4.7 Code 128..............121...
Page 122: Codabar
1660 Barcode Scanner User Guide 4.1 CODABAR *Enable Disable 4.1.1 START/STOP CHARACTERS SELECTION Select one of the four different start/stop character pairs – * abcd/abcd abcd/tn*e ABCD/ABCD ABCD/TN*E Enter Setup...
Page 123: Start/Stop Transmission
Chapter 4 Changing Symbology Settings 4.1.2 START/STOP TRANSMISSION Decide whether to include the start/stop characters in the data being transmitted. Transmit Start/Stop Characters *Do Not Transmit 4.1.3 CLSI CONVERSION When enabled, the CLSI editing strips the start/stop characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar barcode.
Page 124: Code 25 - Industrial 25
1660 Barcode Scanner User Guide 4.2 CODE 25 – INDUSTRIAL 25 *Enable Disable 4.2.1 START/STOP PATTERN SELECTION This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".
Page 125: Verify Check Digit
Chapter 4 Changing Symbology Settings 4.2.2 VERIFY CHECK DIGIT Decide whether to verify the check digit. If incorrect, the barcode will not be accepted. Verify Industrial 25 Check Digit *Do Not Verify 4.2.3 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit Industrial 25 Check Digit...
Page 126: Code Length Qualification
1660 Barcode Scanner User Guide 4.2.4 CODE LENGTH QUALIFICATION To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length. If "Max/Min Length" is selected, the maximum length and the minimum length must be specified.
Page 127: Code 25 - Interleaved 25
Chapter 4 Changing Symbology Settings 4.3 CODE 25 – INTERLEAVED 25 *Enable Disable 4.3.1 START/STOP PATTERN SELECTION This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".
Page 128: Verify Check Digit
1660 Barcode Scanner User Guide 4.3.2 VERIFY CHECK DIGIT Decide whether to verify the check digit. If incorrect, the barcode will not be accepted. Verify Interleaved 25 Check Digit *Do Not Verify 4.3.3 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted.
Page 129: Code Length Qualification
Chapter 4 Changing Symbology Settings 4.3.4 CODE LENGTH QUALIFICATION To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length. If "Max/Min Length" is selected, the maximum length and the minimum length must be specified.
Page 130: Code 25 - Matrix 25
1660 Barcode Scanner User Guide 4.4 CODE 25 – MATRIX 25 Enable *Disable 4.4.1 START/STOP PATTERN SELECTION This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".
Page 131: Verify Check Digit
Chapter 4 Changing Symbology Settings 4.4.2 VERIFY CHECK DIGIT Decide whether to verify the check digit. If incorrect, the barcode will not be accepted. Verify Matrix 25 Check Digit *Do Not Verify 4.4.3 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit Matrix 25 Check Digit Do Not Transmit...
Page 132: Code Length Qualification
1660 Barcode Scanner User Guide 4.4.4 CODE LENGTH QUALIFICATION To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length. If "Max/Min Length" is selected, the maximum length and the minimum length must be specified.
Page 133: Code 39
Chapter 4 Changing Symbology Settings 4.5 CODE 39 *Enable Disable 4.5.1 START/STOP TRANSMISSION Decide whether to include the start/stop characters in the data being transmitted. Transmit Code 39 Start/Stop Characters *Do Not Transmit 4.5.2 VERIFY CHECK DIGIT Decide whether to verify check digit. If incorrect, the barcode will not be accepted. Verify Code 39 Check Digit *Do Not Verify...
Page 134: Transmit Check Digit
1660 Barcode Scanner User Guide 4.5.3 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit Code 39 Check Digit Do Not Transmit 4.5.4 STANDARD/FULL ASCII CODE 39 Decide whether to support Code 39 Full ASCII that includes all the alphanumeric and special characters.
Page 135: Code 93
Chapter 4 Changing Symbology Settings 4.6 CODE 93 *Enable Disable 4.7 CODE 128 *Enable Disable Update...
Page 136: Ean-8
1660 Barcode Scanner User Guide 4.8 EAN-8 EAN-8 *Enable EAN-8 (No Addon) Disable EAN-8 Addon 2 Enable EAN-8 Addon 2 *Disable EAN-8 Addon 5 Enable EAN-8 Addon 5 *Disable Enter Setup...
Page 137: Convert To Ean-13
Chapter 4 Changing Symbology Settings 4.8.1 CONVERT TO EAN-13 Decide whether to expand the read EAN-8 barcode, as well as its addons, into EAN-13. After conversion, the data follows EAN-13 format and is affected by EAN-13 programming selections (e.g. Check Digit). Convert EAN-8 to EAN-13 *Do Not Convert...
Page 138: 124
1660 Barcode Scanner User Guide 4.9 EAN-13 EAN-13 *Enable EAN-13 (No Addon) Disable EAN-13 Addon 2 Enable EAN-13 Addon 2 *Disable EAN-13 Addon 5 Enable EAN-13 Addon 5 *Disable Enter Setup...
Page 139: Isbn Conversion
Chapter 4 Changing Symbology Settings 4.9.1 ISBN CONVERSION Decide whether to convert the EAN-13 barcode, starting with 978 and 979, to ISBN. Convert EAN-13 to ISBN *Do Not Convert 4.9.2 ISSN CONVERSION Decide whether to convert the EAN-13 barcode, starting with 977 to ISSN. Convert EAN-13 to ISSN *Do Not Convert...
Page 140: Security Level
1660 Barcode Scanner User Guide 4.9.4 SECURITY LEVEL Select the security level for reading EAN-13 barcodes. Normal *High Enter Setup...
Page 141: Gs1-128 (Ean-128)
Enable *Disable Note: GS1-128 barcodes can be decoded only when this setting is enabled. However, for 1660 with firmware version no later than 1.30, GS1-128 barcodes are taken as Code 128 when this setting is disabled. 4.10.1 CODE ID TRANSMISSION Decide whether to include the Code ID ("...
Page 142: Isbt 128
1660 Barcode Scanner User Guide 4.11 ISBT 128 *Enable Disable Note: When enabled, it not only can decode single ISBT barcode, but also decode and concatenates pairs of ISBT barcodes. Enter Setup...
Page 143: Msi
Chapter 4 Changing Symbology Settings 4.12 MSI Enable *Disable 4.12.1 VERIFY CHECK DIGIT Select one of the three calculations to verify check digit when decoding barcodes. If incorrect, the barcode will not be accepted. *Single Modulo 10 Double Modulo 10 Modulo 10 &...
Page 144: Code Length Qualification
1660 Barcode Scanner User Guide 4.12.3 CODE LENGTH QUALIFICATION To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length. If "Max/Min Length" is selected, the maximum length and the minimum length must be specified.
Page 145: French Pharmacode
Chapter 4 Changing Symbology Settings 4.13 FRENCH PHARMACODE Enable *Disable 4.13.1 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit French Pharmacode Check Digit Do Not Transmit Update...
Page 146: Italian Pharmacode
1660 Barcode Scanner User Guide 4.14 ITALIAN PHARMACODE Enable *Disable 4.14.1 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted. *Transmit Italian Pharmacode Check Digit Do Not Transmit Enter Setup...
Page 147: Plessey
Chapter 4 Changing Symbology Settings 4.15 PLESSEY Enable *Disable 4.15.1 CONVERT TO UK PLESSEY Decide whether to change each occurrence of the character 'A' to character 'X' in the decoded data. Convert to UK Plessey *Do Not Convert 4.15.2 TRANSMIT CHECK DIGIT Decide whether to include the two check digits in the data being transmitted.
Page 148: Gs1 Databar (Rss Family)
1660 Barcode Scanner User Guide 4.16 GS1 DATABAR (RSS FAMILY) It is categorized into three groups: Group I — GS1 DataBar Omnidirectional (RSS-14) GS1 DataBar Omnidirectional This group consists of the following: GS1 DataBar Truncated GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional Group II —...
Page 149: Gs1 Databar Omnidirectional (Rss-14)
Chapter 4 Changing Symbology Settings 4.16.2 GS1 DATABAR OMNIDIRECTIONAL (RSS-14) Enable RSS-14 & RSS Expanded (Groups I, II) *Disable The settings below apply to Group I symbologies only: GS1 DataBar Omnidirectional GS1 DataBar Truncated GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional Transmit Code ID Decide whether to include the Code ID in the data being transmitted.
Page 150 1660 Barcode Scanner User Guide Transmit Check Digit Decide whether to include the check digit in the data being transmitted. *Transmit RSS-14 Check Digit Do Not Transmit Enter Setup...
Page 151: Gs1 Databar Expanded (Rss Expanded)
Chapter 4 Changing Symbology Settings 4.16.3 GS1 DATABAR EXPANDED (RSS EXPANDED) Enable RSS-14 & RSS Expanded (Groups I, II) *Disable The settings below apply to Group II symbologies only: GS1 DataBar Expanded GS1 DataBar Expanded Stacked Transmit Code ID Decide whether to include the Code ID in the data being transmitted. *Transmit RSS Expanded Code ID Do Not Transmit...
Page 152: Gs1 Databar Limited (Rss Limited)
1660 Barcode Scanner User Guide 4.16.4 GS1 DATABAR LIMITED (RSS LIMITED) Enable RSS Limited (Group III) *Disable Transmit Code ID Decide whether to include the Code ID in the data being transmitted. *Transmit RSS Limited Code ID Do Not Transmit Transmit Application ID Decide whether to include the Application ID ("01") in the data being transmitted.
Page 153: Telepen
Chapter 4 Changing Symbology Settings 4.17 TELEPEN Enable Telepen *Disable 4.17.1 TELEPEN OUTPUT – FULL ASCII/NUMERIC Decide whether to support Telepen in full ASCII code. By default, it supports ASCII mode. AIM Telepen (Full ASCII) includes all the alphanumeric and special characters. Original Telepen (Numeric) *AIM Telepen...
Page 154: Upc-A
1660 Barcode Scanner User Guide 4.18 UPC-A UPC-A *Enable UPC-A (No Addon) Disable UPC-A Addon 2 Enable UPC-A Addon 2 *Disable UPC-A Addon 5 Enable UPC-A Addon 5 *Disable Enter Setup...
Page 155: Convert To Ean-13
Chapter 4 Changing Symbology Settings 4.18.1 CONVERT TO EAN-13 Decide whether to expand the read UPC-A barcode, as well as its addons, into EAN-13. After conversion, the data follows EAN-13 format and is affected by EAN-13 programming selections (e.g. Check Digit). Convert UPC-A to EAN-13 *Do Not Convert...
Page 156: Upc-E
1660 Barcode Scanner User Guide 4.19 UPC-E UPC-E *Enable UPC-E (No Addon) Disable UPC-E Addon 2 Enable UPC-E Addon 2 *Disable UPC-E Addon 5 Enable UPC-E Addon 5 *Disable Enter Setup...
Page 157: System Number Selection
Chapter 4 Changing Symbology Settings 4.19.1 SYSTEM NUMBER SELECTION Decide whether to decode the ordinary UPC-E barcodes only or both UPC-E0 and UPC-E1 barcodes. System number enabled for decoding UPC-E0 barcodes. System number enabled for decoding UPC-E1 barcodes. System Number 0 & 1 *System Number 0 Only Warning: Because of the way system number 1 is encoded, if both system numbers...
Page 158: System Number Transmission
1660 Barcode Scanner User Guide 4.19.3 SYSTEM NUMBER TRANSMISSION Decide whether to include the system number in the data being transmitted. Transmit UPC-E System Number *Do Not Transmit 4.19.4 TRANSMIT CHECK DIGIT Decide whether to include the check digit in the data being transmitted.
Page 159: Defining Output Format
Chapter 5 DEFINING OUTPUT FORMAT You may configure in which format the collected data will be output to the host computer. Barcode read by the scanner will be processed in the following sequence – 1) Perform character substitution on the data scanned. 2) Add Code ID Length Code...
Page 160: Character Substitution
1660 Barcode Scanner User Guide 5.2 CHARACTER SUBSTITUTION Character substitution is performed on every occurrence of the first character specified. If only one character is specified, every occurrence of that character in the barcode will be taken away. The first character will be replaced by the second character(s).
Page 161: Select A Set For Character Substitution
Chapter 5 Defining Output Format 5.2.1 SELECT A SET FOR CHARACTER SUBSTITUTION Configure Set 1 Configure Set 2 Configure Set 3 1) Read the barcode above to enable character substitution by set. For example, have the scanner read the “Set 1” barcode to configure the first set of character substitution.
Page 162: Symbologies For Character Substitution (All 3 Sets)
1660 Barcode Scanner User Guide 5.2.2 SYMBOLOGIES FOR CHARACTER SUBSTITUTION (ALL 3 SETS) By default character substitution will be performed on all symbologies. If the character substitution is not desired with one or more symbologies, read the “Do Not Apply”...
Page 163 Chapter 5 Defining Output Format Character Substitution for GS1-128 *Apply Do Not Apply Character Substitution for ISBT 128 *Apply Do Not Apply Character Substitution for EAN-8 (No Addon) *Apply Do Not Apply Character Substitution for EAN-8 Addon 2 *Apply Do Not Apply Character Substitution for EAN-8 Addon 5 *Apply Do Not Apply...
Page 164 1660 Barcode Scanner User Guide Character Substitution for EAN-13 (No Addon) *Apply Do Not Apply Character Substitution for EAN-13 Addon 2 *Apply Do Not Apply Character Substitution for EAN-13 Addon 5 *Apply Do Not Apply Character Substitution for French Pharmacode...
Page 165 Chapter 5 Defining Output Format Character Substitution for Industrial 25 *Apply Do Not Apply Character Substitution for Interleaved 25 *Apply Do Not Apply Character Substitution for Matrix 25 *Apply Do Not Apply Character Substitution for MSI *Apply Do Not Apply Character Substitution for Plessey *Apply Do Not Apply...
Page 166 1660 Barcode Scanner User Guide Character Substitution for GS1 DataBar *Apply Do Not Apply Character Substitution for Telepen *Apply Do Not Apply Character Substitution for UPC-A (No Addon) *Apply Do Not Apply Character Substitution for UPC-A Addon 2 *Apply Do Not Apply...
Page 167 Chapter 5 Defining Output Format Character Substitution for UPC-E (No Addon) *Apply Do Not Apply Character Substitution for UPC-E Addon 2 *Apply Do Not Apply Character Substitution for UPC-E Addon 5 *Apply Do Not Apply Update...
Page 168: Prefix/Suffix Code
1660 Barcode Scanner User Guide 5.3 PREFIX/SUFFIX CODE By default, there is no prefix code, and [ENTER] or [CR] (Carriage Return) is configured to be suffix code. Up to 8 characters can be configured, for example, “Barcode_”, and will have...
Page 169: Code Id
Chapter 5 Defining Output Format 5.4 CODE ID Up to two characters for Code ID can be configured for each symbology. To make the Code ID configuration easier, the scanner provides five pre-defined Code ID sets that you can select one and make necessary changes on it. If “BT HID”...
Page 170 1660 Barcode Scanner User Guide Code ID options Set 1 Set 2 Set 3 Set 4 Set 5 Code 39 Italian Pharmacode French Pharmacode Industrial 25 Interleaved 25 Matrix 25 Codabar Code 93 Code 128 ISBT 128 UPC-E EAN-8 EAN-13...
Page 171: Change Code Id
Chapter 5 Defining Output Format 5.4.2 CHANGE CODE ID 1) Read the barcode below to change code ID of a specific symbology. 2) Read the “Hexadecimal Value” barcode on page 218 for the desired character string. For example, read “4” and “4” for applying the character [D] for Code ID. 3) Read the “Validate”...
Page 172: Clear Code Id Settings
1660 Barcode Scanner User Guide Configure Code ID for Interleaved 25 Configure Code ID for Matrix 25 Configure Code ID for Configure Code ID for Plessey Configure Code ID for Telepen Configure Code ID for UPC-A Configure Code ID for UPC-E 5.4.3 CLEAR CODE ID SETTINGS...
Page 173: Length Code
Chapter 5 Defining Output Format 5.5 LENGTH CODE A two-digit code representing the length of barcode data (character count) can be inserted in front of data being transmitted. Such "Length" code can be individually enabled or disabled for each symbology. Length Code for Codabar Apply *Do Not Apply...
Page 174 1660 Barcode Scanner User Guide Length Code for GS1-128 & GS1 DataBar Apply *Do Not Apply Length Code for ISBT 128 Apply *Do Not Apply Length Code for EAN-8 Apply *Do Not Apply Length Code for EAN-13 Apply *Do Not Apply...
Page 175 Chapter 5 Defining Output Format Length Code for Italian Pharmacode Apply *Do Not Apply Length Code for Industrial 25 Apply *Do Not Apply Length Code for Interleaved 25 Apply *Do Not Apply Length Code for Matrix 25 Apply *Do Not Apply Length Code for MSI Apply *Do Not Apply...
Page 176 1660 Barcode Scanner User Guide Length Code for Plessey Apply *Do Not Apply Length Code for Telepen Apply *Do Not Apply Length Code for UPC-A Apply *Do Not Apply Length Code for UPC-E Apply *Do Not Apply Enter Setup...
Page 177: Multi-Barcode Editor
Chapter 5 Defining Output Format 5.6 MULTI-BARCODE EDITOR The Multi-Barcode Editor allows you to decide the output sequence of a concatenation of barcodes. Up to five barcodes can be specified. When you enable this mode, it will force the scanner to apply Laser mode as the scan mode. Note: The Multi-Barcode Editor has nothing to do with Multi-Barcode Mode.
Page 178: Edit A Concatenation Of Barcodes
1660 Barcode Scanner User Guide 5.6.1 EDIT A CONCATENATION OF BARCODES Edit Output Sequence 1) Read the barcode above to start editing a concatenation of barcodes. 2) Code Type setting – read the “Hexadecimal Value” barcode on page 218 for Code Type of the (first) barcode.
Page 179: Activate The Concatenation Of Barcodes
Chapter 5 Defining Output Format 5.6.2 ACTIVATE THE CONCATENATION OF BARCODES By default, the output sequence editing of the concatenation of barcodes is not applied. When “Enforce Output Sequence” is enabled, all barcodes read by the scanner must meet with the criteria for the concatenation. If data is found excluded from all output sequence sets (= not meeting with the criteria), the scanner will not accept the reading, and therefore, data will not be transmitted.
Page 180: Removal Of Special Character
1660 Barcode Scanner User Guide 5.7 REMOVAL OF SPECIAL CHARACTER You can only specify 1 character, but it will remove every matching character encountered from the starting position of barcode data until a different character is met. For example, if it is configured to remove the character “0” (hex value is “30”), one or more zeros will be stripped off the barcode data “012345”...
Page 181: Applying Formats For Data Editing
Chapter 6 APPLYING FORMATS FOR DATA EDITING The scanner allows advanced data editing by applying user-configured editing formats. The whole processed data can be divided into fields by user-specified rules. These fields together with the user-configurable additional fields consist of the data actually sent to the host computer.
Page 182: Activating Editing Formats
1660 Barcode Scanner User Guide 6.1 ACTIVATING EDITING FORMATS 6.1.1 ACTIVATE EDITING FORMATS If you have already configured any editing format before, you may directly apply the editing format. If not, you must start with configuring an editing format first, and then, activate the editing format when it is desired in use.
Page 183: Exclusive Data Editing
Chapter 6 Applying Formats for Data Editing Editing Format 5 Enable *Disable 6.1.2 EXCLUSIVE DATA EDITING By default, only barcodes found meeting with the criteria are processed by the editing formats. Those found not meeting with the criteria are processed normally. When “Exclusive Data Editing”...
Page 184: Editing Format
1660 Barcode Scanner User Guide 6.2 EDITING FORMAT End Programming Format...
Page 185: Select Format To Configure
Chapter 6 Applying Formats for Data Editing 6.2.1 SELECT FORMAT TO CONFIGURE Start Programming Format Select one editing format (Format 1~5) and the parameters pertaining to the editing format can then be configured – applicable code type, data length, matching string & location, start position, field adjustment, total number of fields, field settings (field-dividing rule), additional fields, and field transmission sequence.
Page 186: Restore Default Format
1660 Barcode Scanner User Guide 6.2.2 RESTORE DEFAULT FORMAT You may select an existing editing format and have the defaults restored. The default settings of an editing format are listed below. Editing format Defaults Applicable Code Type Data Length 0 (No qualification)
Page 187: Configuring Format - Define Data Criteria
Chapter 6 Applying Formats for Data Editing 6.3 CONFIGURING FORMAT — DEFINE DATA CRITERIA Three applicable conditions can be configured to check whether the data read by the scanner can be processed by the particular editing format. Note: Data editing cannot be performed unless the three conditions are all met. 6.3.1 APPLICABLE CODE TYPE By default, barcodes of all the supported symbologies will be processed by any editing format, if having been configured and enabled.
Page 188 1660 Barcode Scanner User Guide Editing Format for Codabar *Apply Do Not Apply Editing Format for Code 39 *Apply Do Not Apply Editing Format for Code 93 *Apply Do Not Apply Editing Format for Code 128 *Apply Do Not Apply Editing Format for GS1-128 &...
Page 189 Chapter 6 Applying Formats for Data Editing Editing Format for ISBT 128 *Apply Do Not Apply Editing Format for EAN-8 *Apply Do Not Apply Editing Format for EAN-8 Addon 2 *Apply Do Not Apply Editing Format for EAN-8 Addon 5 *Apply Do Not Apply Editing Format for EAN-13...
Page 190 1660 Barcode Scanner User Guide Editing Format for EAN-13 Addon 2 *Apply Do Not Apply Editing Format for EAN-13 Addon 5 *Apply Do Not Apply Editing Format for French Pharmacode *Apply Do Not Apply Editing Format for Italian Pharmacode *Apply...
Page 191 Chapter 6 Applying Formats for Data Editing Editing Format for Interleaved 25 *Apply Do Not Apply Editing Format for Matrix 25 *Apply Do Not Apply Editing Format for MSI *Apply Do Not Apply Editing Format for Plessey *Apply Do Not Apply Editing Format for Telepen *Apply Do Not Apply...
Page 192 1660 Barcode Scanner User Guide Editing Format for UPC-A *Apply Do Not Apply Editing Format for UPC-A Addon 2 *Apply Do Not Apply Editing Format for UPC-A Addon 5 *Apply Do Not Apply Editing Format for UPC-E *Apply Do Not Apply...
Page 193 Chapter 6 Applying Formats for Data Editing Editing Format for UPC-E Addon 5 *Apply Do Not Apply Update...
Page 194: Data Length
1660 Barcode Scanner User Guide 6.3.2 DATA LENGTH The length must include prefix, suffix (0x0d by default), length code, etc. By default, barcodes of any length (character count) are eligible for data editing. You may specify a value from 0 to 254.
Page 195: Matching String & Location
Chapter 6 Applying Formats for Data Editing 6.3.3 MATCHING STRING & LOCATION By default, no matching string is specified, and therefore, it is disabled. You may enable this feature by specifying a matching string; up to four characters are allowed. When the Matching String Location is zero, the scanner will only check for the existence of the matching string in the barcode data.
Page 196: Configuring Format - Define Data Field
1660 Barcode Scanner User Guide 6.4 CONFIGURING FORMAT — DEFINE DATA FIELD 6.4.1 START POSITION Data can be divided into fields in one of the following direction – from head (F1) to tail (F5) from tail (F1) to head (F5)
Page 197: Total Number Of Fields
Chapter 6 Applying Formats for Data Editing 6.4.3 TOTAL NUMBER OF FIELDS Data can be divided into at most 6 fields; each of them is numbered from F1 to F6 accordingly. However, only F1~F5 can be configured. The total number of fields must be specified correctly. If three fields are configured for the editing format, the data characters after F3 will be assigned to F4 automatically.
Page 198: Field Settings
1660 Barcode Scanner User Guide 6.4.4 FIELD SETTINGS Data eligible for editing formats is divided into fields by user-specified rules – either using the field terminating string or specified field length. By Terminating String Specify the field terminating string. Up to two characters are allowed. The scanner will search for the occurrence of this particular string in the data.
Page 199 Chapter 6 Applying Formats for Data Editing Field 2 Setting Read the barcode below to divide field 2 by a specified terminating string. Select Field Separator to Divide Field 2… Read the “Hexadecimal Value” barcode on page 218 for the desired character string. Read the “Validate”...
Page 200 1660 Barcode Scanner User Guide Field 3 Setting Read the barcode below to divide field 3 by a specified terminating string. Select Field Separator to Divide Field 3… Read the “Hexadecimal Value” barcode on page 218 for the desired character string.
Page 201 Chapter 6 Applying Formats for Data Editing Field 4 Setting Read the barcode below to divide field 4 by a specified terminating string. Select Field Separator to Divide Field 4… Read the “Hexadecimal Value” barcode on page 218 for the desired character string. Read the “Validate”...
Page 202 1660 Barcode Scanner User Guide Field 5 Setting Read the barcode below to divide field 5 by a specified terminating string. Select Field Separator to Divide Field 5… Read the “Hexadecimal Value” barcode on page 218 for the desired character string.
Page 203 Chapter 6 Applying Formats for Data Editing Additional Fields Up to five additional fields can be created for each editing format; each of them is numbered from AF1 to AF5 accordingly. If “BT HID” or “USB HID” is configured for interface, Key Type and Key Status will then become applicable.
Page 204: Pause Field Setting
1660 Barcode Scanner User Guide 6.4.5 PAUSE FIELD SETTING Pause Field Time You can limit the pause time interval (1~16). By default, it is set to 1 second. Pause Field Time 1~16 sec. (*1) Read the barcode above to specify the time interval for the Pause Field. (It is set to 1 by default.)
Page 205: Configuring Format - Define Transmission Sequence
Chapter 6 Applying Formats for Data Editing 6.5 CONFIGURING FORMAT — DEFINE TRANSMISSION SEQUENCE After configuring the data fields and additional fields, you must now program the transmission sequence of these fields that comprise the final data. This field transmission sequence can be assigned in any desired order and fields can be assigned multiple times as well.
Page 206 1660 Barcode Scanner User Guide Additional Field 2 Additional Field 3 Additional Field 4 Additional Field 5 Pause Field Null Character Field 3) Read the “End” barcode to complete this setting. End Programming… End Programming Format...
Page 207: Programming Examples
Chapter 6 Applying Formats for Data Editing 6.6 PROGRAMMING EXAMPLES 6.6.1 EXAMPLE I Extract data from the 10th character to the 19th character... The editing format should be configured as follows: Read the “Enter Setup” barcode to enter the Configuration Mode. Read the “Configure Format 1”...
Page 208: Example Ii
1660 Barcode Scanner User Guide 6.6.2 EXAMPLE II Extract the date code, item number, and quantity information from barcodes. Data in a barcode is encoded like this: From the 1 character to the 6 character is the date code. From the 7 character to the dash ‘-’...
Page 209: Specifications
Direct USB HID (1661 only) Direct USB Virtual COM (1661 only) Physical Characteristics 1 KB for transmit buffer Memory 256 KB flash for memory mode (1660) 512 KB flash for memory mode (1661) Switch Push-button switch for [Trigger] key, plus [Power/Delete] key Indication...
Page 210 1660 Barcode Scanner User Guide Electrical Characteristics Battery 2 AAA Alkaline batteries Rechargeable Li-ion battery — 3.7 V, 850 mAh Power Adaptor Input AC 100~240 V (50/60 Hz) Output DC 5V ± 5% (via battery charger) Environmental Characteristics Temperature Operating 0 °C to 50 °C...
Page 211: Firmware Upgrade
Note: In case it fails downloading due to low battery, make sure the targe scanner is loaded with good alkaline batteries and the battery charge is enough. HOW TO UPGRADE 1660/1661 FIRMWARE USING 3610 1) Connect 3610 to the USB port of PC. You may need to install its driver first! 2) Refer to 3.1.1 Connect to 3610...
Page 212 1660 Barcode Scanner User Guide Enter Setup Download 5) Run the download utility “ProgLoad.exe” on your computer. Kernel Program User Program K1660_V*.shx STD1660_V*.shx K1661_V*.shx STD1661_V*.shx communication settings, select “RS-232” and the correct COM port for USB Virtual COM interface. Ignore the baud rate setting.
Page 213: Using Direct Usb Virtual Com (1661 Only)
Appendix I Firmware Upgrade USING DIRECT USB VIRTUAL COM (1661 ONLY) 1) Use the provided USB cable to connect 1661 to the USB port of PC. You may need to install its driver first! 2) Read the following barcodes in sequence to configure 1661 to use Direct USB Virtual COM as download interface and enter the download mode.
Page 214 1660 Barcode Scanner User Guide Note: Because Direct USB Virtual COM interface is only provided for 1661 to download firmware, the output interface will be set to the previous one in use upon completion of firmware upgrade. Enter Setup...
Page 215: Using Bluetooth ® Dongle
Appendix I Firmware Upgrade USING BLUETOOTH DONGLE ® 1) Refer to 3 .2.3 Connect to Dongle for the target scanner to accept the connection request from your computer. 2) Read the following barcodes in sequence to configure the scanner to use BT SPP as download interface.
Page 216 1660 Barcode Scanner User Guide communication settings, select “RS-232” and the correct COM port for BT SPP interface. Ignore the baud rate setting. For the file option, click [Browse] to select the target file for firmware update. Click [OK]. 5) After upgrading kernel, you will need to manually restart the scanner.
Page 217: How To Upgrade 3610 Firmware
Appendix I Firmware Upgrade HOW TO UPGRADE 3610 FIRMWARE Connect 3610 to the USB port of PC. You may need to install its driver first! Refer to 3.1.1 Connect to 3610 for the target scanner to connect to 3610. UPGRADING 3610 CPU FIRMWARE 1) Read the following barcodes in sequence for 3610 to enter the download mode.
Page 218 1660 Barcode Scanner User Guide 4) Read the “Update” barcode for the scanner to resume its operation (exit the configuration mode). Update Enter Setup...
Page 219: Upgrading 3610 Usb Bridge Firmware
Appendix I Firmware Upgrade UPGRADING 3610 USB BRIDGE FIRMWARE 1) Read the following barcodes in sequence for 3610 to enter the download mode. The Communication LED on 3610 will be flashing red to indicate it is ready for downloading. Enter Setup Download 3610 USB Bridge Firmware 2) Run the download utility “ProgLoad.exe”...
Page 220 1660 Barcode Scanner User Guide Enter Setup...
Page 221: Host Serial Commands
Appendix II HOST SERIAL COMMANDS 1660/1661 SERIAL COMMANDS Purpose To disable the scanner. Remarks “D” Purpose To enable the scanner. Remarks “E” #@ nnnnnn <CR> Purpose To configure the scanner. Remarks nnnnnn – the six digits of command parameters. For example, “109952” is to list the current Code ID settings.
Page 222: Example
1660 Barcode Scanner User Guide #@TRIGOFF<CR> Purpose Disable the software trigger Remarks “0x23” + “0x40” + “0x54” + “0x52” + “0x49” + “0x47” + “0x4f” + “0x46” + “0x46” + “0x0d” #@TRIGON<CR> Purpose Enable the software trigger Remarks “0x23” + “0x40” + “0x54” + “0x52” + “0x49” + “0x47” + “0x4f” + “0x4e” + “0x0d”...
Page 223: 3610 Setup Barcodes & Serial Commands
Appendix II Host Serial Commands 3610 SETUP BARCODES & SERIAL COMMANDS Normally, you can configure the 3610 dongle by having a connected scanner read 3610-related setup barcodes. 1) Connect 3610 to the USB port of PC. You may need to install its driver first! 2) Refer to 3.1.1 Connect to 3610 for the target scanner to connect to 3610.
Page 224: 3610 Serial Command Table
1660 Barcode Scanner User Guide 3610 SERIAL COMMAND TABLE Config<CR> Purpose To configure 3610. Here is the setup barcode for this serial command: Config Remarks A list of the current settings will be displayed. Run HyperTerminal.exe on your computer and change the settings one by one.
Page 225 Appendix II Host Serial Commands UseVariablePort<CR> Purpose To use variable Virtual COM port when connecting more than one 3610 to PC via USB. Here is the setup barcode for this serial command: UseVariablePort Version<CR> Purpose To get the firmware versions (CPU+USB Bridge). Here is the setup barcode for this serial command: Version GetID<CR>...
Page 226: Example
1660 Barcode Scanner User Guide EXAMPLE Without using the scanner to read the above setup barcodes for configuring the 3610 dongle, you may run HyperTerminal.exe on the host computer to send serial commands to 3610 via USB Virtual COM. 1) Connect 3610 to the USB port of PC.
Page 227: Keyboard Wedge Table
Appendix III KEYBOARD WEDGE TABLE " Home Down & Left Right PgUp Exec < PgDn > ENTER* Note: (1) ~ : Digits of numeric keypad. (2) CR*/Send/ENTER*: ENTER key on the numeric keypad. Update...
Page 228: Key Type & Status
1660 Barcode Scanner User Guide KEY TYPE & STATUS KEY TYPE If “BT HID” or “USB HID” is configured for interface, Key Type and Key Status will then become applicable. *Normal Scan Code KEY STATUS Decide whether or not to change key status when “Normal Key” is selected for Key Type.
Page 229: Example
Appendix III Keyboard Wedge Table EXAMPLE KEY TYPE = NORMAL For example, if you want to program the character “!” as the prefix code: Read the “Configure Prefix” barcode. Read the “Hexadecimal Value” barcode on page 218 for “2” and “1”. Read the “Validate”...
Page 230 1660 Barcode Scanner User Guide Enter Setup...
Page 231: Numeral Systems
Appendix IV NUMERAL SYSTEMS DECIMAL SYSTEM Decimal Validate the Values Validate Update Abort...
Page 232: Hexadecimal System
1660 Barcode Scanner User Guide HEXADECIMAL SYSTEM Hexadecimal Enter Setup...
Page 233: Ascii Table
Appendix IV Numeral Systems Validate the Values Validate ASCII TABLE " & < > Update Abort...
Page 234: Entering Pin Code For Authentication
1660 Barcode Scanner User Guide ENTERING PIN CODE FOR AUTHENTICATION USE PRESET PIN 1) In the configuration mode, read the barcode below to use a preset PIN for authentication. Use Preset PIN 2) Read one of the barcodes to specify the PIN code, in decimal or hexadecimal.
Page 235: Disable Authentication Or Use Random Pin
Appendix IV Numeral Systems DISABLE AUTHENTICATION OR USE RANDOM PIN In the configuration mode, read the barcode below to disable authentication (= No PIN) or use a random PIN for authentication. *No PIN or use random PIN Note: When using BT HID, some device driver may not support pre-defined PIN code for authentication.
