How to Install

4.3 Mechanical Installation

Preparation of the mechanical installation of the frequency
converter must be done carefully to ensure a proper result
and to avoid additional work during installation. Start
taking a close look at the mechanical drawings at the end
of this instruction to become familiar with the space
demands.
4 4
4.3.1 Tools Needed
To perform the mechanical installation the following tools
are needed:
•
Drill with 10 or 12 mm drill
•
Tape measure
•
Screw driver
•
Wrench with relevant metric sockets (7-17 mm)
•
Extensions to wrench
•
Sheet metal punch for conduits or cable glands
•
Lifting bar to lift the unit (rod or tube max. Ø 25
mm (1 inch), able to lift minimum 1000 kg).
•
Crane other lifting aid to place the unit in
position
•
Torx T50 tool
4.3.2 General Considerations
Space
Ensure proper space above and below the frequency
converter to allow airflow and cable access. In addition
space in front of the unit must be considered to enable
opening of the door of the panel.

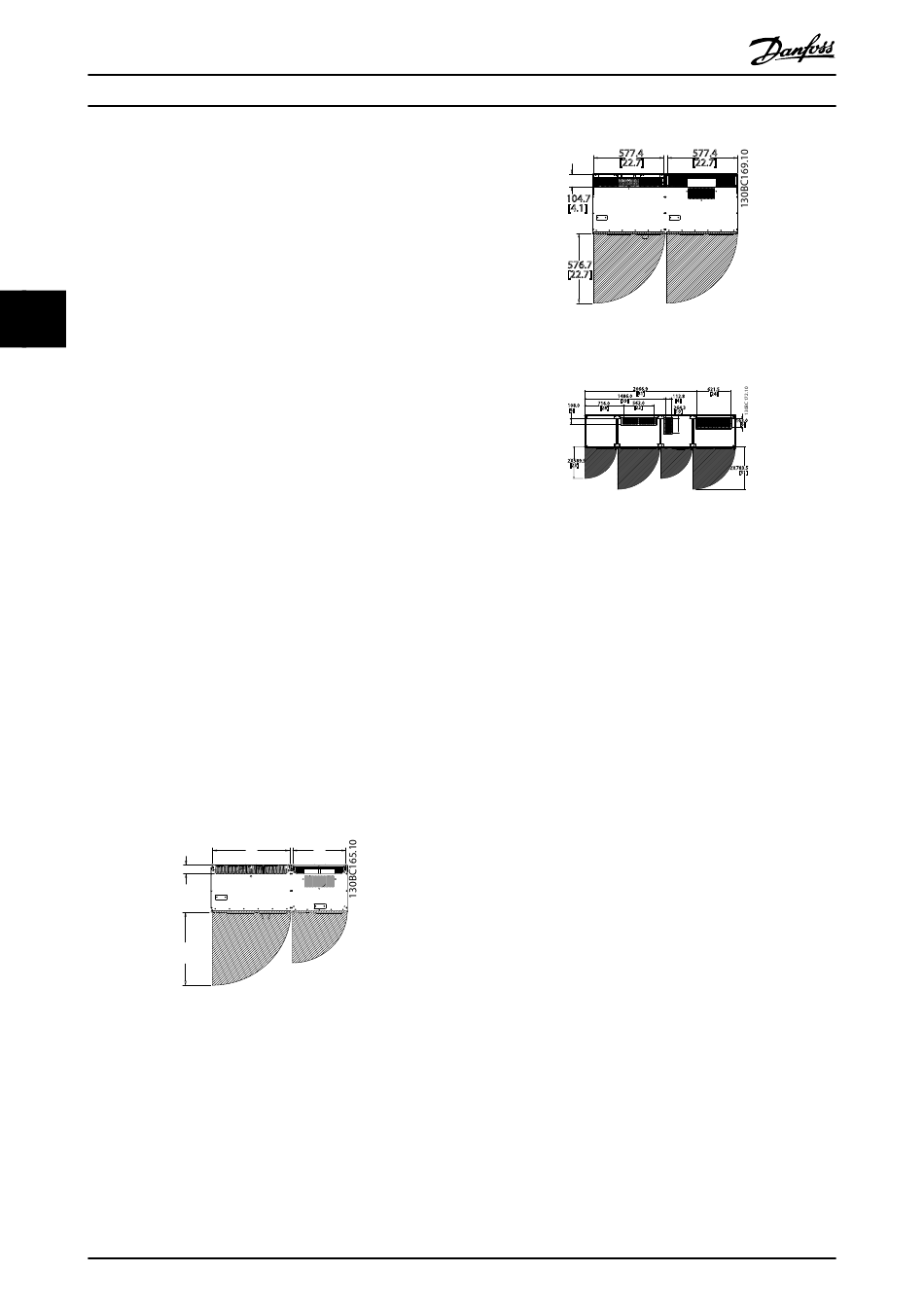

Illustration 4.10 Space in front of IP21/IP54 enclosure type,
frames size D13
22
68.1
398.2
577.4
[2.7]
[22.7] [15.7]
574.2
[22.6]
MG20T202 - VLT
VLT AQUA Low Harmonic Drive Operating Instructions
Illustration 4.11 Space in front of IP21/IP54 enclosure type, frame
size E9
Illustration 4.12 Space in front of IP21/IP54 enclosure type, frame
size F18.
Wire access
Ensure that proper cable access is present including
necessary bending allowance.
NOTE
All cable lugs/shoes must mount within the width of the
terminal bus bar.
®
is a registered Danfoss trademark
577.4 577.4
[22.7] [22.7]
104.7
[4.1]
576.7
[22.7]
2066.9
621.5
[81] [24]
1486.0 112.8
[59] [4]
716.0 562.0
108.0
[22]
[28] 264.3
[4]
[10]
163.0
[6]
2X589.5
[23]
2X 783.5
[31]
