6.1.3 Q2 Quick Setup
The parameters in Q2 Quick Setup are the basic
parameters which are always needed to set-up the
frequency converter to operation.
Parameter number and name
0-01 Language
1-20 Motor Power
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
6 6
3-41 Ramp 1 Ramp Up Time
3-42 Ramp 1 Ramp Down Time
4-11 Motor Speed Low Limit
4-13 Motor Speed High Limit
1-29 Automatic Motor Adaptation (AMA)
6.1.4 Q3 Function Setups
The Function Setup provides quick and easy access to all
parameters required for the majority of water and
wastewater applications including variable torque, constant
torque, pumps, dosing pumps, well pumps, booster
pumps, mixer pumps, aeration blowers and other pump
and fan applications. Amongst other features it also
includes parameters for selecting which variables to display
on the LCP, digital preset speeds, scaling of analog
references, closed loop single zone and multi-zone
applications and specific functions related to water and
wastewater applications.

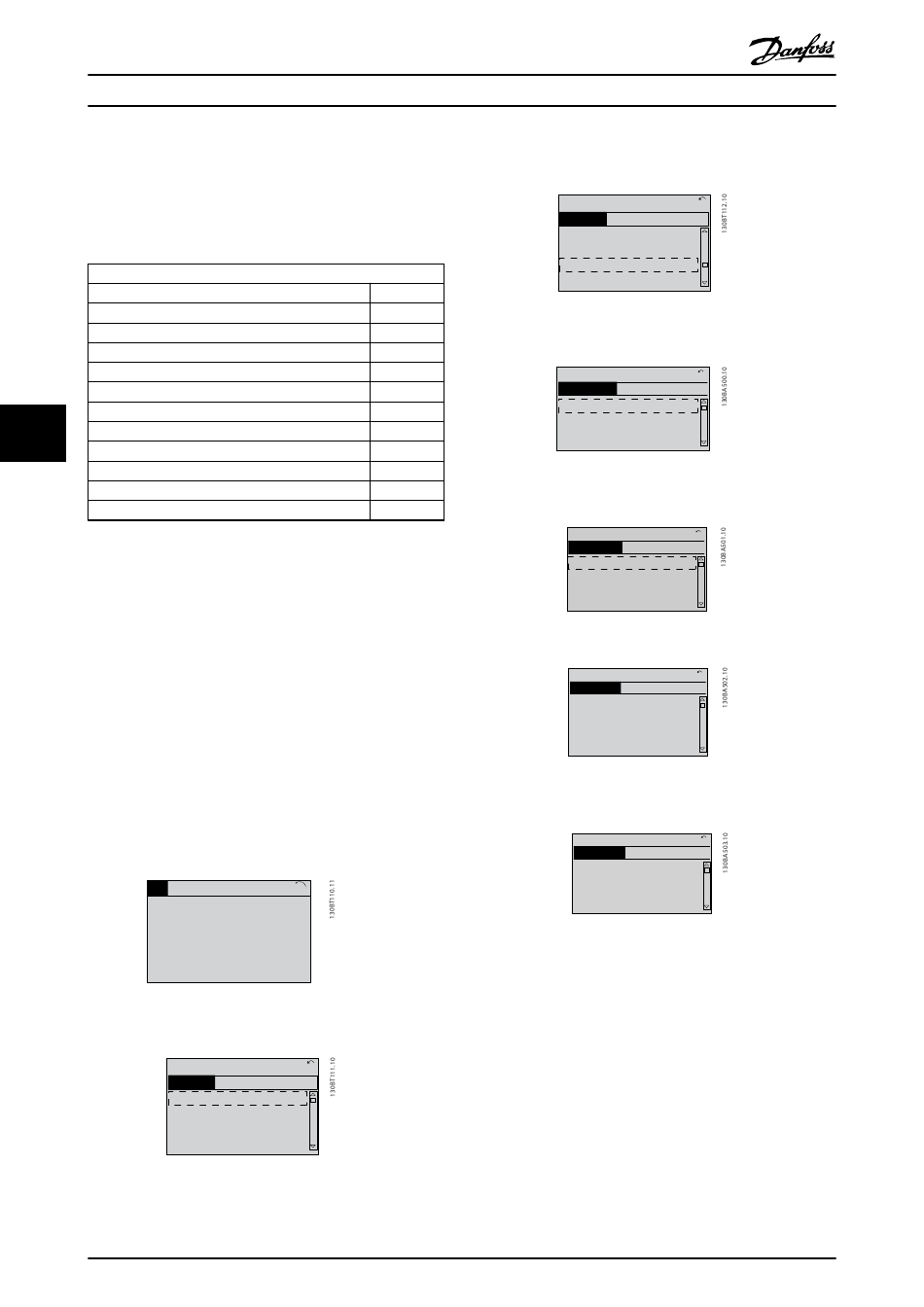

How to access Function Set-up - example:
1. Turn on the frequency converter (On LED lights)
Status
28.8%
Auto Remote Running
2. Press the [Quick Menus] key (Quick Menus
choices appear).
13.7%
Quick Menus
Q1 My Personal Menu
Q2 Quick Setup
Q3 Function Setups
Q5 Changes Made
68
VLT AQUA Low Harmonic Drive Operating Instructions
Q2 Quick Setup
Unit
kW
V
Hz
A
RPM
s
s
RPM
RPM
1 (1)
2.63kW
5.66A
14.4Hz
0kWh
13.0A 1(1)
MG20T202 - VLT
▲ ▼
3.
Use [ ]/[
Function Setups. Press [OK].
69.3%
Quick Menus
Q1 My Personal Menu
Q2 Quick Setup
Q3 Function Setups
Q5 Changes Made
4. Function Setups choices appear. Choose Q3-1
General Settings. Press [OK].
1190 RPM
Function Setups
Q3 - 1 General Settings
Q3 - 2 Open Loop Settings
Q3 - 3 Closed Loop Settings
▲ ▼
5.
Use [ ]/[
Analog Outputs. Press [OK].
0.000 rpm
General Settings
Q3 - 10 Clock Settings
Q3 - 11 Display Settings
Q3 - 12 Analog Output
Q3 - 13 Relays
6. Choose 6-50 Terminal 42 Output. Press [OK].
0.000 rpm
Analog Output
6 - 50 Terminal 42 Output
(100) Output frequency
▲ ▼
7.
Use [ ]/[
choices. Press [OK].
0.000 rpm
Analog Output
6 - 50 Terminal 42 Output
(107) Speed
®
is a registered Danfoss trademark
] navigation keys to scroll down to
5.20A 1(1)
0.000 1 (1)
Q3
] keys to scroll down to i.e. Q3-12
0.000 1 (1)
Q3-1
0.000 1 (1)
Q3-12
] keys to select between the different
0.000 1 (1)
Q3-12
