How to Programme the Low Ha...

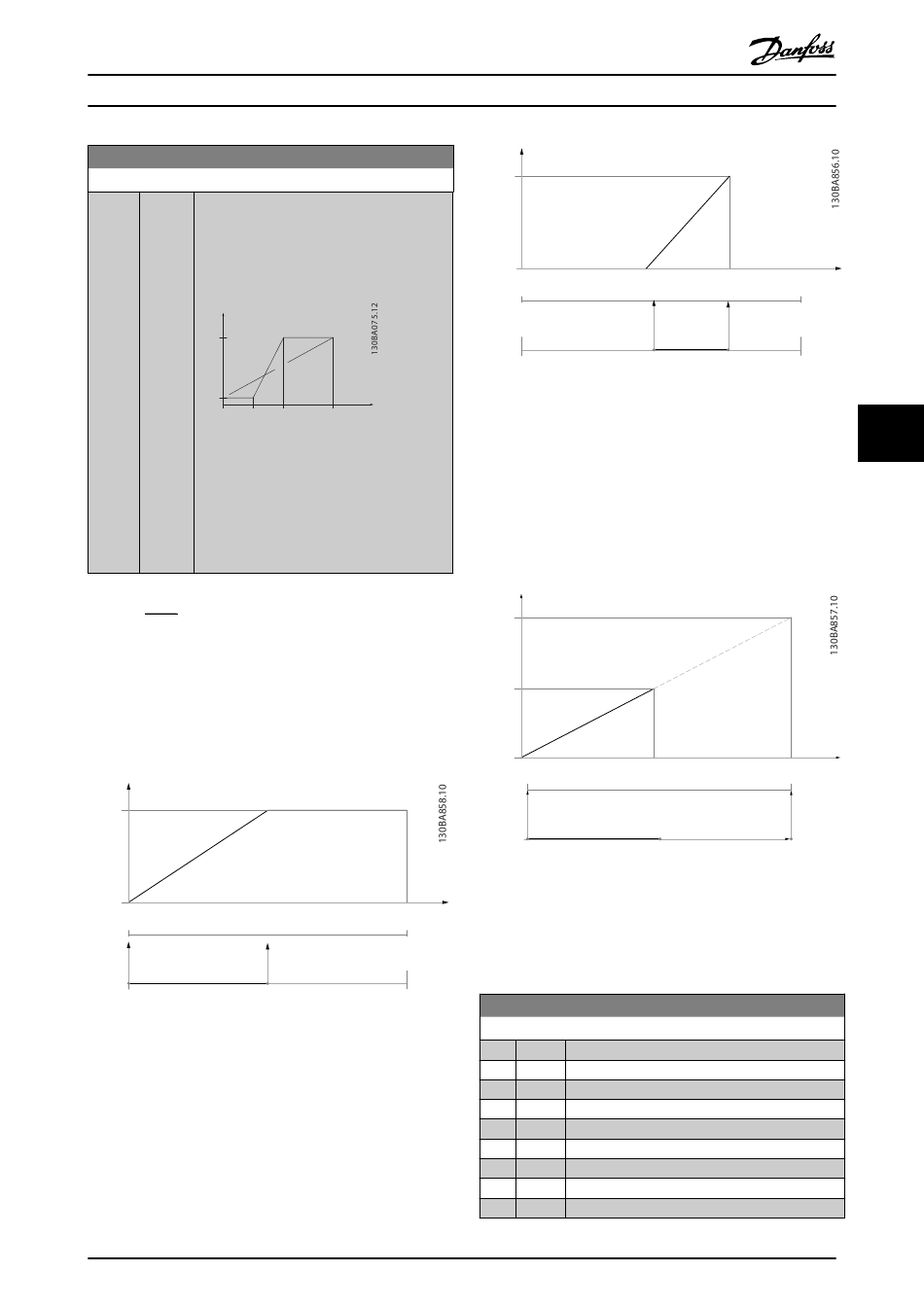

6-52 Terminal 42 Output Max Scale
Range: Function:
100.00 [0.00 - Scale for the maximum output (20 mA) of the
% 200.00 analog signal at terminal 42.
*
%] Set the value to be the percentage of the full
range of the variable selected in 6-50 Terminal
42 Output.
Current
(mA)
20
0/4
0% Analogue
output
Min Scale
par. 6-93
It is possible to get a value lower than 20 mA
at full scale by programming values >100% by
using a formula as follows:
20 mA / desired maximum current × 100 %
20 mA
i . e . 10 mA :
× 100 % = 200 %
mA
10
EXAMPLE 1:
Variable value= OUTPUT FREQUENCY, range = 0-100 Hz
Range needed for output = 0-50 Hz
Output signal 0 or 4 mA is needed at 0 Hz (0% of range) -
set 6-51 Terminal 42 Output Min Scale to 0%
Output signal 20 mA is needed at 50 Hz (50% of range) -
set 6-52 Terminal 42 Output Max Scale to 50%
20 mA
0/4 mA
0%
0Hz 50Hz
EXAMPLE 2:
Variable= FEEDBACK, range= -200% to +200%
Range needed for output= 0-100%
Output signal 0 or 4 mA is needed at 0% (50% of range) -
set 6-51 Terminal 42 Output Min Scale to 50%
Output signal 20 mA is needed at 100% (75% of range) -
set 6-52 Terminal 42 Output Max Scale to 75%
VLT AQUA Low Harmonic Drive Operating Instructions
Analogue 100% Variable
Output for
Max Scale output
par. 6-94 example:
Speed
(RPM)
50% 100%
100Hz
®
MG20T202 - VLT is a registered Danfoss trademark
20 mA
0/4 mA
0% 50%
-200% 0%
EXAMPLE 3:
Variable value= REFERENCE, range= Min ref - Max ref
Range needed for output= Min ref (0%) - Max ref (100%),
0-10 mA
Output signal 0 or 4 mA is needed at Min ref - set
6-51 Terminal 42 Output Min Scale to 0%
Output signal 10 mA is needed at Max ref (100% of range)
- set 6-52 Terminal 42 Output Max Scale to 200%
(20 mA/10 mA x 100%=200%).
20 mA
10 mA
0/4 mA
0%
100%
Min ref Max ref
6.3.6 Drive Closed Loop, 20-**
This parameter group is used for configuring the closed
loop PID Controller, that controls the output frequency of
the frequency converter.
20-12 Reference/Feedback Unit
Option: Function:
[0]
[1] %
*
[5] PPM
[10] 1/min
[11] RPM
[12] Pulse/s
[20] l/s
[21] l/min
[22] l/h
75% 100%
+100% +200%
6
200%
Max ref X 20/10
