Configuring the RS-232 Interface

Starting an API Session via an RS-232 Interface

3 - 2
If you use the API with a serial connection, make sure that the RS-232
interfaces of the Polycom HDX system and your computer are configured
appropriately.
To access the RS-232 settings on your system, select System > Admin Settings
> General Settings > Serial Port.
Configure the Baud Rate and RS-232 Mode options as follows:
Configure this way on your
Option computer
Baud Rate Must be the same rate for both devices. Available rates are:
9600
14400
19200
38400
57600
115200
RS-232 Mode —
The RS-232 port on the Polycom HDX system supports two modes: Control
and Pass-Thru.
In Control Mode, a device (for example, a computer) connected to the RS-232
port can control the system using the API.
In Pass-Thru Mode, the operational modes of both devices' RS-232 ports
depend on the port configuration of each device.
After you have verified that the Polycom HDX system and your computer are
both configured appropriately, set up both devices as follows:
1. Power off the computer and the Polycom HDX system.

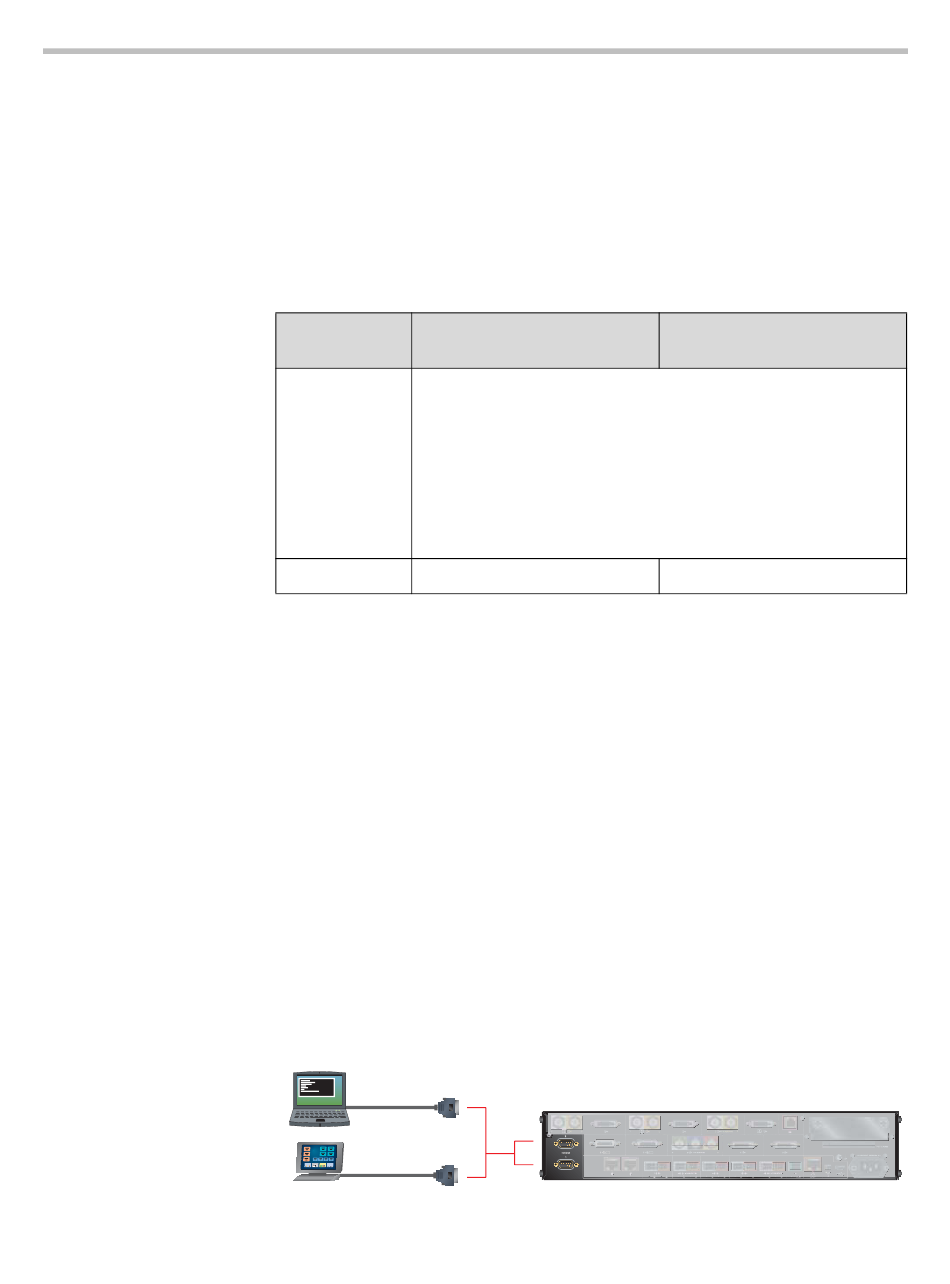

2. Use an RS-232 cable to connect the control system or computer RS-232
port to an RS-232 port on the Polycom HDX system as shown in the
following illustration. This connection may require the null modem
adapter 1517-21577-001 on page 2-41.
IOIOIO
Configure this way on the
Polycom HDX system
Control
