Integrator's Reference Manual for Polycom HDX Systems

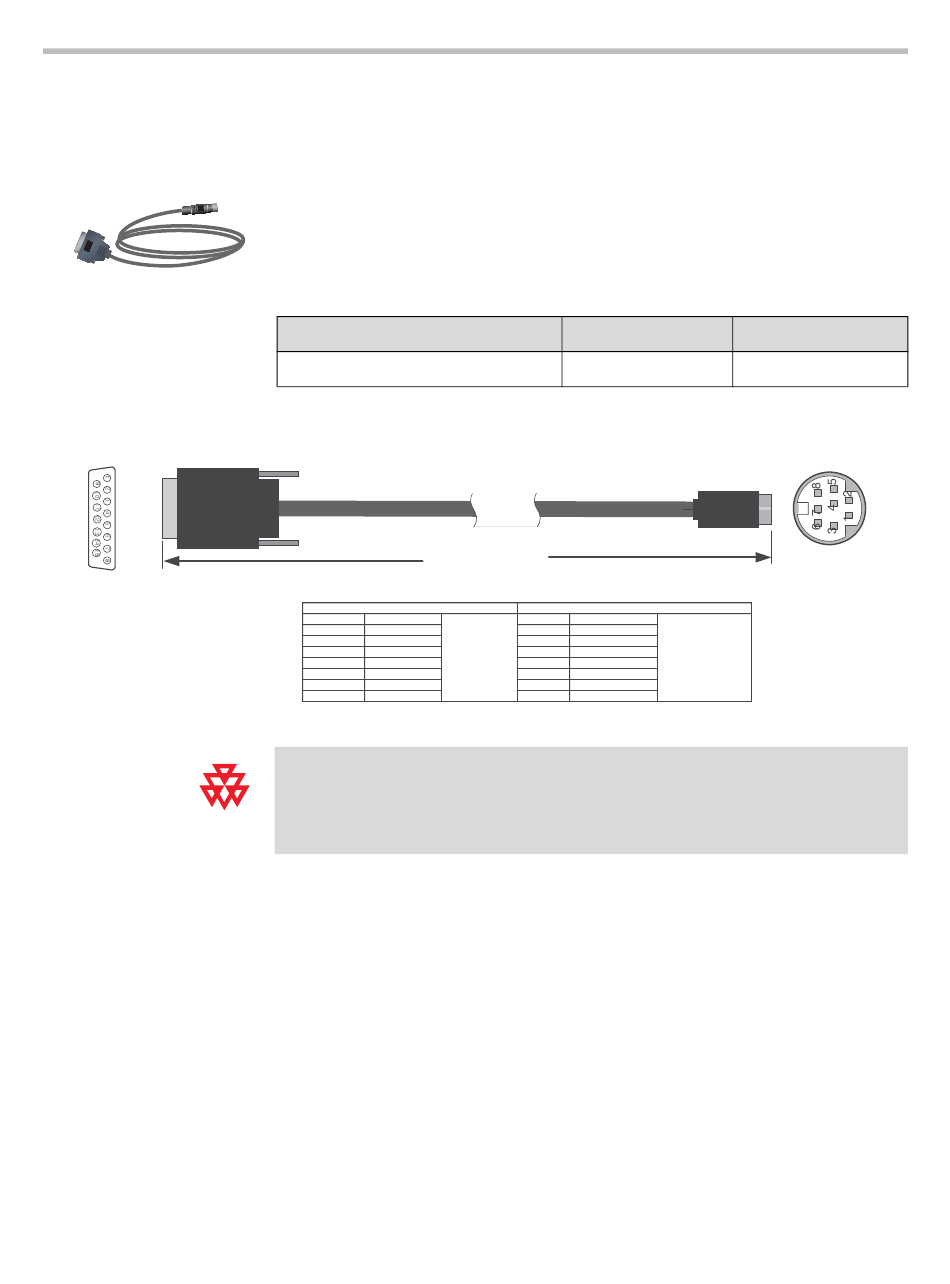

PowerCam Plus/VISCA Control Cable

P1
15 Pin D-sub
Male
2 - 26
8-pin mini-DIN to DB-15
This cable adapts the 8-pin mini-DIN VISCA control interface to the
PowerCam Plus DB-15 control interface. It is used with the PowerCam
Break-Out cable and the HDCI PowerCam Plus adapter cable. It is 8-pin
mini-DIN to DB-15.
Length
50 ft (15 m)
P1 15 Pin D Connector
Pin # Signal Name
1-6, 9-11, 13 NC
7 SW-RX/SN-TX
8 IR-SIGNAL
12 P GND
14 SW-TX/SN-RX
15 IR RETURN
SHIELD
Drawings and part numbers are provided for reference only. Polycom claims no responsibility
or liability for the quality, performance, or reliability of cables based on these reference
drawings, other than cables provided by Polycom. Contact your Polycom distributor or
Polycom Custom/Vertical Products to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for your application.
Part Number
1457-50527-201
50' ± 3.0"
P2 VISCA 8 Pin mini Din
Pin # Signal Name
1, 2, 8 NC
3 SW-RX/SN-TX
7 IR OUT
4 GND
5 SW-TX/SN-RX
6 GND
SHIELD
RoHS Compliant
Yes
8 Pin Mini Din
P2
Male
