Integrator's Reference Manual for Polycom HDX Systems

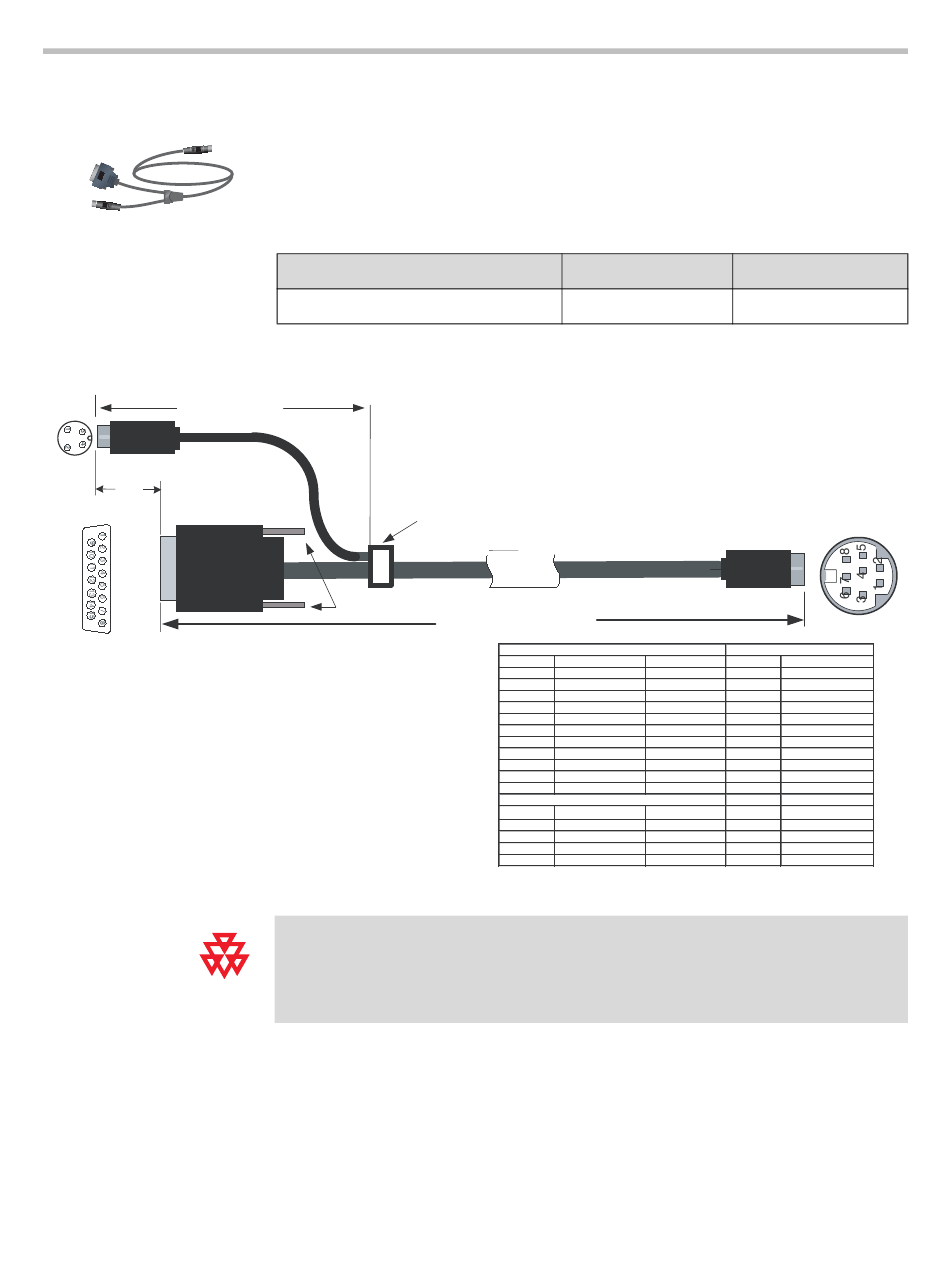

PowerCam Primary Camera Cable

200mm / 7.87"
P3
4Pin Mini Din
Male
40mm
(1.57")
P1
15 Pin D-sub
Male
2 - 24
This cable connects the Polycom HDX system video input 1 to a Polycom
PowerCam camera up to 10 ft away when used with the HDCI PowerCam
Plus Adapter cable on page 2-21. It is 8-pin mini-DIN to 4-pin mini-DIN and
DB-15. The maximum approved length for this cable is 10 ft (3 m).
Length
9 ft 10 in (3 m)
Molded PVC strain relief
4-40 Jack screw
3 Meters +/- 50.80mm
Drawings and part numbers are provided for reference only. Polycom claims no responsibility
or liability for the quality, performance, or reliability of cables based on these reference
drawings, other than cables provided by Polycom. Contact your Polycom distributor or
Polycom Custom/Vertical Products to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for your application.
Part Number
1457-50338-002
P1 15 Pin D Connector
Pin # Signal Name Wire Type
1-4 N/C
5 PGND 22AWG wire
6 +12V 22 AWG wire
7 SW-RX/SN-TX 30 AWG wire
8 IR-SIGNAL 30 AWG wire
9-11 N/C
12 P GND 22 AWG wire
13 +12V 22 AWG wire
14 SW-TX/SN-RX 30 AWG wire
15 IR RETURN 30 AWG wire
SHIELD DRAIN wire
P3 4 Pin Mini Din
1 RTN Coax Shield
2 RTN Coax Shield
3 Luma Micro Coax
4 Chro ma Micro Coax
SHIELD DRAIN wire
RoHS Compliant
Yes
P2
Pan Int'l 73069-008-T06
8 Pin Mini Din
Male
P2 8 Pin mini Din
Pin # Signal Name
3 DGND
7 +12V
2 SW-RX/SN-TX
4 IR_SIGNAL
3 DGND
7 +12V
1 SW-TX/SN-RX
3 DGND
SHIELD
5 GVID
5 GVID
6 Luma
8 Chroma
SHIELD
