1. Identify the P1 connector on the Polycom HDX microphone cable
according to the location of the brown heat-shrink tubing as shown on
page 2-29. Remove the P1 connector and skip to step 4. If you cannot
identify the P1 connector, remove either connector from the cable and
continue with step 2.

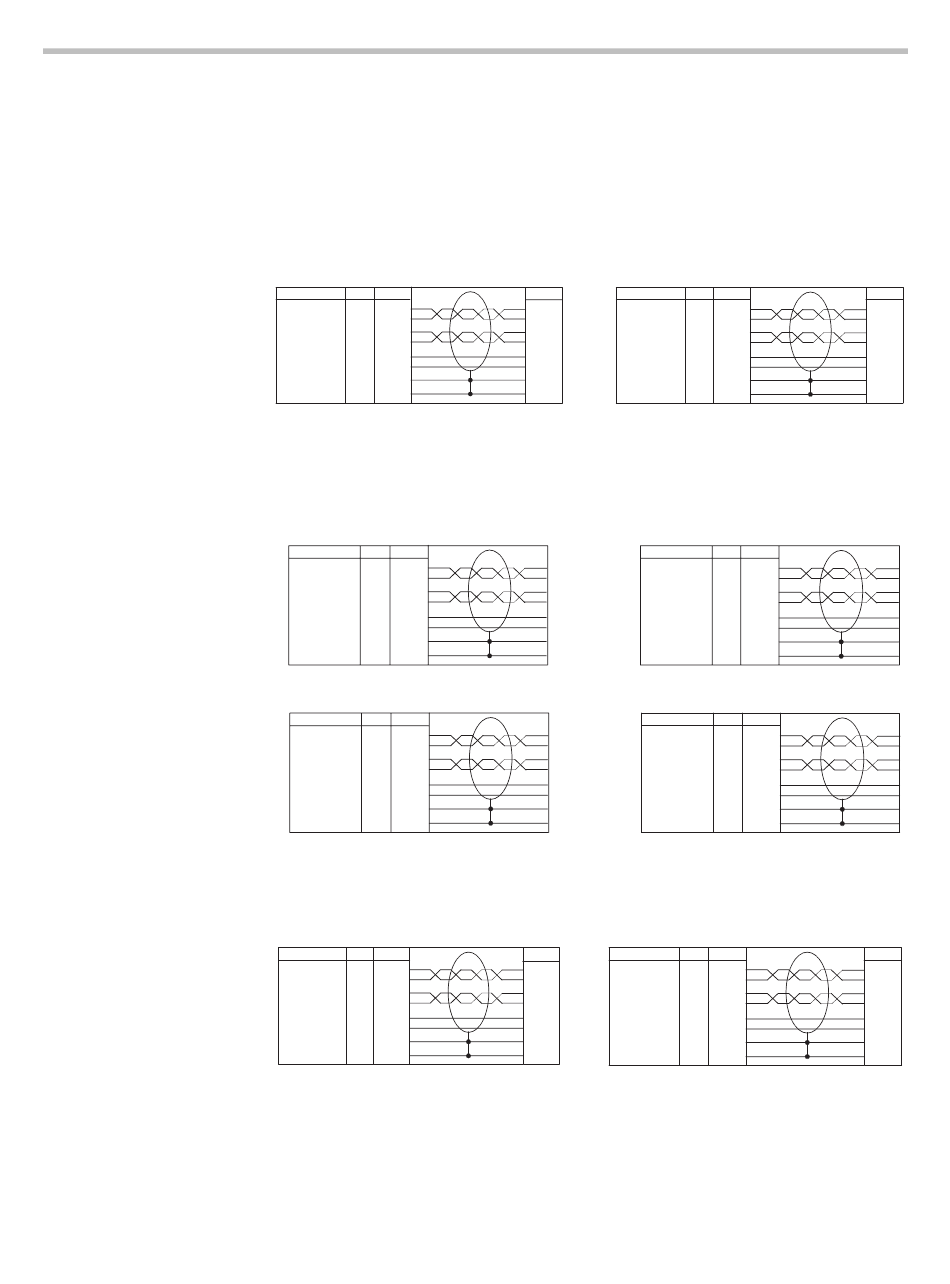

The following tables show the color coding for the cable wiring.
VENDOR 1
COLOR AWG P1
RED 28
10
28
ORANGE 14
YELLOW 28 2
GREEN 28 6
WHITE 24 13
BLACK 24 9
DRAIN WIRE 3
SHIELD SHELL
P1, P2 - Walta Electronics, M30-558-0051
2. If you are not sure which connector you cut off, use the following tables
to perform a continuity check between the connector and the cable colors.
If you cut off P1, skip to step 4. If you cut off P2, continue with step 3.
VENDOR 1, P1
COLOR AWG P1
RED 28 10
ORANGE 28 14
YELLOW 28 2
GREEN 28 6
WHITE 24 13
BLACK 24 9
DRAIN WIRE 3
SHIELD SHELL
P1 - Walta Electronics, M30-558-0051
VENDOR 1, P2
COLOR AWG P2
RED 28 2
ORANGE 28 6
YELLOW 28 10
GREEN 28 14
WHITE 24 13
BLACK 24 9
DRAIN WIRE 3
SHIELD SHELL
P2 - Walta Electronics, M30-558-0051
3. If you cut off P2, re-terminate the cable with a shielded RJ-45 connector
using the following tables, then skip to step 5.
VENDOR 1, P1
AWG P1
COLOR
28 10
RED
14
28
ORANGE
28 2
YELLOW
6
28
GREEN
13
24
WHITE
24 9
BLACK
3
DRAIN WIRE
SHELL
SHIELD
P1 - Walta Electronics, M30-558-0051
P2 - RJ-45 shielded plug, Tyco 5-569552 or equivalent
P2
COLOR AWG
2 BLUE 28
6 YELLOW 28
10 ORANGE 28
14 GREEN
28
13 BLACK
24
9 WHITE
24
3 DRAIN WIRE
SHELL SHIELD
P1, P2 - Walta Electronics, M30-558-0051
COLOR
BLUE
YELLOW
ORANGE
GREEN
BLACK
WHITE
DRAIN WIRE
SHIELD
P1 - Walta Electronics, M30-558-0051
COLOR
BLUE
YELLOW
ORANGE
GREEN
BLACK
WHITE
DRAIN WIRE
SHIELD
P2 - Walta Electronics, M30-558-0051
P2
COLOR AWG
5 BLUE 28
6 28
YELLOW
1 ORANGE 28
2 GREEN 28
7 24
BLACK
8 WHITE 24
3 DRAIN WIRE
SHELL
SHIELD
P1 - Walta Electronics, M30-558-0051
P2 - RJ-45 shielded plug, Tyco 5-569552 or equivalent
VENDOR 2
P2
P1
10 2
14 6
2 10
6 14
13 13
9
9
3
3
SHELL
SHELL
VENDOR 2, P1
AWG P1
28 10
28 14
28 2
28 6
24 13
24 9
3
SHELL
VENDOR 2, P2
AWG P2
28 2
28 6
28 10
28 14
24 13
24 9
3
SHELL
VENDOR 2, P1
P1 P2
10 5
14 6
2 1
6 2
13 7
9 8
3 3
SHELL SHELL
