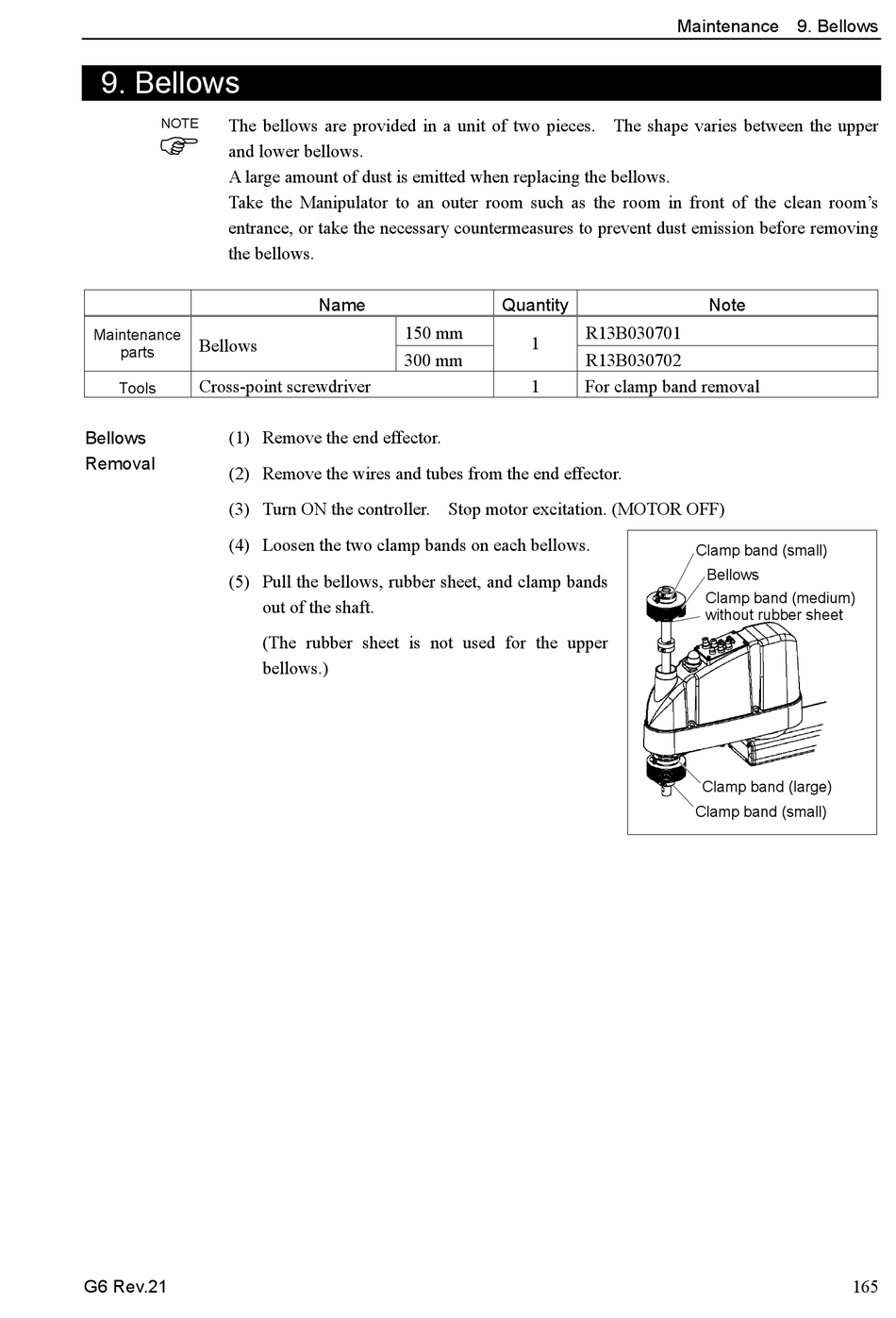

9. Bellows

NOTE The bellows are provided in a unit of two pieces. The shape varies between the upper

and lower bellows.
A large amount of dust is emitted when replacing the bellows.
Take the Manipulator to an outer room such as the room in front of the clean room's
entrance, or take the necessary countermeasures to prevent dust emission before removing
the bellows.
Maintenance
Bellows
parts
Cross-point screwdriver
Tools
Bellows (1) Remove the end effector.
Removal
(2) Remove the wires and tubes from the end effector.
(3) Turn ON the controller. Stop motor excitation. (MOTOR OFF)
(4) Loosen the two clamp bands on each bellows.
(5) Pull the bellows, rubber sheet, and clamp bands
G6 Rev.21
Name
150 mm
300 mm
out of the shaft.
(The rubber sheet is not used for the upper
bellows.)
Quantity
R13B030701
1
R13B030702
1 For clamp band removal
Maintenance 9. Bellows
Note
Clamp band (small)
Bellows
Clamp band (medium)
without rubber sheet
Clamp band (large)
Clamp band (small)
