Operating guide | VACON® NXS/NXP Air-cooled
A B
L
ready run fault
K
reset
J
select
I

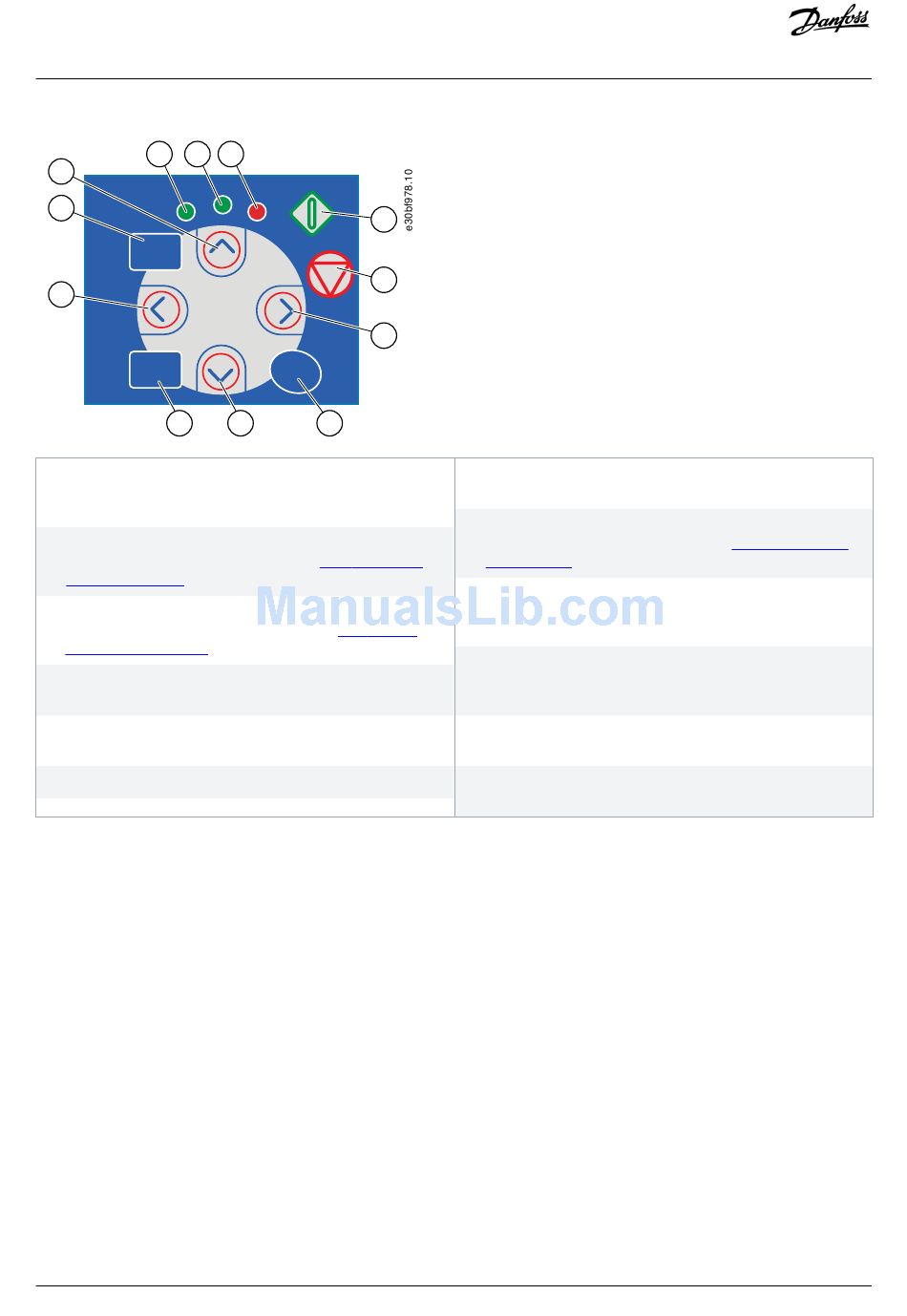

A The [ready] LED is on when the AC power is connected to the
drive and no faults are active. At the same time, the drive
status indication shows READY.
C The [fault] LED blinks when the AC drive is stopped because
of dangerous conditions (Fault Trip). See
Active Faults Menu.
E The Stop button. The button stops the motor (unless the stop
is disabled by the parameter R3.4/R3.6). See
Control Parameters M3.
G The [enter] button. Use it to accept a selection, reset the fault
history (push for 2–3 s).
I The [select] button. Use it to move between 2 last displays, for
example, to see how new value changes some other value.
K The [reset] button. Use it to reset a fault.
Illustration 2: Keypad Buttons for VACON
24 | Danfoss A/S © 2018.06
C
D
E
F
enter
H G
8.5.1 Finding the
8.4.2 Keypad
®
NXP
B The [run] LED is on when the drive operates. The LED blinks
when the Stop button is pushed and the drive ramps down.
D The Start button. When the keypad is the active control
mode, this button starts the motor. See
Control Mode.
F The Menu button Right. Use it to move forward in the menu,
move the cursor right (in the parameter menu) and to go to
the edit mode.
H The Browser button Down. Use it to scroll the main menu
and the pages of different submenus and to decrease a
value.
J The Menu button Left. Use it to move back in the menu, move
the cursor left (in the Parameter menu).
L The Browser button Up. Use it to scroll the main menu and
the pages of different submenus and to increase a value.
