Operating guide | VACON® NXS/NXP Air-cooled
A B C
RUN
K
L
M
A The motor is in RUN state. The indication starts to blink when
a stop command is given and blinks while the speed
continues to decrease.
C The motor rotation direction is reverse.
E The AC power is on.
G A fault is given and the AC drive is stopped.
I The control panel is the active control mode.
K The location indication. The line shows the symbol and
number of the menu, parameter and so on. For example,
M2 = Menu 2 (Parameters) or P2.1.3 = Acceleration time.
M The value line. The line shows the numerical and text values
of references, parameters and so on. It also shows the
number of submenus that are available in each menu.

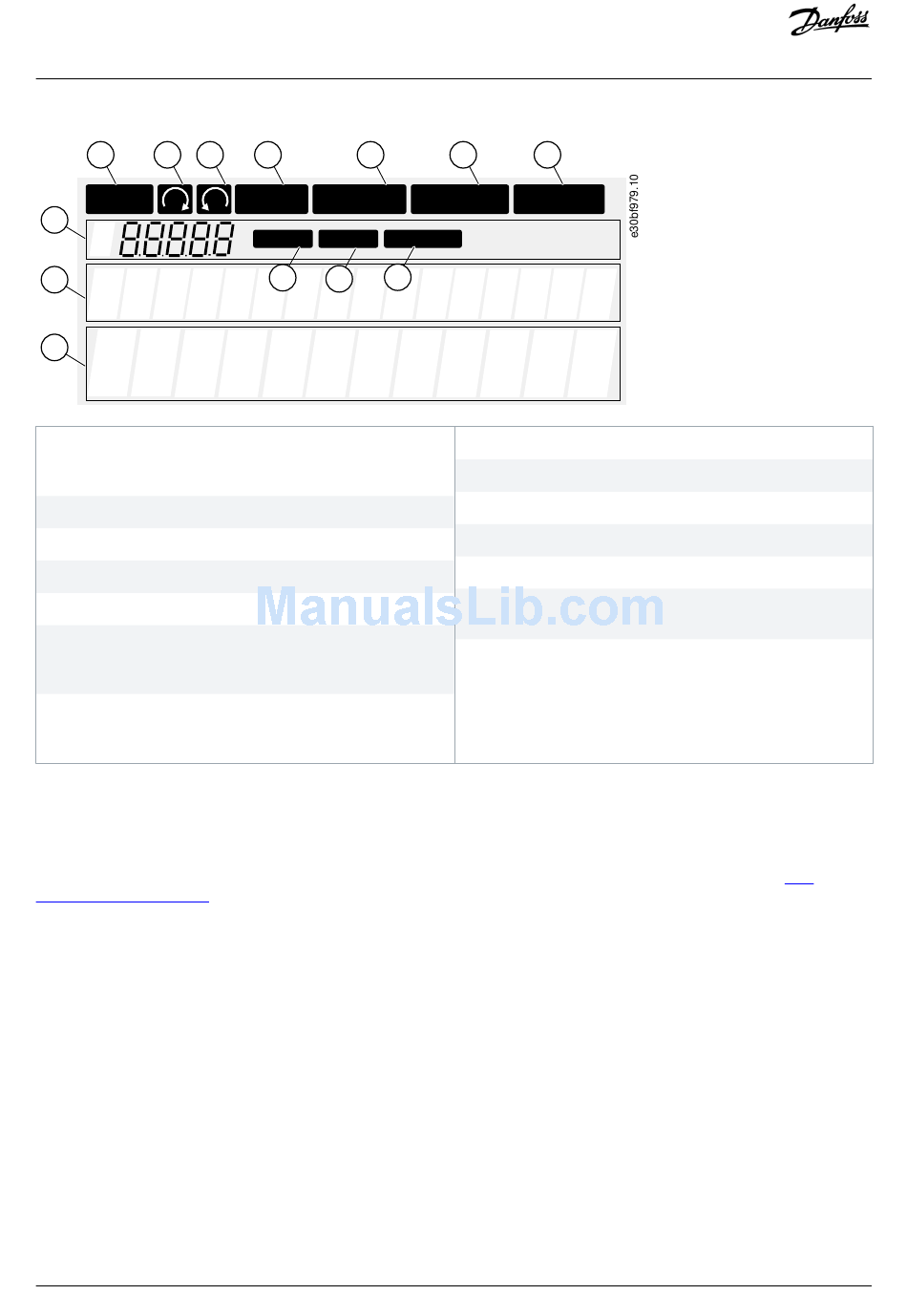

Illustration 4: Display Indications
The drive status indicators (A-G) give information about the status of the motor and the AC drive.
The control mode indications (H, I, J) show the selection of the control mode. The control mode tells from where the START/STOP
commands are given and reference values are changed. To make this selection, go to the Keypad control menu (M3) (see
Changing the Control Mode).
The three text lines (K, L, M) give information about the current location in the menu structure and the operation of the drive.

3.8.4 Basic Menu Structure

The data of the AC drive is in menus and submenus. The figure shows the basic menu structure of the AC drive.
This menu structure is only an example and the contents and items can vary depending on the application in use.
26 | Danfoss A/S © 2018.06
D E
STOP
READY
I/O term Keypad Bus/Comm
H J
I
F G
FAULT
ALARM
B The motor rotation direction is forward.
D The drive does not operate.
F An alarm is given.
H The I/O terminals is the active control mode.
J The fieldbus is the active control mode.
L The description line. The line shows the description of the
menu, value, or fault.
Product Overview
8.4.3
DPD00910G
