Operating guide | VACON® NXS/NXP Air-cooled Electrical Installation

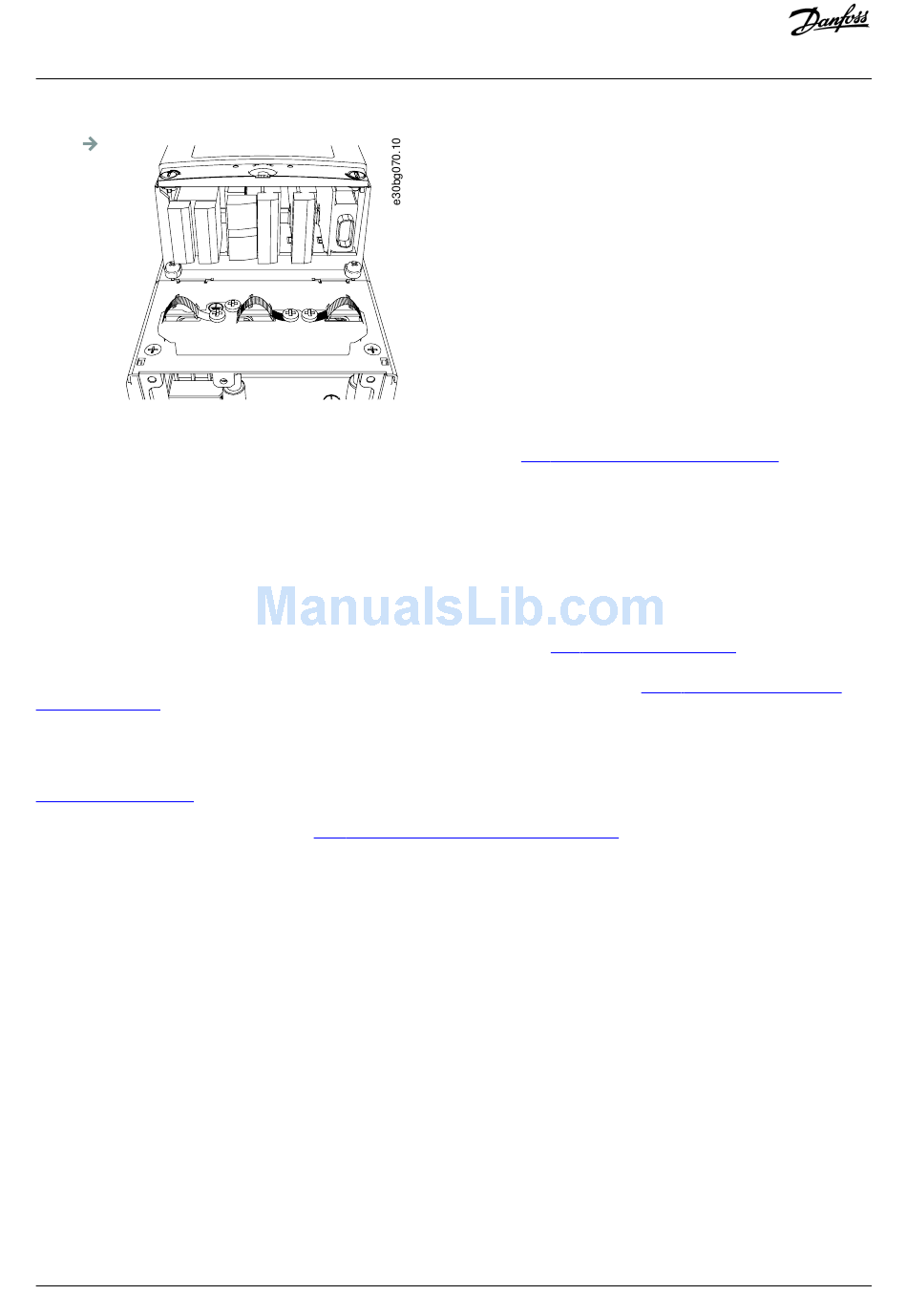

Illustration 22: FR4-FR6
8. Attach the cover of the drive. For the tightening torques of the screws, see 12.5 Tightening Torques for Cover Screws. Make sure
that the control cables or the cables of the AC drive are not caught between the frame and the cable cover.

6.5.3 Installing the Cables, FR7

Context:
Follow these instructions to install the cables and cable accessories.'
For information on how to comply with the UL regulations in cable installation, see 6.1.2 UL Standards on Cabling.
®
If it is necessary to connect an external brake resistor, see VACON Brake Resistor Manual. See also 8.7.8.2 Setting the Internal Brake
Resistor Connection.
Prerequisites:
Make sure that the delivery contains all necessary components. For the installation, the contents of the accessories bag is needed, see
4.1 Checking the Delivery.
Open the covers according to instructions in 6.4.4 Get Access and Locate the Terminals for FR7.
