Operating guide | VACON® NXS/NXP Air-cooled
Procedure
1. After removing the packaging, examine the drive for transport damages.
If the drive was damaged during the shipping, speak to the cargo insurance company or the carrier.
2. To make sure that the delivery is correct, compare the order data to the data on the package label, see
If the delivery does not agree with the order, speak to the vendor immediately.
3. To make sure that the contents of the delivery is correct and complete, compare the type code of the product to the type code, see
3.4 Description of the Type

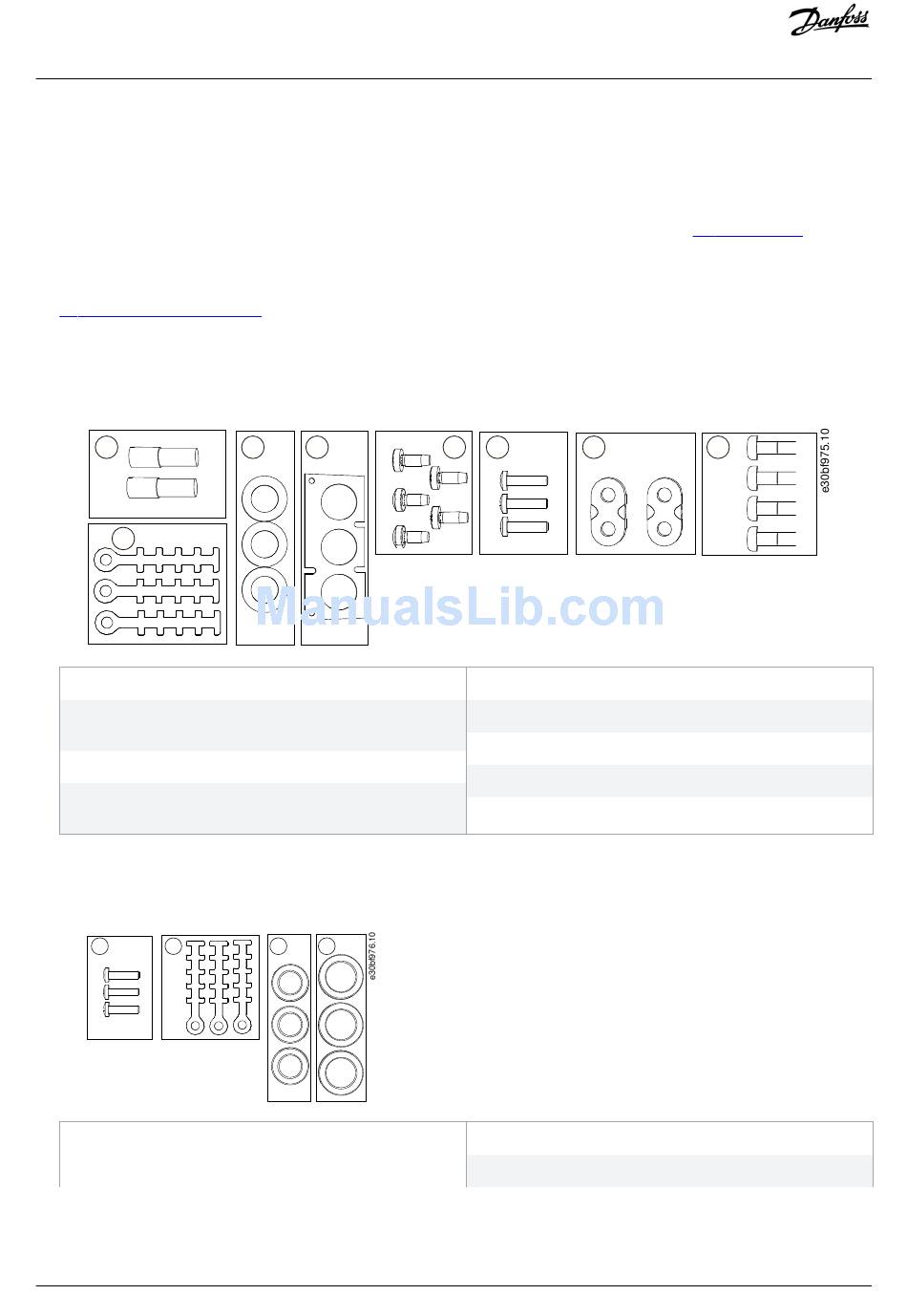

4. Check that the accessories bag contains the items shown in the figure. These accessories are part of the electrical installation. The
contents of the accessories bag is different for different enclosure sizes and protection ratings.
FR4-FR6
1
2
1 The grounding terminals (FR4, FR5), 2 pieces
3 The rubber grommets (sizes vary from class to class),
3 pieces
5 Screws, M4x10, 5 pieces
7 The grounding clamps for grounding conductor (FR6), 2
pieces
Illustration 6: Contents of the Accessories Bag for FR4-FR6
FR7-8
2
1
1 Screws, M4x16, 3 pieces
Danfoss A/S © 2018.06
Code.
3 4
3 4
5 6 7
2 The grounding clamps for control cable, 3 pieces
4 The cable entry plate
6 Screws, M4x16, 3 pieces
8 The grounding screws M5x16 (FR6), 4 pieces
2 The grounding clamps for control cable, 3 pieces
4 The rubber grommets GDM36 (FR7), 3 pieces
Receiving the Delivery
3.3 Package Label.
8
DPD00910G | 29
