Spectralink IP-DECT Server 200/400/6500 Installation and Configuration Guide

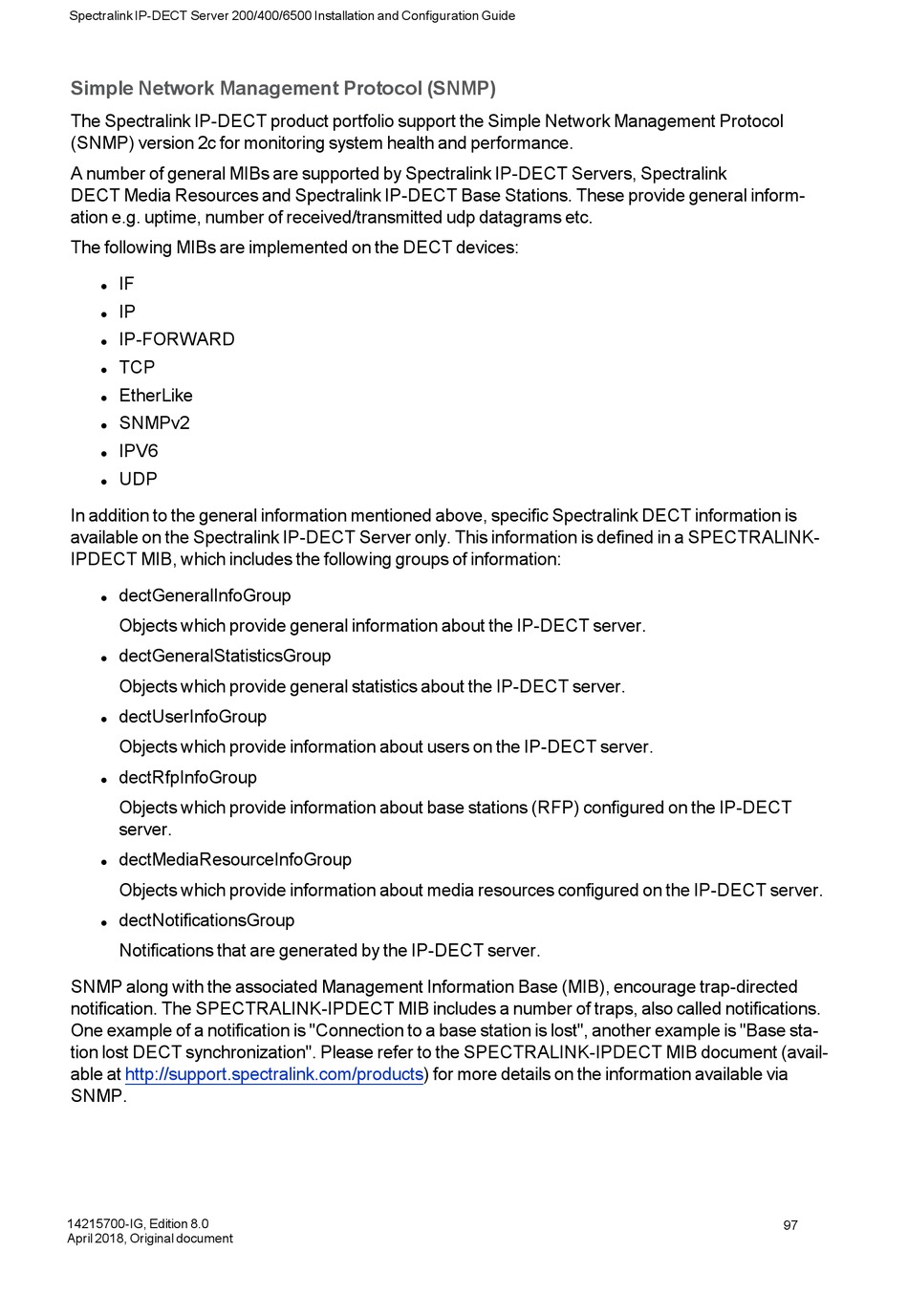

Simple Network Management Protocol (SNMP)

The Spectralink IP-DECT product portfolio support the Simple Network Management Protocol
(SNMP) version 2c for monitoring system health and performance.
A number of general MIBs are supported by Spectralink IP-DECT Servers, Spectralink
DECT Media Resources and Spectralink IP-DECT Base Stations. These provide general inform-
ation e.g. uptime, number of received/transmitted udp datagrams etc.
The following MIBs are implemented on the DECT devices:
IF
l
IP
l
IP-FORWARD
l
TCP
l
EtherLike
l
SNMPv2
l
IPV6
l
UDP
l
In addition to the general information mentioned above, specific Spectralink DECT information is
available on the Spectralink IP-DECT Server only. This information is defined in a SPECTRALINK-
IPDECT MIB, which includes the following groups of information:
dectGeneralInfoGroup
l
Objects which provide general information about the IP-DECT server.
dectGeneralStatisticsGroup
l
Objects which provide general statistics about the IP-DECT server.
dectUserInfoGroup
l
Objects which provide information about users on the IP-DECT server.
dectRfpInfoGroup
l
Objects which provide information about base stations (RFP) configured on the IP-DECT
server.
dectMediaResourceInfoGroup
l
Objects which provide information about media resources configured on the IP-DECT server.
dectNotificationsGroup
l
Notifications that are generated by the IP-DECT server.
SNMP along with the associated Management Information Base (MIB), encourage trap-directed
notification. The SPECTRALINK-IPDECT MIB includes a number of traps, also called notifications.
One example of a notification is "Connection to a base station is lost", another example is "Base sta-
tion lost DECT synchronization". Please refer to the SPECTRALINK-IPDECT MIB document (avail-
able at http://support.spectralink.com/products) for more details on the information available via
SNMP.
14215700-IG, Edition 8.0
April 2018, Original document
97
