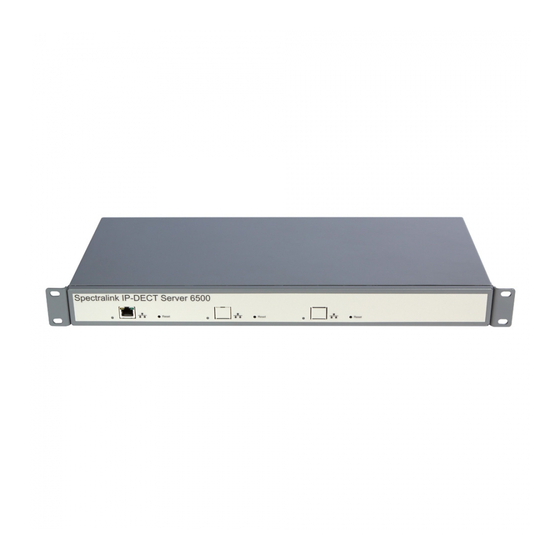

Spectralink IP-DECT Server 400/6500 and Spectralink DECT
Server 2500/8000
Interoperability Guide
Cisco Unified Communications Manager (CUCM)
3rd party SIP installation
14205603-IG, Edition 3.0
July 2017, Original document

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-DECT Server 400 and is the answer not in the manual?

Questions and answers

Related Manuals for SpectraLink IP-DECT Server 400

Summary of Contents for SpectraLink IP-DECT Server 400

  • Page 1 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Cisco Unified Communications Manager (CUCM) 3rd party SIP installation 14205603-IG, Edition 3.0 July 2017, Original document...
  • Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.

  • Page 3: Table Of Contents

    About This Guide Infrastructure Version Information Related Documentation Feature List Spectralink IP-DECT/DECT Server Configuring the Spectralink IP-DECT/DECT Server General Settings SIP Settings Enabling Feature Codes for Use of the Call forward Unconditional Feature Adding Users and Handsets To Add Users to the IP-DECT/DECT Server from the Web Based Admin-...

  • Page 4: About This Guide

    CUCM device names manually in a CSV file in Spectralink IP-DECT Server format to be imported to the Spectralink IP-DECT Server. export user data from the Spectralink IP-DECT Server in a CSV file in CUCM format to be imported directly to the CUCM For more information, see the relevant Interoperability Guide.

  • Page 5: Infrastructure Version Information

    Interoperability testing between the Spectralink IP-DECT/DECT Server and the CUCM was conducted using version 11.0 of the Cisco Unified Communications Manager and firmware PCS16F of the Spectralink IP-DECT Server and PCS16C of the Spectralink DECT Server. To support the configuration described in this guide, the Spectralink IP-DECT/DECT Server must have firmware version (400/6500 PCS16F or 2500/8000 PCS16C_) or newer.

  • Page 6: Related Documentation

    Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Related Documentation All Spectralink documents are available at http://support.spectralink.com/. Subject Documentation Cisco Unified Communications Man- Navigate to the Cisco documentation site for the latest ager Cisco documentation. Spectralink Handset...

  • Page 7: Feature List

    Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Feature List The following features are supported: Supported features Telephony Basic Calling Call Hold Call Transfer Call Waiting Call Forward Message Waiting Directed Call Park SIP over UDP Call Completed Elsewhere...

  • Page 8: Spectralink Ip-Dect/Dect Server

    Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Spectralink IP-DECT/DECT Server Below is a description of how to configure the Spectralink IP-DECT/DECT Server and how to add users and handsets to the system. Configuring the Spectralink IP-DECT/DECT Server General Settings 1.
  • Page 9 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Field Setting SIP Configuration - Proxies Proxies If the Cluster Fully Qualified Domain Name is entered in the Default domain field, fill in the IP addresses or hostnames of the CUCM servers in prioritized order.
  • Page 10 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Example using a CUCM cluster solution: 3. Click Save, and then reboot the system. For an example of the configuration XML file from your Spectralink IP-DECT Server, see "Example of XML Configuration File" on page 25.

  • Page 11: Enabling Feature Codes For Use Of The Call Forward Unconditional Feature

    Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Enabling Feature Codes for Use of the Call forward Unconditional Feature The advanced feature, Call forward unconditional, is accessed by dialing special feature codes from the DECT handsets. To provide access to the Call forward unconditional feature, the fea- ture codes must be enabled.
  • Page 12 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Note: The Call Forward Unconditional feature can be activated permanently at subscription time by the service provider. By modifying the Rerouting Calling Search Space option, this will provide the sufficient rights for the handset to action the CFU on the CUCM.

  • Page 13: Adding Users And Handsets

    To Add Users to the IP-DECT/DECT Server from the Web Based Administration Page 1. If using Spectralink IP-DECT 400/6500, click Users, click List Users, and then click New. If using Spectralink DECT 2500/8000, click Users, click Overview, and then click New.
  • Page 14 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Field Setting Standby text (optional) A standby text is a fixed label shown in the top left part of the screen on the DECT handset when in idle state.
  • Page 15 4. When the users have been added to the Spectralink IP-DECT/DECT Server, the handsets must be DECT subscribed in order to be able to communicate with the Spectralink IP- DECT/DECT Server. Please refer to the relevant handset documentation for this.

  • Page 16: Cisco Unified Communications Manager

    DECT handsets either manually or using the Bulk Administration Tool. Each individual DECT handset must be added as a 3rd party SIP device in CUCM and the Spectralink IP-DECT/DECT Server itself will not be added and known to the CUCM.
  • Page 17 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide 4. On the Phone Security Profile Configuration page, enter relevant data in the following fields: Field Setting Device Protocol Name Enter the relevant name. Description Enter description. Enable Digest Authentication Enable.

  • Page 18: Adding Dect Handsets To Cucm Database

    Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Adding DECT Handsets to CUCM Database This section describes how to add the individual Spectralink DECT Handsets to the Cisco Unified Communications Manager. Each individual DECT handset is identified by a unique IPEI number, which is generated by the Spectralink IP-DECT/DECT Server.
  • Page 19 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Field Setting Self Service User ID (optional) Enter the relevant self service user ID, e.g. 9130 (We may use the extension number we intend for the device. This is not used by Spectralink...
  • Page 20 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide 4. Click Save. 5. Click Add New and repeat the procedure if you want to add another new end user. To Add Handsets Manually 1. Navigate to Cisco Unified CM Administration > Device > Phone.
  • Page 21 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide 3. In the Phone Type list, select Third-party SIP Device (Basic), and then click Next. 4. On the Phone Configuration page, enter relevant data in the following fields: Field...
  • Page 22 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide 5. When the data is entered, click Save, and then click OK to apply the configuration. 6. In the appearing Association Information, click Add a new DN. 14205603-IG, Edition 3.0...
  • Page 23 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide 7. On the Directory Number Configuration page, enter the relevant Directory Number in the Directory Number field. On the Directory Number Configuration page, enter the relevant Directory Number in the Directory Number field.

  • Page 24: Automated End User/Handset Provisioning Using The Bulk Administration Tool

    Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Note: It can take a while before the Spectralink IP-DECT/DECT Server sends out a regis- tration request. To speed up the registration process, either reboot the Spectralink IP- DECT/DECT Server or disable/enable the user on the Spectralink IP-DECT/DECT Server.

  • Page 25: Example Of Xml Configuration File

    Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide Example of XML Configuration File <?xml version="1.0" encoding="UTF-8" standalone="true"?> <config> <application> <enable_msf>true</enable_msf> <enable_rpc>false</enable_rpc> <internal_messaging>true</internal_messaging> <username>GW-DECT/admin</username> </application> <dect> <auth_call>true</auth_call> <encrypt_voice_data>Disabled</encrypt_voice_data> <global_tx_power>0</global_tx_power> <send_date_time>true</send_date_time> <subscription_allowed>true</subscription_allowed> </dect> <feature_codes> <call_forward> <unconditional> <disable>#21#</disable> <enable>*21*$#</enable> </unconditional>...
  • Page 26 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide </network> <rfp> <default_sync_type>radio</default_sync_type> <ptp> <transport>l2</transport> </ptp> </rfp> <security> <allow_new_media_resource>true</allow_new_media_resource> <allow_new_rfp>true</allow_new_rfp> </security> <sip> <callwaiting>true</callwaiting> <client_transaction_timeout>4000</client_transaction_timeout> <dect_detach_action>ignore</dect_detach_action> <defaultdomain>172.29.193.102</defaultdomain> <dnsmethod>arecord</dnsmethod> <dtmf> <duration>270</duration> <info>false</info> <rtp>true</rtp> <rtp_payload_type>101</rtp_payload_type> </dtmf> <gruu>true</gruu> <localport>5060</localport> <maxforwards>70</maxforwards> <media> <codecs>64,1,2,0,0,0</codecs> <ice>...
  • Page 27 Spectralink IP-DECT Server 400/6500 and Spectralink DECT Server 2500/8000 Interoperability Guide <priority3>3</priority3> <priority4>4</priority4> <weight>100</weight> <weight2>100</weight2> <weight3>100</weight3> <weight4>100</weight4> </proxy> <registration_expire>3600</registration_expire> <send_to_current_registrar>true</send_to_current_registrar> <separate_endpoint_ports>false</separate_endpoint_ports> <showstatustext>true</showstatustext> <tcp_contact_ephemeral_port>true</tcp_contact_ephemeral_port> <tls_allow_insecure>false</tls_allow_insecure> <tos>96</tos> <transport>tcp</transport> <use_sips_uri>false</use_sips_uri> <vlan_cos>3</vlan_cos> </sip> <snmp> <community>public</community> <enable>false</enable> </snmp> <upnp> <broadcast>false</broadcast> <enable>true</enable> </upnp> </config> 14205603-IG, Edition 3.0...
